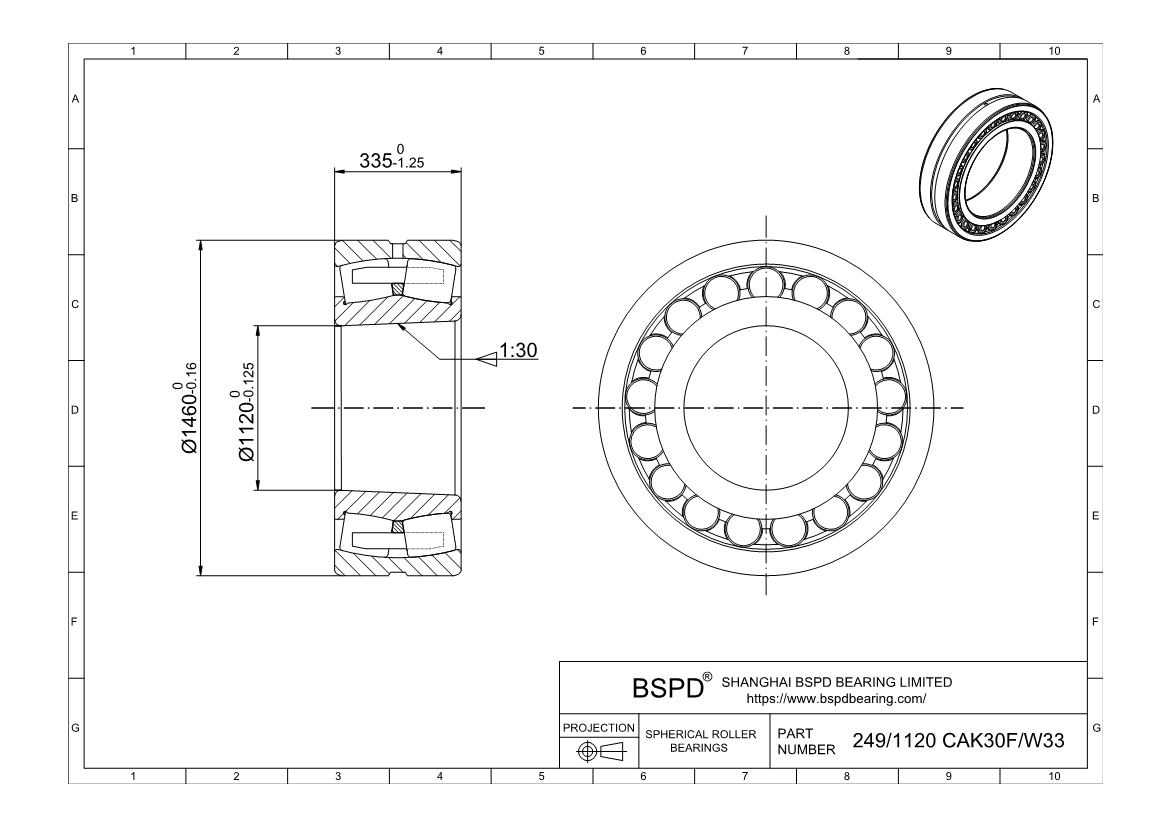

249/1120 CAK30F/W33
Spherical roller bearings
Dimensions: Bore (Inner) Diameter: 1120 mm； Outer Diameter: 1460 mm； Width (Thickness): 335 mm;
REQUEST FOR QUOTE
Product Attributes
| Product Number | 249/1120 CAK30F/W33 |
| Bore Dia (d) | 1120 mm |
| Outer Dia (D) | 1460 mm |
| Width (H) | 335 mm |
| Dynamic Load Rating (KN) | 13289 |
| Basic Load Rating (KN) | 33465 |
| Speed ratings (Reference speed)(r/min) | 140 |
| Speed ratings (Limting speed)(r/min) | 260 |
| Bearing Type | Spherical roller |
| For Load Direction | Combined Radial and Thrust |
| Single Row/Double Row | Double Row |
| weight(kg) | 1 500 |
| Seal Type | Open |
| Precision Rating | ABEC-3 P6 |
| roller Material | 52100 Chrome steel |
| Ring Material | 52100 Chrome steel |
| Cage Material | brass or steel |
| Lubrication | Required |
| Shaft Mount Type | Press Fit |
| Temperature Range | -40 to 130 ºC |
| RoHS | Compliant |
| Cylindrical or tapered holes | tapered |
Print PDF
Request a 3D CAD Model
if you need special bearings - design custom bearings
What are the types of 249/1120 CAK30F/W33 ? Spherical roller bearings Manufacturing Service . Get Your Free, Instant price, design review, stock and delivery time.
