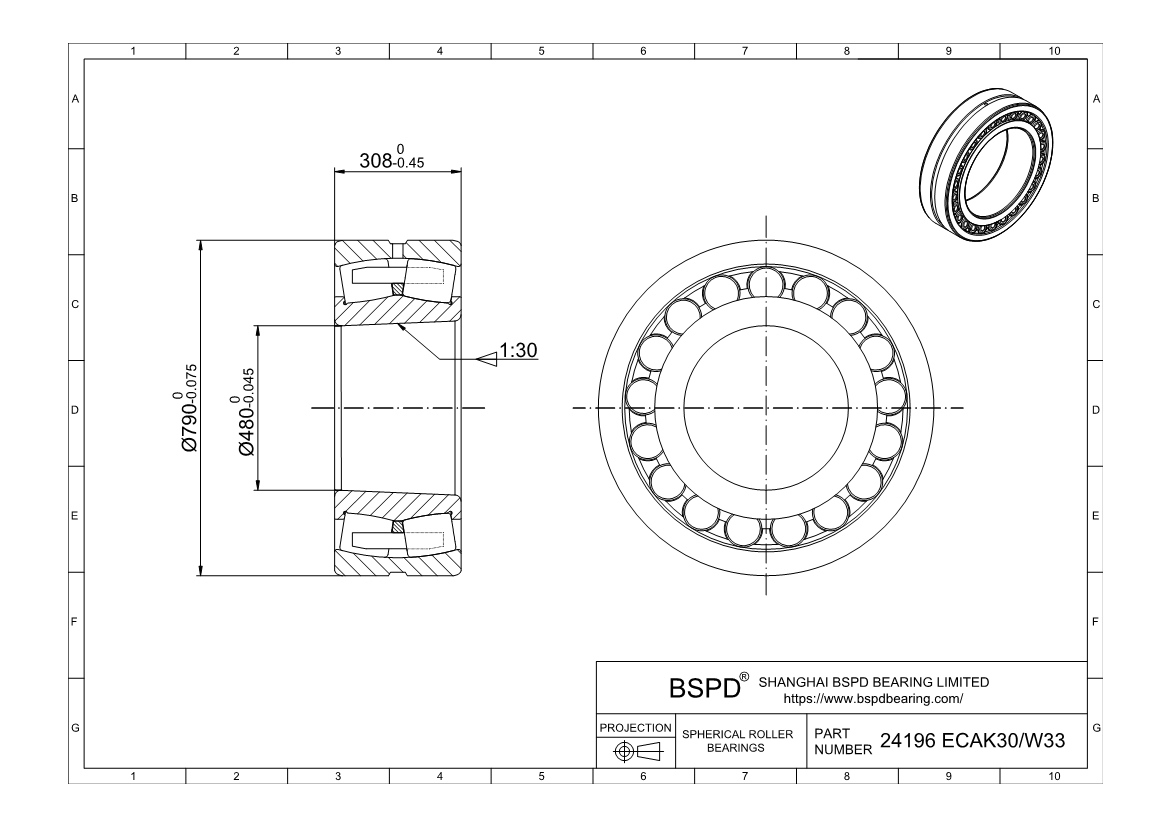

24196 ECAK30/W33
Spherical roller bearings
Dimensions: Bore (Inner) Diameter: 480 mm； Outer Diameter: 790 mm； Width (Thickness): 308 mm;
REQUEST FOR QUOTE
Product Attributes
| Product Number | 24196 ECAK30/W33 |
| Bore Dia (d) | 480 mm |
| Bore Dia Tolerance | -0.035~0 |
| Outer Dia (D) | 790 mm |
| Outer Dia Tolerance | -0.045~0 |
| Width (H) | 308 mm |
| Width Tolerance | -0.450~0 |
| Dynamic Load Rating (KN) | 8730 |
| Basic Load Rating (KN) | 15132 |
| Speed ratings (Reference speed)(r/min) | 260 |
| Speed ratings (Limting speed)(r/min) | 400 |
| Bearing Type | Spherical roller |
| For Load Direction | Combined Radial and Thrust |
| Single Row/Double Row | Double Row |
| weight(kg) | 605 |
| Seal Type | Open |
| Precision Rating | ABEC-3 P6 |
| roller Material | 52100 Chrome steel |
| Ring Material | 52100 Chrome steel |
| Cage Material | brass or steel |
| Lubrication | Required |
| Shaft Mount Type | Press Fit |
| Temperature Range | -40 to 130 ºC |
| RoHS | Compliant |
| Cylindrical or tapered holes | tapered |
