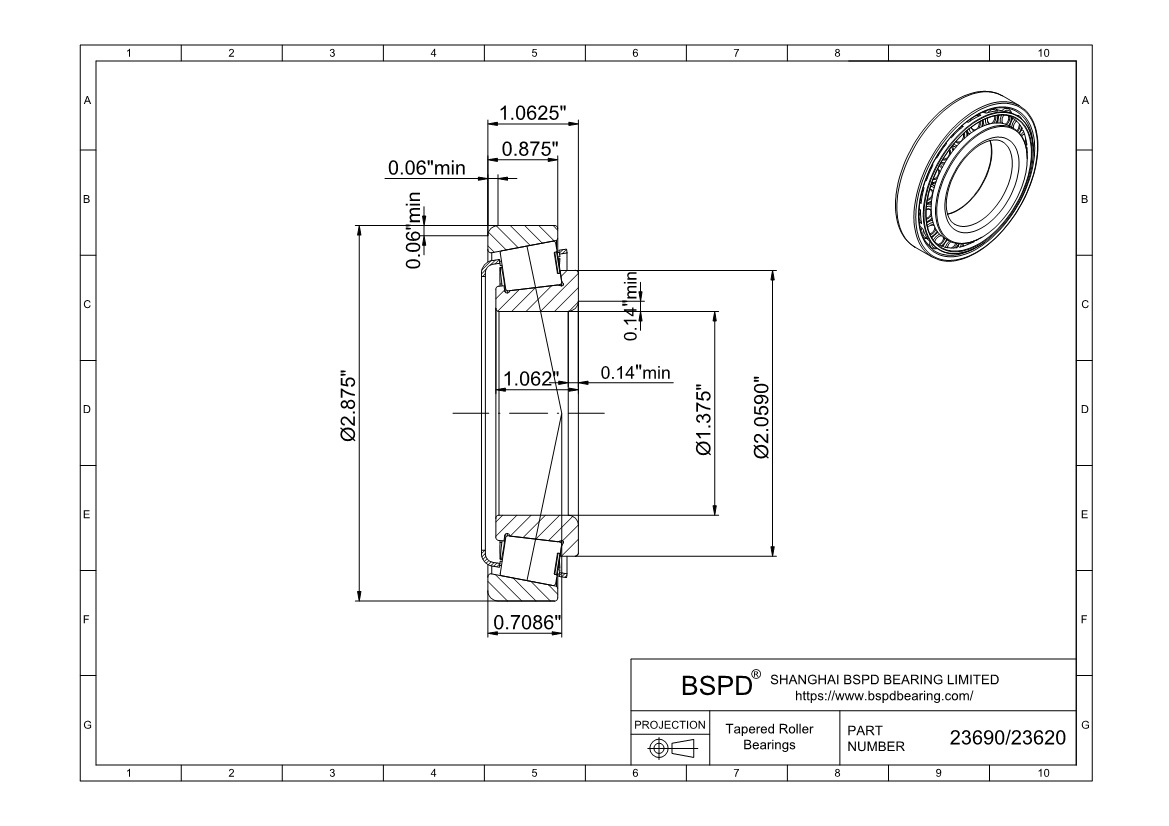

23690/23620
Inch Single Row Tapered Roller Bearings
Dimensions: Bore (Inner) Diameter: 1.3750 "； Outer Diameter: 2.8750 "； Width (Thickness): 1.0625 ";
REQUEST FOR QUOTE
Product Attributes
| Product Number | 23690/23620 |
| Bore diameter | 1.3750 " |
| Outside diameter | 2.8750 " |
| Total width | 1.0625 " |
| Shoulder diameter of inner ring | 2.0591 " |
| Widthof inner ring | 1.0620 " |
| Width of outer ring | 0.8750 " |
| Chamfer minimum dimension of inner ring (r1,2) | 3.5 mm |
| Chamfer minimum dimension of outer ring (r3,4) | 1.5 |
| Distance side face to pressure point (a) | 18 |
| Basic dynamic load rating (Cr) | 94.6 |
| Basic static load rating (Cor) | 93 |
| Fatigue load limit (Pu) | 10.4 |
| Reference speed | 8000 r/min |
| Limiting speed | 9500 r/min |
| Mass | 0.53 kg |
| Limiting value (e) | 0.37 |
| Axial load factor (Y) | 1.6 |
| Axial load factor (Y0) | 0.9 |
| Maximum diameter of shaft abutment (da) | 42 mm |
| Minimum diameter of shaft abutment (db) | 47 mm |
| Minimum diameter of housing abutment (Da) | 59 mm |
| Maximum diameter of housing abutment (Da) | 65 mm |
| Minimum diameter of housing abutment (Db) | 67 mm |
| Minimum width of space required in housing on large side face (C | 3 mm |
| Minimum width of space required in housing on small side face (C | 4.5 mm |
| Maximum Radius of shaft fillet (ra) | 3.5 mm |
| Maximum Radius of housing fillet (rb) | 1.5 mm |
