232.20.0700.013 Type 21/850.2 Metric Size Slewing Rings (2)
Dimensions: Bore (Inner) Diameter: 649.2 mm; Outer Diameter: 848 mm; Width (Thickness): 56 mm;

232.20.0700.013 Type 21/850.2
REQUEST FOR QUOTE
* *
Send
Product Attributes
Product Number232.20.0700.013 Type 21/850.2
SeriesSeries 23 25 28
GearInternal gear
TypeBall
System of MeasurementMetric
Inside Diameter Of Inner Ring649.2 mm
Outside Diameter Of Outer Ring848 mm
Internal Diameter On Outer Ring745.5 mm
Height Of Overall Bearing Assembly56 mm
External Diameter On Inner Ring742.5 mm
Ring Material42CRO or 50MN
Ball Materrial52100_Chrome_Steel
Cage MaterialNylon or 300 Series Stainless Steel
Seal MaterialNBR
Weight Of Bearing Assembly51.1 Kg
Bolt Circle In Inner Ring705 mm
Bolt Circle In Outer Ring820 mm
Diametral Pitch660 mm
Number Of Gear Teeth110
Permissible Tooth Forces T15.32
Max Gear Tooth Load Fz30.64
Diameter Of Bearing Raceway744 mm
Distance Between Bottom Outer Ring Inner Ring10.5 mm

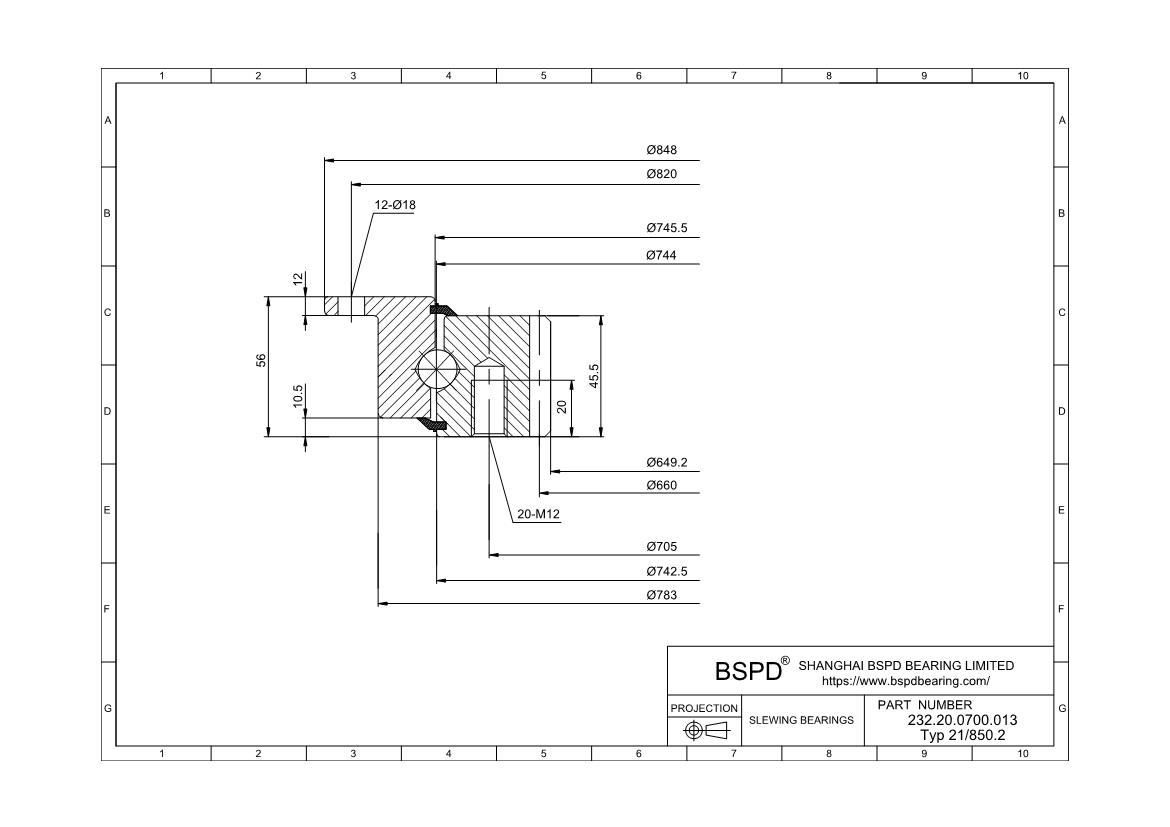

CorrespondFIG2
k·m-0.6
n14
Bolt Size (M)12 mm
T20
M6
F45.5 mm
RoHSCompliant
232.20.0700.013 Type 21/850.2
Print PDF
Request a 3D CAD Model if you need special bearings - design custom bearings
