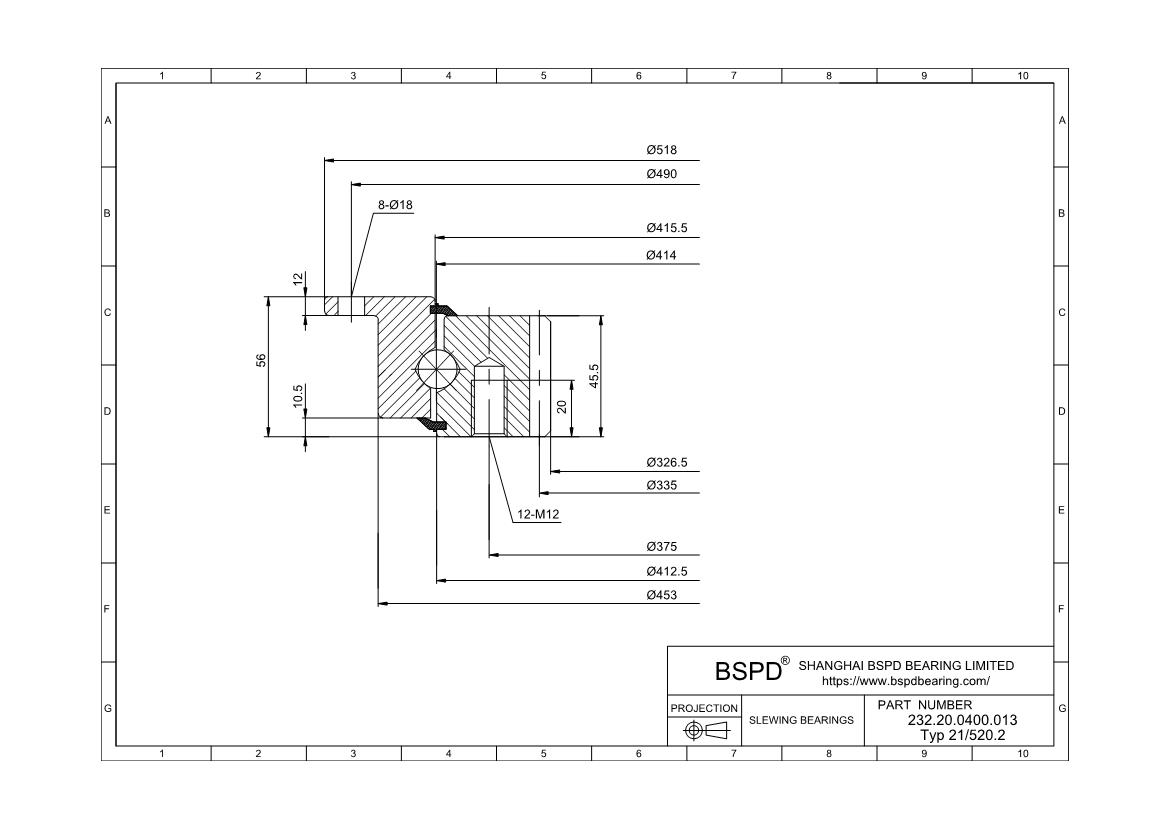

232.20.0400.013 Type 21/520.2
Metric Size Slewing Rings (2)
Dimensions: Bore (Inner) Diameter: 326.5 mm； Outer Diameter: 518 mm； Width (Thickness): 56 mm;
REQUEST FOR QUOTE
Product Attributes
| Product Number | 232.20.0400.013 Type 21/520.2 |
| Series | Series 23 25 28 |
| Gear | Internal gear |
| Type | Ball |
| System of Measurement | Metric |
| Inside Diameter Of Inner Ring | 326.5 mm |
| Outside Diameter Of Outer Ring | 518 mm |
| Internal Diameter On Inner Ring | 453 mm |
| Internal Diameter On Outer Ring | 415.5 mm |
| Height Of Overall Bearing Assembly | 56 mm |
| External Diameter On Inner Ring | 412.5 mm |
| Ring Material | 42CRO or 50MN |
| Ball Materrial | 52100_Chrome_Steel |
| Cage Material | Nylon or 300 Series Stainless Steel |
| Seal Material | NBR |
| Weight Of Bearing Assembly | 27.1 Kg |
| Bolt Circle In Inner Ring | 375 mm |
| Bolt Circle In Outer Ring | 490 mm |
| Diametral Pitch | 335 mm |
| Number Of Gear Teeth | 67 |
| Permissible Tooth Forces T | 13.54 |
| Max Gear Tooth Load Fz | 27.08 |
| Diameter Of Bearing Raceway | 414 mm |
| Distance Between Bottom Outer Ring Inner Ring | 10.5 mm |
| Correspond | FIG2 |
| k·m | -0.75 |
| n1 | 4 |
| Bolt Size (M) | 12 mm |
| T | 20 |
| M | 5 |
| F | 0.75 mm |
| RoHS | Compliant |
Print PDF
Request a 3D CAD Model
if you need special bearings - design custom bearings
What are the types of Slewing Bearings 232.20.0400.013 Type 21/520.2 ? Metric Size Slewing Rings (2) Manufacturing Service . Get Your Free, Instant price, design review, stock and delivery time.
Min.Order Quantity:NegotiationPrice:Negotiation
