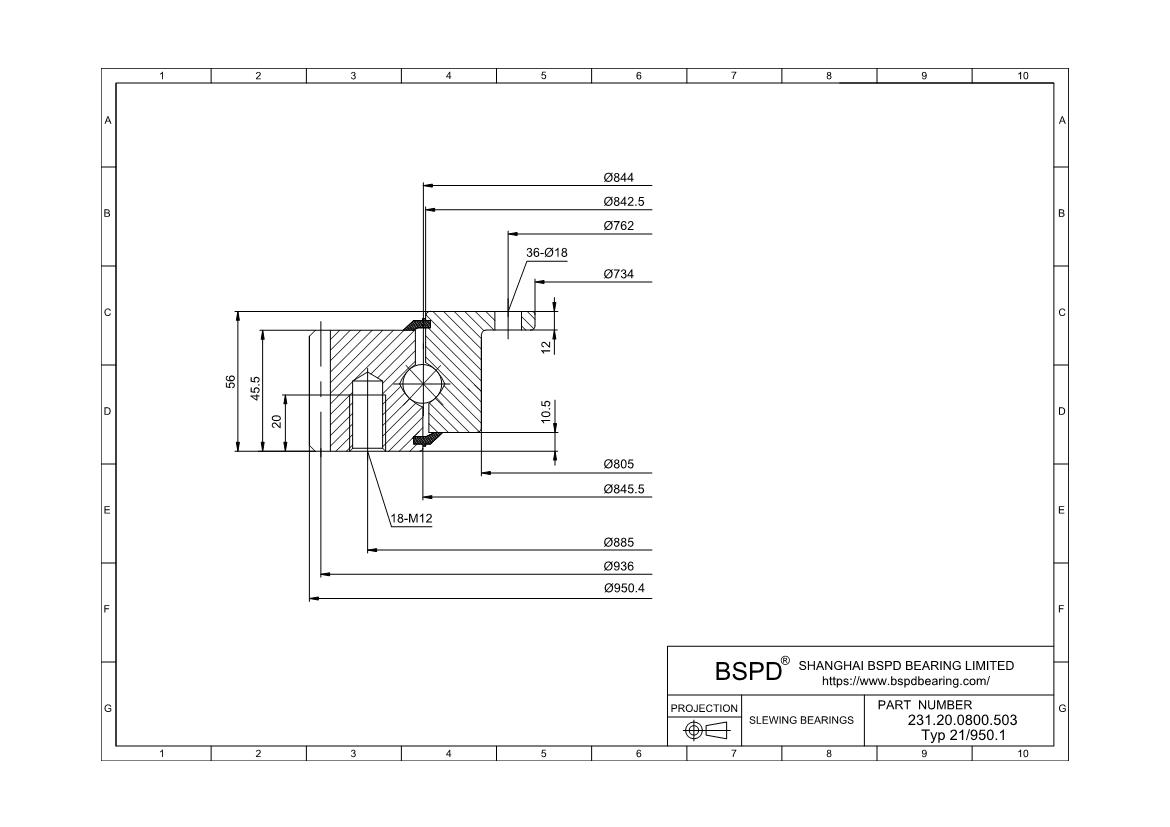

231.20.0800.503 Type 21/950.1
Metric Size Slewing Rings (2)
Dimensions: Bore (Inner) Diameter: 734 mm； Outer Diameter: 950.4 mm； Width (Thickness): 56 mm;
REQUEST FOR QUOTE
Product Attributes
| Product Number | 231.20.0800.503 Type 21/950.1 |
| Series | Series 23 25 28 |
| Gear | External gear |
| Type | Ball |
| System of Measurement | Metric |
| Inside Diameter Of Inner Ring | 734 mm |
| Outside Diameter Of Outer Ring | 950.4 mm |
| Internal Diameter On Inner Ring | 805 mm |
| Internal Diameter On Outer Ring | 845.5 mm |
| Height Of Overall Bearing Assembly | 56 mm |
| External Diameter On Inner Ring | 842.5 mm |
| Ring Material | 42CRO or 50MN |
| Ball Materrial | 52100_Chrome_Steel |
| Cage Material | Nylon or 300 Series Stainless Steel |
| Seal Material | NBR |
| Weight Of Bearing Assembly | 64.7 Kg |
| Bolt Circle In Inner Ring | 762 mm |
| Bolt Circle In Outer Ring | 885 mm |
| Size Of Hole In Inner Ring | 18 mm |
| Size Of Hole In Outer Ring | 18 mm |
| Diametral Pitch | 936 mm |
| Number Of Gear Teeth | 117 |
| Permissible Tooth Forces T | 18.93 |
| Max Gear Tooth Load Fz | 37.86 |
| Diameter Of Bearing Raceway | 844 mm |
| Distance Between Bottom Outer Ring Inner Ring | 10.5 mm |
| Correspond | FIG4 |
| k·m | -0.8 |
| n1 | 4 |
| M | 8 |
| F | 45.5 mm |
| RoHS | Compliant |
Print PDF
Request a 3D CAD Model
if you need special bearings - design custom bearings
What are the types of Slewing Bearings 231.20.0800.503 Type 21/950.1 ? Metric Size Slewing Rings (2) Manufacturing Service . Get Your Free, Instant price, design review, stock and delivery time.
Min.Order Quantity:NegotiationPrice:Negotiation
- Fast Delivery √
- Best Quality √
- Good Price √
