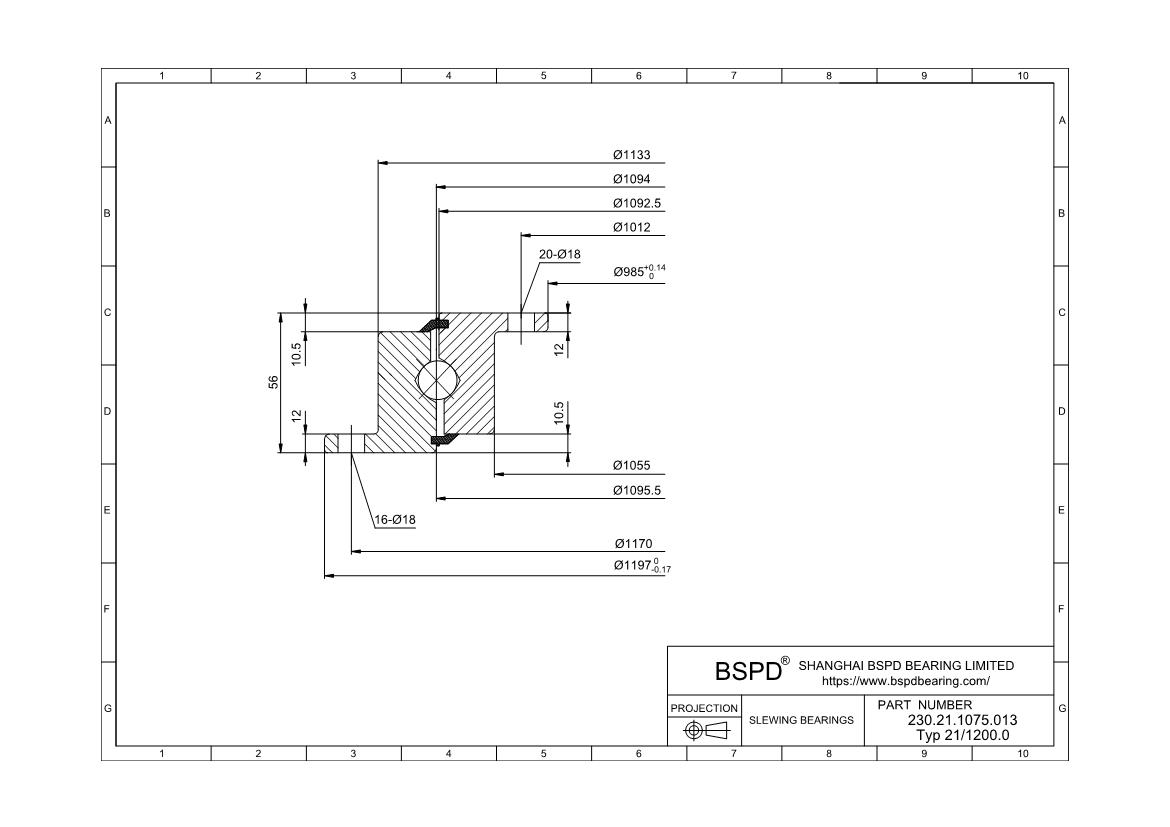

230.21.1075.013 Type 21/1200.0
Metric Size Slewing Rings (2)
Dimensions: Bore (Inner) Diameter: 985 mm； Outer Diameter: 1197 mm； Width (Thickness): 56 mm;
REQUEST FOR QUOTE
Product Attributes
| Product Number | 230.21.1075.013 Type 21/1200.0 |
| Series | Series 23 25 28 |
| Gear | Without gear |
| Type | Ball |
| System of Measurement | Metric |
| Inside Diameter Of Inner Ring | 985 mm |
| Outside Diameter Of Outer Ring | 1197 mm |
| Internal Diameter On Inner Ring | 1055 mm |
| Internal Diameter On Outer Ring | 1095.5 mm |
| Height Of Overall Bearing Assembly | 56 mm |
| External Diameter On Inner Ring | 1092.5 mm |
| Ring Material | 42CRO or 50MN |
| Ball Materrial | 52100_Chrome_Steel |
| Cage Material | Nylon or 300 Series Stainless Steel |
| Seal Material | NBR |
| Weight Of Bearing Assembly | 61.9 Kg |
| Bolt Circle In Inner Ring | 1012 mm |
| Bolt Circle In Outer Ring | 1170 mm |
| Size Of Hole In Inner Ring | 18 mm |
| Size Of Hole In Outer Ring | 18 mm |
| Diameter Of Bearing Raceway | 1094 mm |
| Distance Between Bottom Outer Ring Inner Ring | 10.5 mm |
| Correspond | FIG5 |
| K | 10.5 mm |
| n1 | 4 |
| RoHS | Compliant |
Print PDF
Request a 3D CAD Model
