230.20.0600.013 Type 21/750.0
Metric Size Slewing Rings (2)
Dimensions: Bore (Inner) Diameter: 534 mm； Outer Diameter: 748 mm； Width (Thickness): 56 mm;
REQUEST FOR QUOTE
Product Attributes
| Product Number | 230.20.0600.013 Type 21/750.0 |
| Series | Series 23 25 28 |
| Gear | Without gear |
| Type | Ball |
| System of Measurement | Metric |
| Inside Diameter Of Inner Ring | 534 mm |
| Outside Diameter Of Outer Ring | 748 mm |
| Internal Diameter On Inner Ring | 605 mm |
| Internal Diameter On Outer Ring | 645.5 mm |
| Height Of Overall Bearing Assembly | 56 mm |
| External Diameter On Inner Ring | 642.5 mm |
| Ring Material | 42CRO or 50MN |
| Ball Materrial | 52100_Chrome_Steel |
| Cage Material | Nylon or 300 Series Stainless Steel |
| Seal Material | NBR |
| Weight Of Bearing Assembly | 36.4 Kg |
| Bolt Circle In Inner Ring | 18 mm |
| Bolt Circle In Outer Ring | 720 mm |
| Size Of Hole In Inner Ring | 18 mm |
| Size Of Hole In Outer Ring | 18 mm |
| Diameter Of Bearing Raceway | 644 mm |
| Distance Between Bottom Outer Ring Inner Ring | 10.5 mm |

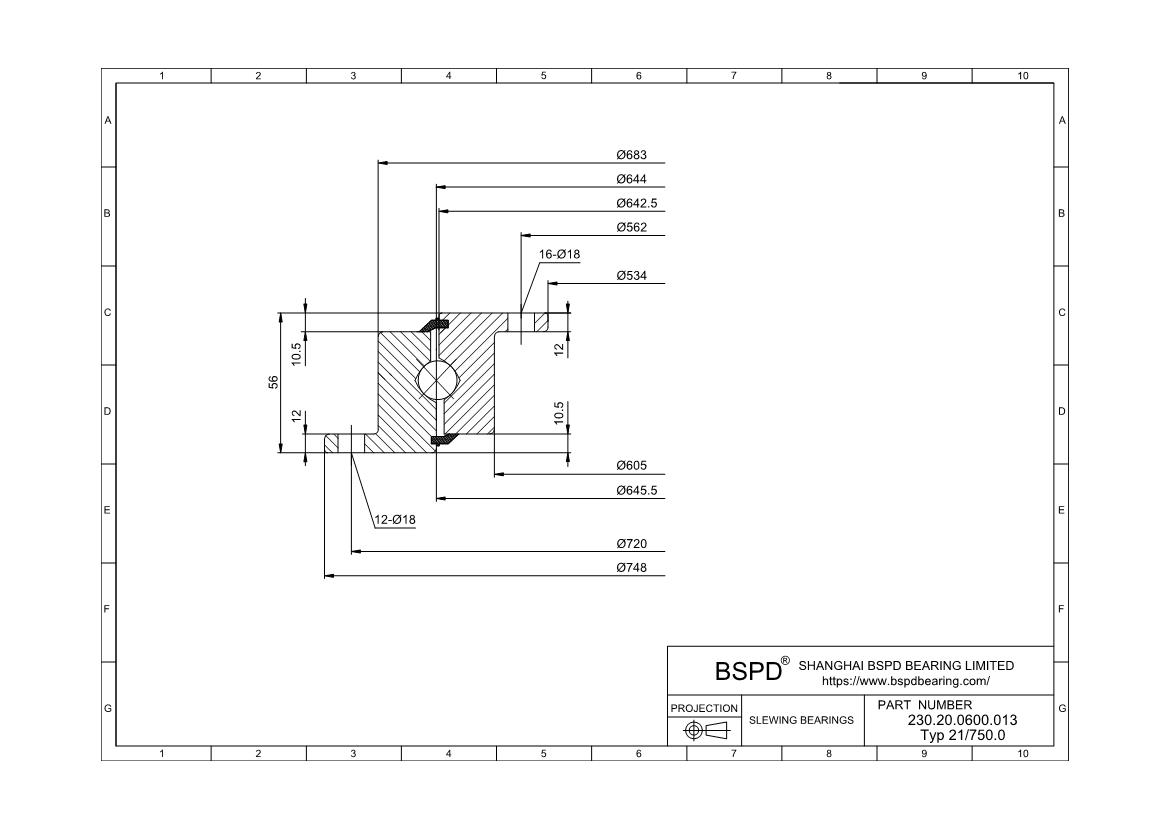

| Correspond | FIG5 |
| K | 10.5 mm |
| n1 | 4 |
| RoHS | Compliant |
Print PDF
Request a 3D CAD Model
if you need special bearings - design custom bearings
What are the types of Slewing Bearings 230.20.0600.013 Type 21/750.0 ? Metric Size Slewing Rings (2) Manufacturing Service . Get Your Free, Instant price, design review, stock and delivery time.
Min.Order Quantity:NegotiationPrice:Negotiation
