220BTR10S Angular Contact Thrust Ball Bearings

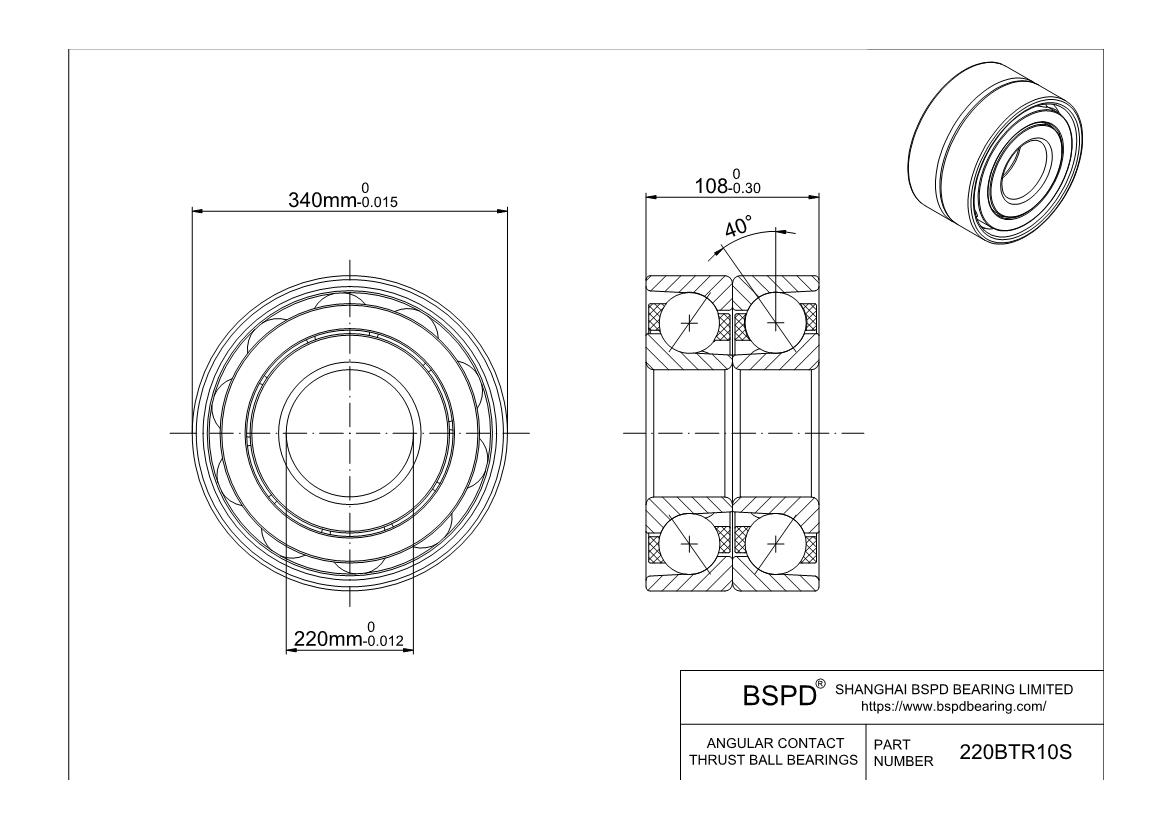

Dimensions: Bore (Inner) Diameter: 220 mm; Outer Diameter: 340 mm; Width (Thickness): 108 mm;

220BTR10S
REQUEST FOR QUOTE
* *
Send
Product Attributes
Bearing Type Ball
For Load Direction Combined Radial and Thrust
Construction Two
Single Row/Double Row Single
Seal Type Open
Precision Rating P4A (ABEC-7)
Contact Angle 40
Part Number 220BTR10S
Arrangement DB (back-to-back arrangement)
Bore Dia (d) 220 mm
Bore Dia Tolerance -0.012mm to 0
Outer Dia (D) 340 mm
Outer Dia Tolerance -0.015mm to 0
Width (B) 108 mm
Width Tolerance -0.3mm to 0
Ring Material 52100 Chrome steel
Ball Material Ceramic Ball Si3N4
Cage Material TYN (ball guided polyamide resin cage)
Dynamic Load Rating (Cr) (KN) 224
Static Load Rating (Cor) (KN) 575
Axial Load (KN) 305
Max Speed (Grease) (RPM) 2000
Max Speed (Oil) (RPM)  2700
Preload EL (extra light preload)
L (light preload)
CP (special preload)
CA (special axial clearance)
Lubrication Required
Shaft Mount Type Press Fit
Temperature Range -40 to 120 ºC
Weight (grams) 18500
RoHS Compliant
