192.50.5600.990.41.1502
Metric Size Slewing Rings (2)
Dimensions: Bore (Inner) Diameter: 5184 mm； Outer Diameter: 5865 mm； Width (Thickness): 268 mm;
REQUEST FOR QUOTE
Product Attributes
| Product Number | 192.50.5600.990.41.1502 |
| Series | Series 19 |
| Gear | Internal gear |
| Type | Roller |
| System of Measurement | Metric |
| Inside Diameter Of Inner Ring | 5184 mm |
| Outside Diameter Of Outer Ring | 5554 mm |
| Internal Diameter On Outer Ring | 5865 mm |
| Height Of Overall Bearing Assembly | 268 mm |
| Height Of Inner Ring | 258 mm |
| Height Of Outer Ring | 203 mm |
| External Diameter On Inner Ring | 5540 mm |
| Ring Material | 42CRO or 50MN |
| Ball Materrial | 52100_Chrome_Steel |
| Cage Material | Nylon or 300 Series Stainless Steel |
| Seal Material | NBR |
| Weight Of Bearing Assembly | 9317 Kg |
| Bolt Circle In Inner Ring | 5400 mm |
| Bolt Circle In Outer Ring | 5775 mm |
| Size Of Hole In Inner Ring | 45 mm |
| Size Of Hole In Outer Ring | 45 mm |
| Number Holes In Inner Ring | 90 |
| Number Holes In Outer Ring | 90 |
| Diametral Pitch | 5208 mm |
| Number Of Gear Teeth | 217 |
| Permissible Tooth Forces T | 423.6 |
| Max Gear Tooth Load Fz | 847.2 |
| Diameter Of Bearing Raceway | 5600 mm |
| Distance Between Bottom Outer Ring Inner Ring | 10 mm |

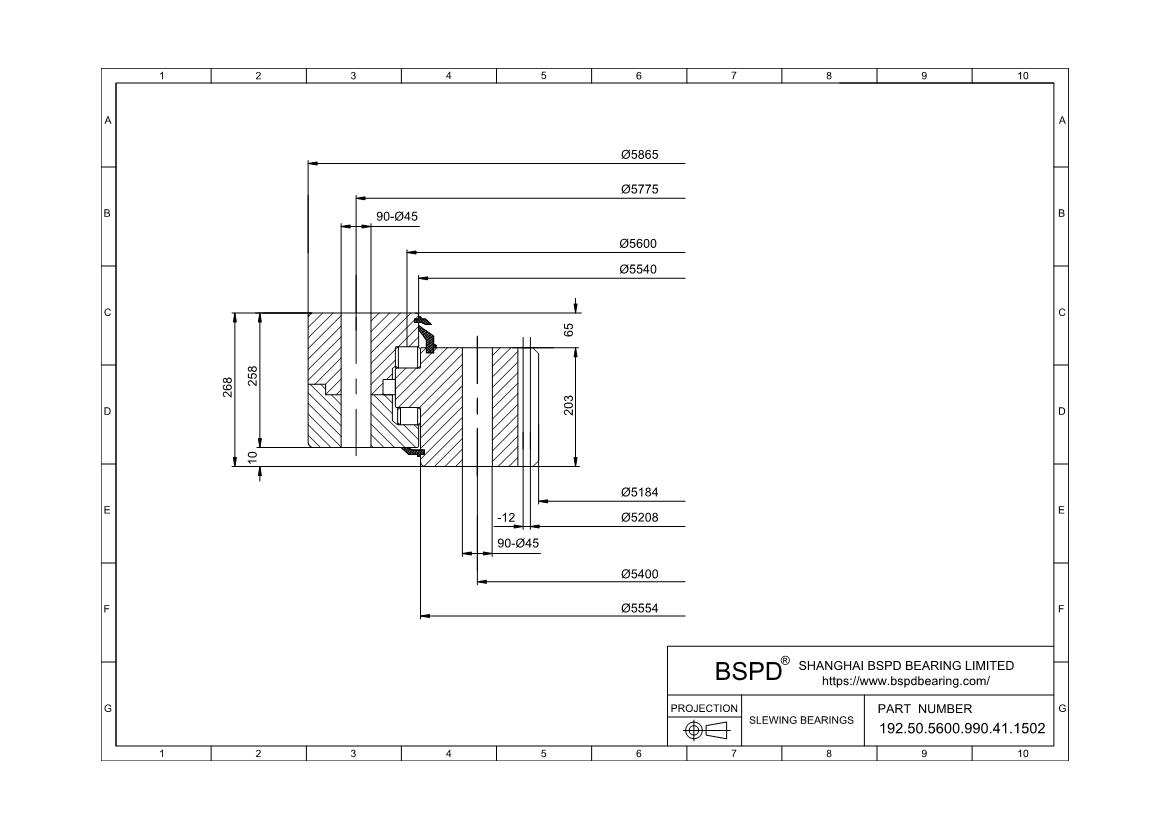

| Correspond | FIG2 |
| x·m | -12 |
| K | 65 mm |
| F19 | 5554 mm |
| n1 | 15 |
| Bolt Size (M) | 42 mm |
| M | 24 |
| F | 203 mm |
| RoHS | Compliant |
