192.50.5000.990.41.1501
Metric Size Slewing Rings (2)
Dimensions: Bore (Inner) Diameter: 4584 mm； Outer Diameter: 5265 mm； Width (Thickness): 268 mm;
REQUEST FOR QUOTE
Product Attributes
| Product Number | 192.50.5000.990.41.1501 |
| Series | Series 19 |
| Gear | Internal gear |
| Type | Roller |
| System of Measurement | Metric |
| Inside Diameter Of Inner Ring | 4584 mm |
| Outside Diameter Of Outer Ring | 4954 mm |
| Internal Diameter On Outer Ring | 5265 mm |
| Height Of Overall Bearing Assembly | 268 mm |
| Height Of Inner Ring | 258 mm |
| Height Of Outer Ring | 203 mm |
| External Diameter On Inner Ring | 4940 mm |
| Ring Material | 42CRO or 50MN |
| Ball Materrial | 52100_Chrome_Steel |
| Cage Material | Nylon or 300 Series Stainless Steel |
| Seal Material | NBR |
| Weight Of Bearing Assembly | 8182 Kg |
| Bolt Circle In Inner Ring | 4800 mm |
| Bolt Circle In Outer Ring | 5175 mm |
| Size Of Hole In Inner Ring | 45 mm |
| Size Of Hole In Outer Ring | 45 mm |
| Number Holes In Inner Ring | 78 |
| Number Holes In Outer Ring | 78 |
| Diametral Pitch | 4608 mm |
| Number Of Gear Teeth | 192 |
| Permissible Tooth Forces T | 423.6 |
| Max Gear Tooth Load Fz | 847.2 |
| Diameter Of Bearing Raceway | 5000 mm |
| Distance Between Bottom Outer Ring Inner Ring | 10 mm |

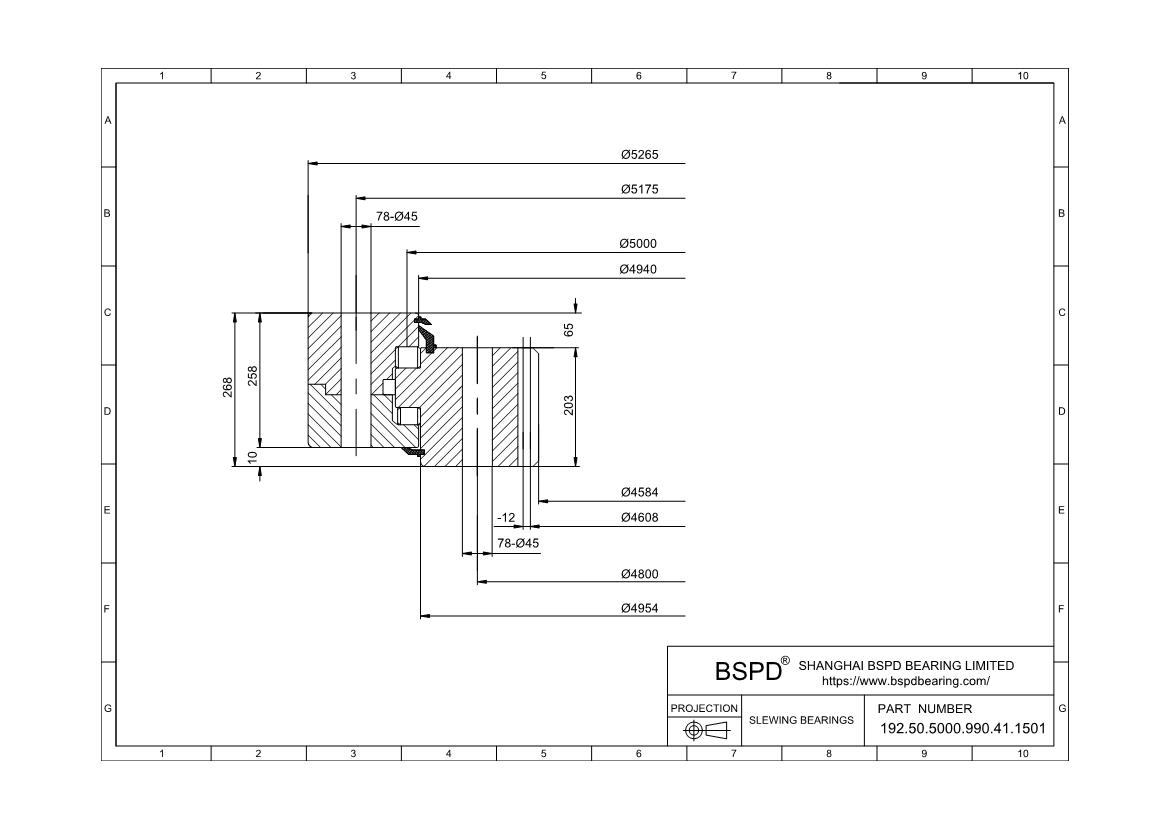

| Correspond | FIG2 |
| x·m | -12 |
| K | 65 mm |
| F19 | 4954 mm |
| n1 | 13 |
| Bolt Size (M) | 42 mm |
| M | 24 |
| F | 203 mm |
| RoHS | Compliant |
