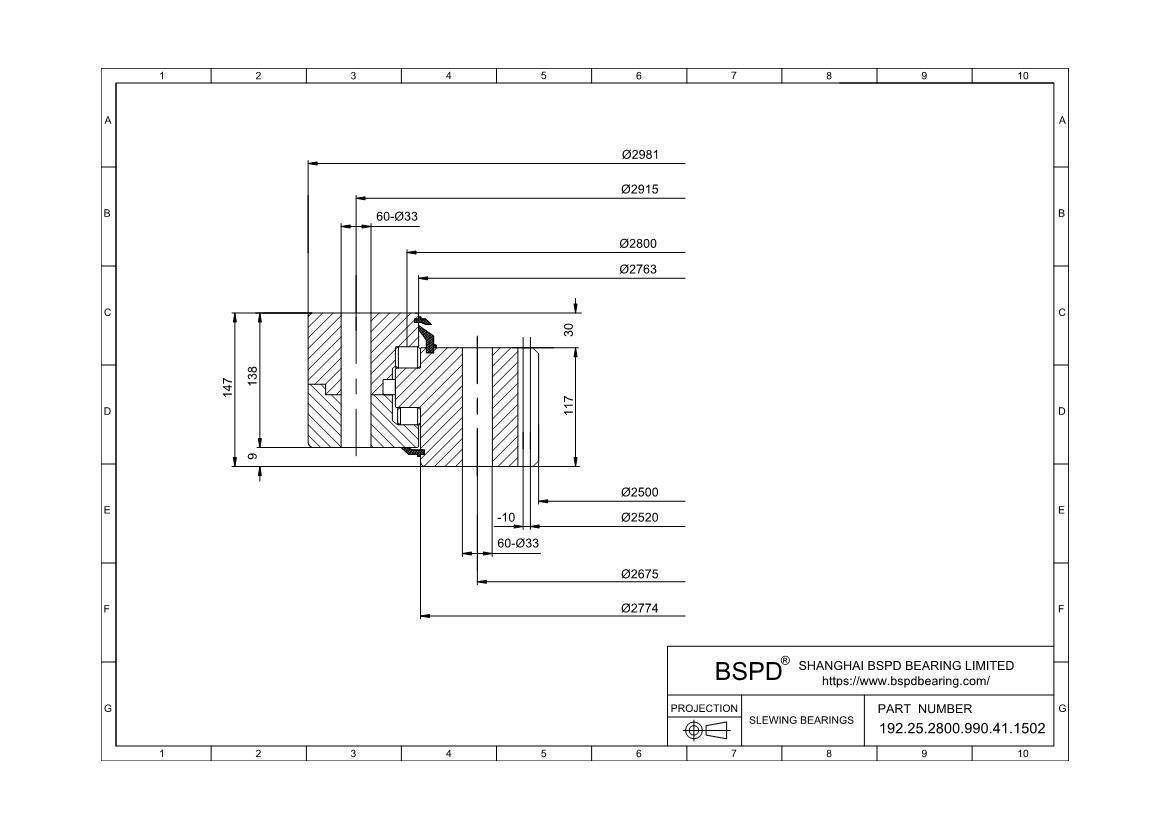

192.25.2800.990.41.1502
Metric Size Slewing Rings (2)
Dimensions: Bore (Inner) Diameter: 2500 mm； Outer Diameter: 2981 mm； Width (Thickness): 147 mm;
REQUEST FOR QUOTE
Product Attributes
| Product Number | 192.25.2800.990.41.1502 |
| Series | Series 19 |
| Gear | Internal gear |
| Type | Roller |
| System of Measurement | Metric |
| Inside Diameter Of Inner Ring | 2500 mm |
| Outside Diameter Of Outer Ring | 2774 mm |
| Internal Diameter On Outer Ring | 2981 mm |
| Height Of Overall Bearing Assembly | 147 mm |
| Height Of Inner Ring | 138 mm |
| Height Of Outer Ring | 117 mm |
| External Diameter On Inner Ring | 2763 mm |
| Ring Material | 42CRO or 50MN |
| Ball Materrial | 52100_Chrome_Steel |
| Cage Material | Nylon or 300 Series Stainless Steel |
| Seal Material | NBR |
| Weight Of Bearing Assembly | 1767 Kg |
| Bolt Circle In Inner Ring | 2675 mm |
| Bolt Circle In Outer Ring | 2915 mm |
| Size Of Hole In Inner Ring | 33 mm |
| Size Of Hole In Outer Ring | 33 mm |
| Number Holes In Inner Ring | 60 |
| Number Holes In Outer Ring | 60 |
| Diametral Pitch | 2520 mm |
| Number Of Gear Teeth | 126 |
| Permissible Tooth Forces T | 203.4 |
| Max Gear Tooth Load Fz | 406.8 |
| Diameter Of Bearing Raceway | 2800 mm |
| Distance Between Bottom Outer Ring Inner Ring | 9 mm |
| Correspond | FIG2 |
| x·m | -10 |
| K | 30 mm |
| F19 | 2774 mm |
| n1 | 10 |
| Bolt Size (M) | 30 mm |
| M | 20 |
| F | 117 mm |
| RoHS | Compliant |
