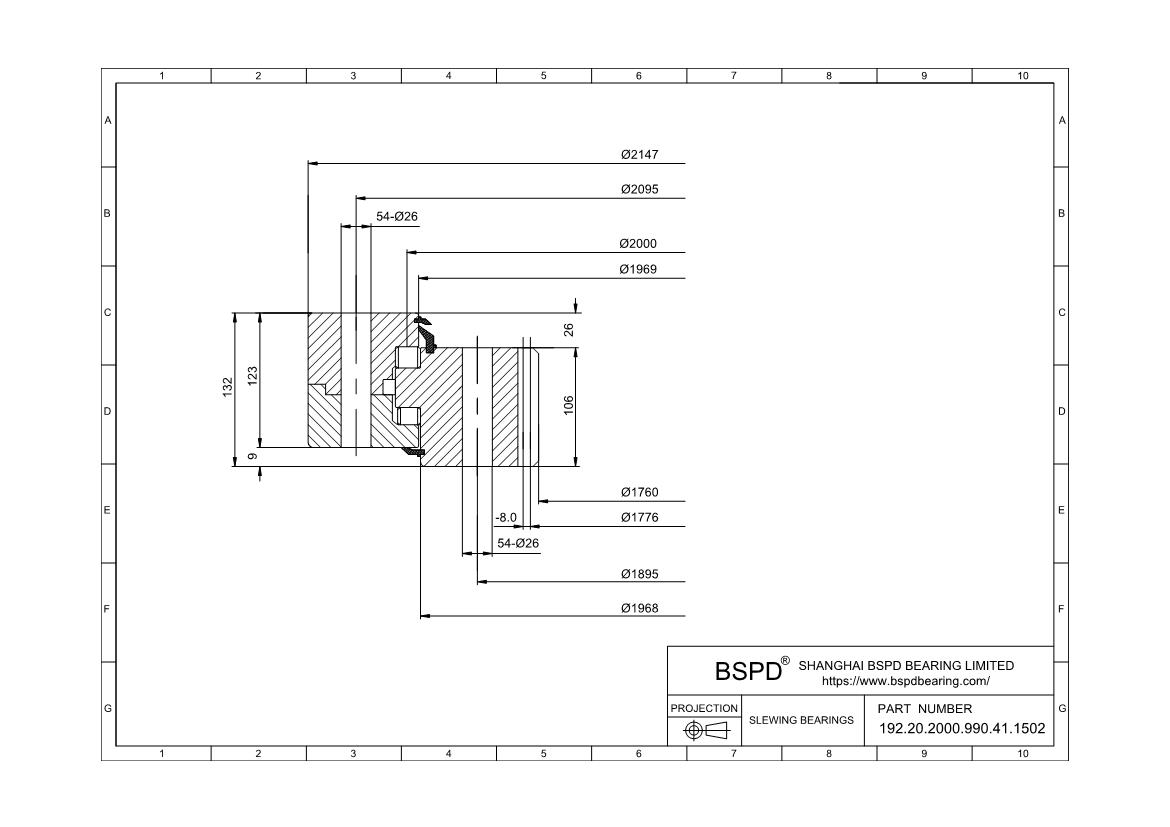

192.20.2000.990.41.1502
Metric Size Slewing Rings (2)
Dimensions: Bore (Inner) Diameter: 1760 mm； Outer Diameter: 2147 mm； Width (Thickness): 132 mm;
REQUEST FOR QUOTE
Product Attributes
| Product Number | 192.20.2000.990.41.1502 |
| Series | Series 19 |
| Gear | Internal gear |
| Type | Roller |
| System of Measurement | Metric |
| Inside Diameter Of Inner Ring | 1760 mm |
| Outside Diameter Of Outer Ring | 1968 mm |
| Internal Diameter On Outer Ring | 2147 mm |
| Height Of Overall Bearing Assembly | 132 mm |
| Height Of Inner Ring | 123 mm |
| Height Of Outer Ring | 106 mm |
| External Diameter On Inner Ring | 1969 mm |
| Ring Material | 42CRO or 50MN |
| Ball Materrial | 52100_Chrome_Steel |
| Cage Material | Nylon or 300 Series Stainless Steel |
| Seal Material | NBR |
| Weight Of Bearing Assembly | 902 Kg |
| Bolt Circle In Inner Ring | 1895 mm |
| Bolt Circle In Outer Ring | 2095 mm |
| Size Of Hole In Inner Ring | 26 mm |
| Size Of Hole In Outer Ring | 26 mm |
| Number Holes In Inner Ring | 54 |
| Number Holes In Outer Ring | 54 |
| Diametral Pitch | 1776 mm |
| Number Of Gear Teeth | 111 |
| Permissible Tooth Forces T | 155.6 |
| Max Gear Tooth Load Fz | 311.2 |
| Diameter Of Bearing Raceway | 2000 mm |
| Distance Between Bottom Outer Ring Inner Ring | 9 mm |
| Correspond | FIG2 |
| x·m | -8 |
| K | 26 mm |
| F19 | 1968 mm |
| n1 | 5 |
| Bolt Size (M) | 24 mm |
| M | 16 |
| F | 106 mm |
| RoHS | Compliant |
