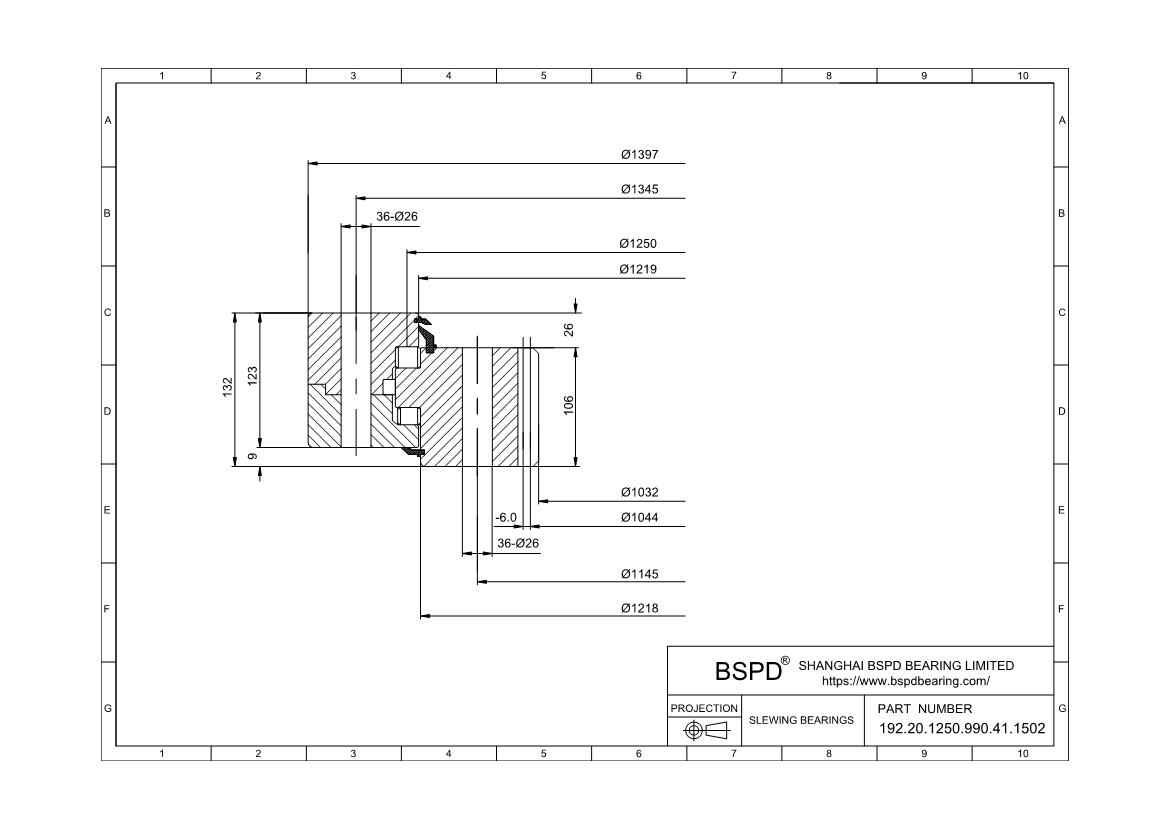

192.20.1250.990.41.1502
Metric Size Slewing Rings (2)
Dimensions: Bore (Inner) Diameter: 1032 mm； Outer Diameter: 1397 mm； Width (Thickness): 132 mm;
REQUEST FOR QUOTE
Product Attributes
| Product Number | 192.20.1250.990.41.1502 |
| Series | Series 19 |
| Gear | Internal gear |
| Type | Roller |
| System of Measurement | Metric |
| Inside Diameter Of Inner Ring | 1032 mm |
| Outside Diameter Of Outer Ring | 1218 mm |
| Internal Diameter On Outer Ring | 1397 mm |
| Height Of Overall Bearing Assembly | 132 mm |
| Height Of Inner Ring | 123 mm |
| Height Of Outer Ring | 106 mm |
| External Diameter On Inner Ring | 1219 mm |
| Ring Material | 42CRO or 50MN |
| Ball Materrial | 52100_Chrome_Steel |
| Cage Material | Nylon or 300 Series Stainless Steel |
| Seal Material | NBR |
| Weight Of Bearing Assembly | 539 Kg |
| Bolt Circle In Inner Ring | 1145 mm |
| Bolt Circle In Outer Ring | 1345 mm |
| Size Of Hole In Inner Ring | 26 mm |
| Size Of Hole In Outer Ring | 26 mm |
| Number Holes In Inner Ring | 36 |
| Number Holes In Outer Ring | 36 |
| Diametral Pitch | 1044 mm |
| Number Of Gear Teeth | 87 |
| Permissible Tooth Forces T | 116.7 |
| Max Gear Tooth Load Fz | 233.4 |
| Diameter Of Bearing Raceway | 1250 mm |
| Distance Between Bottom Outer Ring Inner Ring | 9 mm |
| Correspond | FIG2 |
| x·m | -6 |
| K | 26 mm |
| F19 | 1218 mm |
| n1 | 3 |
| Bolt Size (M) | 24 mm |
| M | 12 |
| F | 106 mm |
| RoHS | Compliant |
