16393001 Kaydon Slewing Bearings
Dimensions: Bore (Inner) Diameter: 188.583"； Outer Diameter: 209.843"； Width (Thickness): 7.047";

16393001
Slewing Bearings of similar size
same inner diameter
same outer diameter
Product Attributes
Specifications
Part Number 16393001
Moment(ft-lbs) 8903140lbs | 39746.161KN
Thrust(lbs) 1126290lbs | 5028.08KN
Radial(lbs) 1005010lbs | 4486.652KN
Maximum Allowable Gear Tooth Load (Fz) 81360lbs | 363.214KN
Bearing Types Slewing Ring Bearing

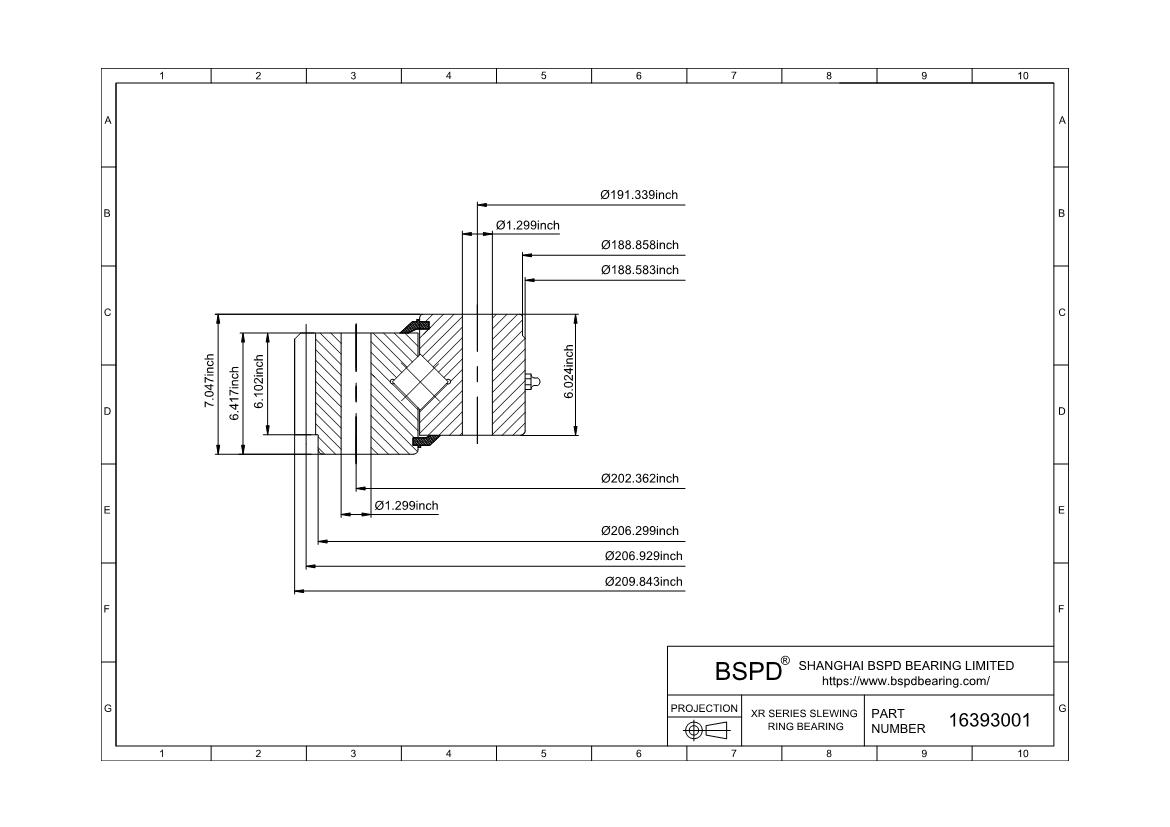

Outline Dimensions and Weight
Outside Diameter of Outer Ring (Do) 209.843" | 5330.01mm
Inside Diameter of Inner Ring (di) 188.583" | 4790.01mm
Height of overall bearing assembly(H) 7.047" | 178.99mm
Height of outer ring(Ho) 6.417" | 162.99mm
Height of inner ring(Hi) 6.024" | 153.01mm
External diameter on outer ring(Dr) 206.299" | 5239.99mm
Internal diameter on inner ring(dr) 188.858" | 4796.99mm
Approximate Weight (lbs) 9750lbs | 4422.503KG
Mounting Holes
Bolt Circle in Outer Ring (Lo) 202.362" | 5139.99mm
Number Holes in Outer Ring (no) 100
Size of hole in outer ring(Bo) 1.299
Bolt circle in inner ring(Li) 191.339" | 4860.01mm
Number Holes in Inner Ring (ni) 100
Size of hole in inner ring(Bi) 1.299
Gear Data
Pressure Angle of Gear Teeth (α) 20 º
Tooth form FD
Pitch Diameter of Gear (D2) 206.929" | 5256mm
Diametral Pitch (Pd) 18
Number of Gear Teeth(z2) 292
("+" / "-" sign increases tooth thickness at D2(X2) 1.15
Face Width of Gear Teeth(b2) 6.102
gear External
16393001
