16389001 Kaydon Slewing Bearings
Dimensions: Bore (Inner) Diameter: 69.094"； Outer Diameter: 87.992"； Width (Thickness): 6.024";

16389001
Slewing Bearings of similar size
same inner diameter
same outer diameter
Product Attributes
Specifications
Part Number 16389001
Maximum Allowable Gear Tooth Load (Fz) -
Moment Load Rating (Crm) 3,675,000ft-lbs | 16406.25KN
Bearing Types Slewing Ring Bearing

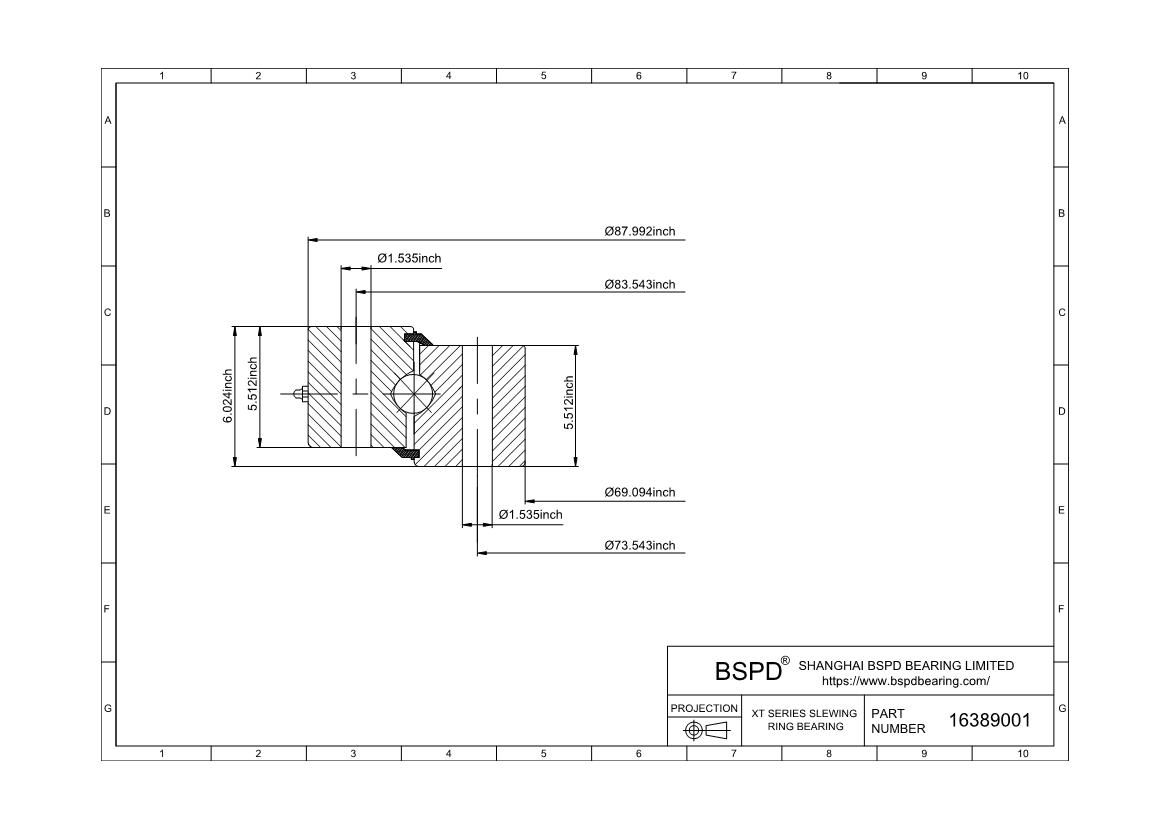

Outline Dimensions and Weight
Outside Diameter of Outer Ring (Do) 87.992" | 2235mm
Inside Diameter of Inner Ring (di) 69.094" | 1754.99mm
Height of overall bearing assembly(H) 6.024" | 153.01mm
Height of outer ring(Ho) 5.512" | 140mm
Height of inner ring(Hi) 5.512" | 140mm
External diameter on outer ring(Dr) -
Internal diameter on inner ring(dr) -
Approximate Weight (lbs) 3,330lbs | 1510.455KG
Mounting Holes
Bolt Circle in Outer Ring (Lo) 83.543" | 2121.99mm
Number Holes in Outer Ring (no) 52
Size of hole in outer ring(Bo) 1.535
Bolt circle in inner ring(Li) 73.543" | 1867.99mm
Number Holes in Inner Ring (ni) 52
Size of hole in inner ring(Bi) 1.535
Gear Data
Pressure Angle of Gear Teeth (α) 20 º
Tooth form -
Pitch Diameter (D2) -
Pd or (m) -
Number of Teeth (z2) -
Addendum modification coefficient of gear teeth(x2) -
Face width of gear teeth(b2) -
gear No gear
