16385001 Kaydon Slewing Bearings
Dimensions: Bore (Inner) Diameter: 198.0"； Outer Diameter: 228.0"； Width (Thickness): 11.75";

16385001
Slewing Bearings of similar size
same inner diameter
same outer diameter
Product Attributes
Specifications
Part Number 16385001
Maximum Allowable Gear Tooth Load (Fz) 130,700 lbs | 583.482KN
Moment Load Rating (Crm) 43,823,000ft-lbs | 195638.393KN
Bearing Types Slewing Ring Bearing

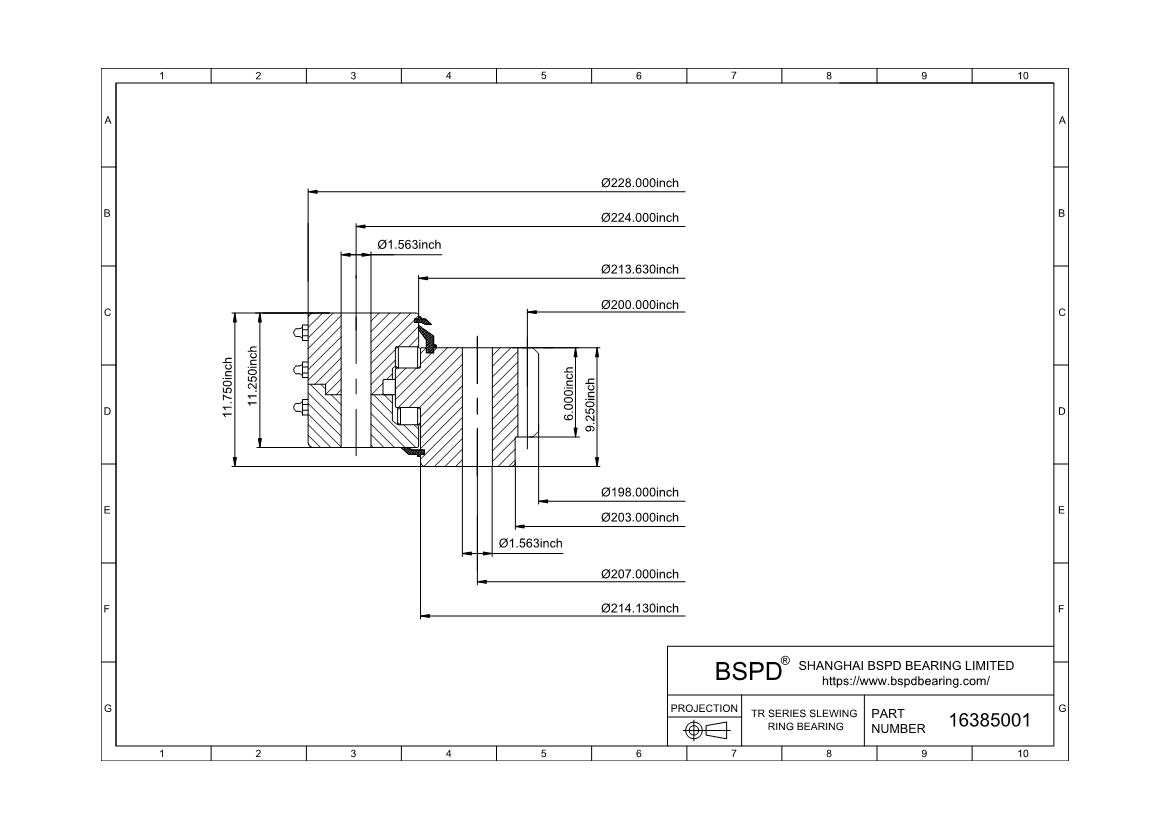

Outline Dimensions and Weight
Outside Diameter of Outer Ring (Do) 228.000" | 5791.2mm
Inside Diameter of Inner Ring (di) 198.000" | 5029.2mm
Height of overall bearing assembly(H) 11.750" | 298.45mm
Height of outer ring(Ho) 11.250" | 285.75mm
Height of inner ring(Hi) 9.250" | 234.95mm
External diameter on outer ring(Dr) -
Internal diameter on outer ring(Di) 213.630" | 5426.2mm
External diameter on inner ring(do) 214.130" | 5438.9mm
Internal diameter on inner ring(dr) 203.000" | 5156.2mm
Approximate Weight (lbs) 24,950lbs | 11317.071KG
Mounting Holes
Bolt Circle in Outer Ring (Lo) 224.000" | 5689.6mm
Number Holes in Outer Ring (no) 150
Size of hole in outer ring(Bo) 1.563
Bolt circle in inner ring(Li) 207.000" | 5257.8mm
Number Holes in Inner Ring (ni) 150
Size of hole in inner ring(Bi) 1.563
Gear Data
Pressure Angle of Gear Teeth (α) 20 º
Tooth form FD
Pitch Diameter of Gear (D2) 200.000" | 5080mm
Diametral Pitch (Pd) 1
Number of Gear Teeth(z2) 200
("+" / "-" sign increases tooth thickness at D2(X2) 0
Face Width of Gear Teeth(b2) 6.000
gear Internal gear
16385001
