16379001 Kaydon Slewing Bearings
Dimensions: Bore (Inner) Diameter: 68.032"； Outer Diameter: 87.244"； Width (Thickness): 6.969";

16379001
Slewing Bearings of similar size
same inner diameter
same outer diameter
Product Attributes
Specifications
Part Number 16379001
Maximum Allowable Gear Tooth Load (Fz) 60,240lbs | 268.929KN
Moment Load Rating (Crm) 4,250,900ft-lbs | 18977.232KN
Bearing Types Slewing Ring Bearing

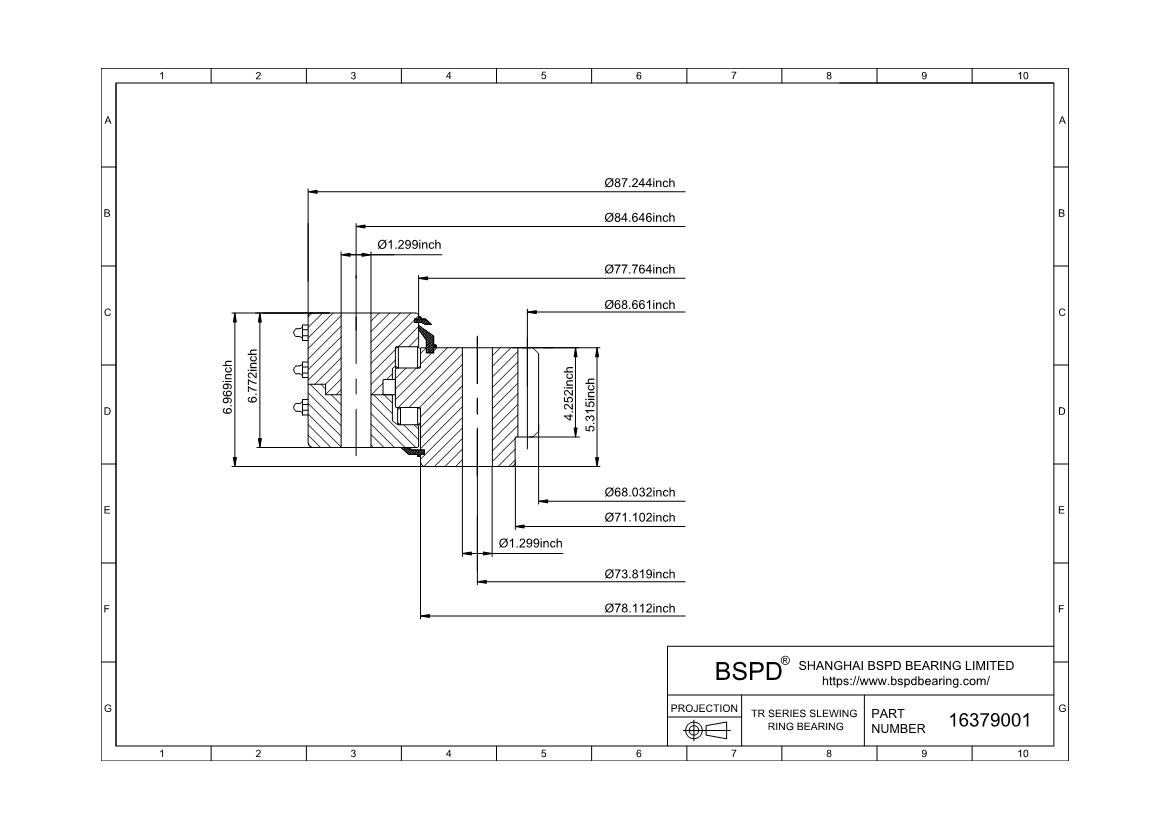

Outline Dimensions and Weight
Outside Diameter of Outer Ring (Do) 87.244" | 2216mm
Inside Diameter of Inner Ring (di) 68.032" | 1728.01mm
Height of overall bearing assembly(H) 6.969" | 177.01mm
Height of outer ring(Ho) 6.772" | 172.01mm
Height of inner ring(Hi) 5.315" | 135mm
External diameter on outer ring(Dr) -
Internal diameter on outer ring(Di) 77.764" | 1975.21mm
External diameter on inner ring(do) 78.112" | 1984.04mm
Internal diameter on inner ring(dr) 71.102" | 1805.99mm
Approximate Weight (lbs) 3,460lbs | 1569.421KG
Mounting Holes
Bolt Circle in Outer Ring (Lo) 84.646" | 2150.01mm
Number Holes in Outer Ring (no) 60
Size of hole in outer ring(Bo) 1.299
Bolt circle in inner ring(Li) 73.819" | 1875mm
Number Holes in Inner Ring (ni) 60
Size of hole in inner ring(Bi) 1.299
Gear Data
Pressure Angle of Gear Teeth (α) 20 º
Tooth form FD
Pitch Diameter of Gear (D2) 68.661" | 1743.99mm
Gear module(M) 16
Number of Gear Teeth(z2) 109
("+" / "-" sign increases tooth thickness at D2(X2) -0.5
Face Width of Gear Teeth(b2) 4.252
gear Internal gear
