16371001 Kaydon Slewing Bearings
Dimensions: Bore (Inner) Diameter: 129.921"； Outer Diameter: 152.756"； Width (Thickness): 10.039";

16371001
Slewing Bearings of similar size
same inner diameter
same outer diameter
Product Attributes
Specifications
Part Number 16371001
Maximum Allowable Gear Tooth Load (Fz) 117,500lbs | 524.554KN
Moment Load Rating (Crm) 11,652,000ft-lbs | 52017.857KN
Bearing Types Slewing Ring Bearing

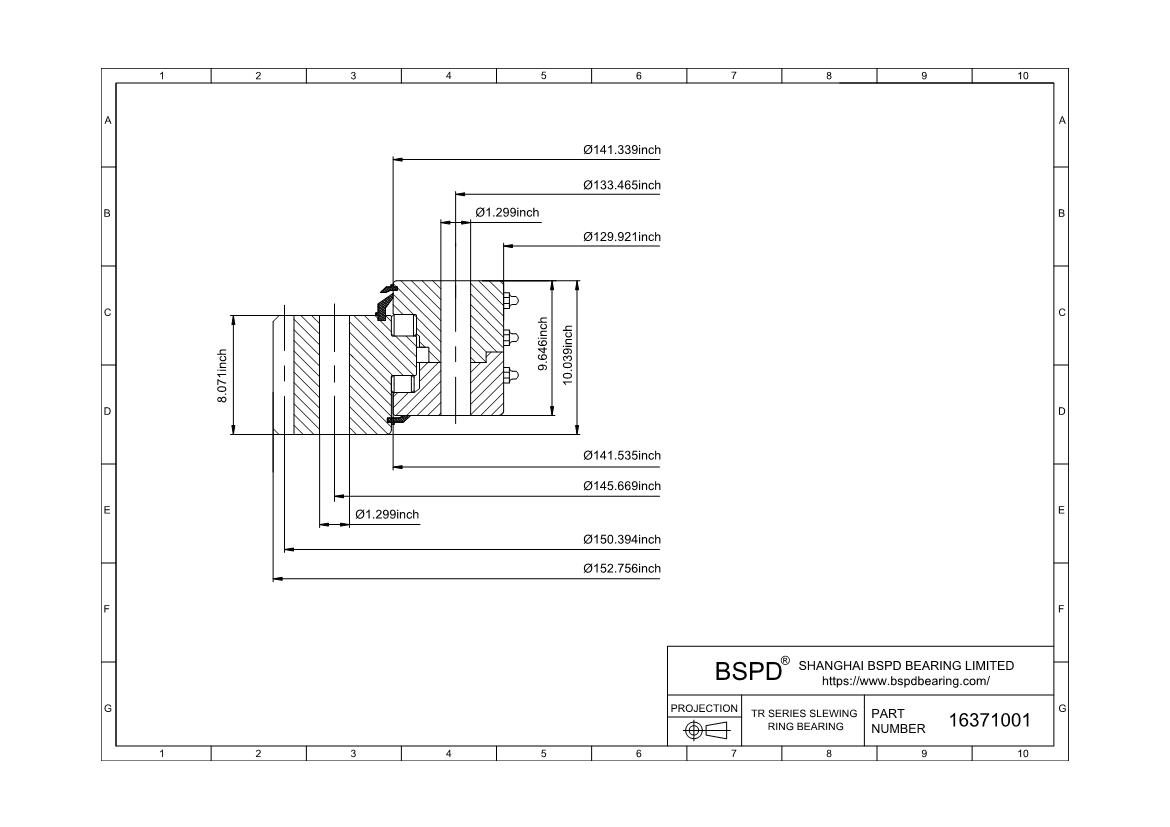

Outline Dimensions and Weight
Outside Diameter of Outer Ring (Do) 152.756" | 3880mm
Inside Diameter of Inner Ring (di) 129.921" | 3299.99mm
Height of overall bearing assembly(H) 10.039" | 254.99mm
Height of outer ring(Ho) 8.071" | 205mm
Height of inner ring(Hi) 9.646" | 245.01mm
External diameter on outer ring(Dr) -
Internal diameter on outer ring(Di) 141.535" | 3594.99mm
External diameter on inner ring(do) 141.339" | 3590.01mm
Internal diameter on inner ring(dr) -
Approximate Weight (lbs) 11,130lbs | 5048.457KG
Mounting Holes
Bolt Circle in Outer Ring (Lo) 145.669" | 3699.99mm
Number Holes in Outer Ring (no) 90
Size of hole in outer ring(Bo) 1.299
Bolt circle in inner ring(Li) 133.465" | 3390.01mm
Number Holes in Inner Ring (ni) 90
Size of hole in inner ring(Bi) 1.299
Gear Data
Pressure Angle of Gear Teeth (α) 20 º
Tooth form FD
Pitch Diameter of Gear (D2) 150.394" | 3820.01mm
Gear module（M） 20
Number of Gear Teeth(z2) 191
("+" / "-" sign increases tooth thickness at D2(X2) +.50
Face Width of Gear Teeth(b2) 8.071
gear External gear
