16369001 Kaydon Slewing Bearings
Dimensions: Bore (Inner) Diameter: 76.85"； Outer Diameter: 97.795"； Width (Thickness): 7.126";

16369001
Slewing Bearings of similar size
same inner diameter
same outer diameter
Product Attributes
Specifications
Part Number 16369001
Maximum Allowable Gear Tooth Load (Fz) 70,630 lbs | 315.313KN
Moment Load Rating (Crm) 4,129,500ft-lbs | 18435.268KN
Bearing Types Slewing Ring Bearing
Outline Dimensions and Weight

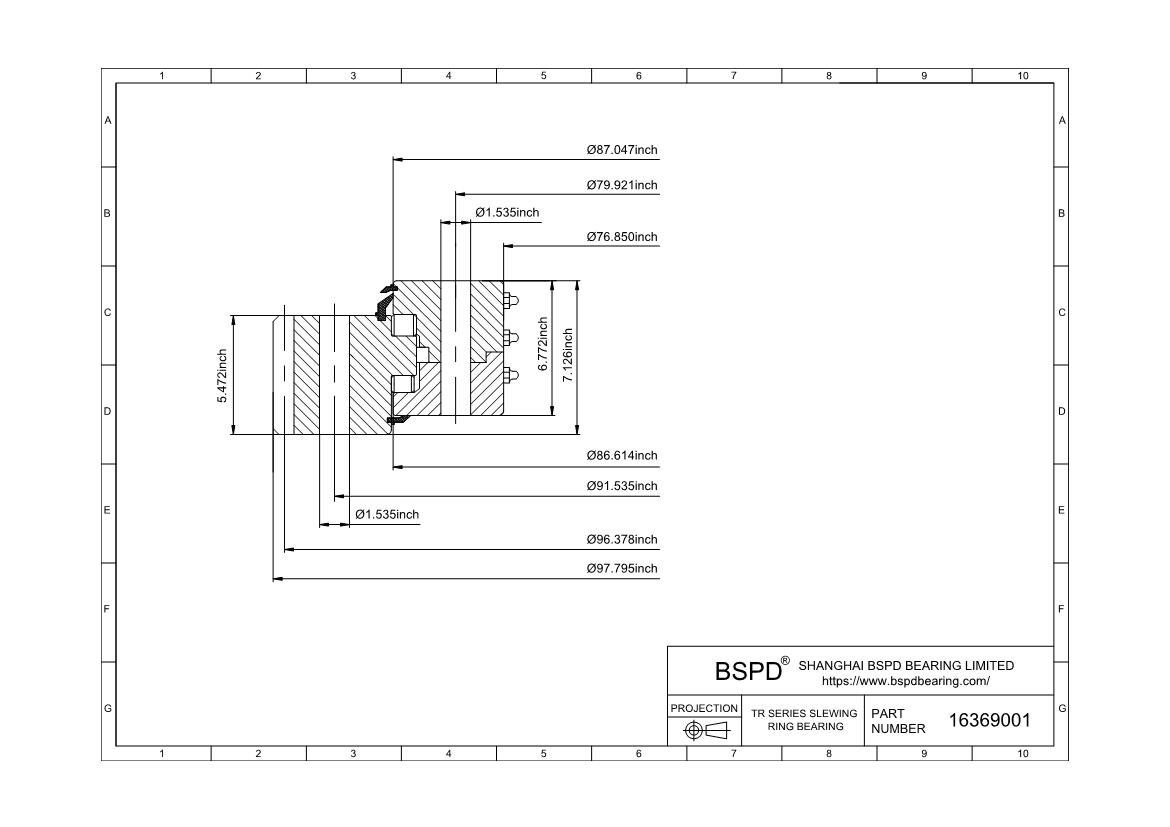

Outside Diameter of Outer Ring (Do) 97.795" | 2483.99mm
Inside Diameter of Inner Ring (di) 76.850" | 1951.99mm
Height of overall bearing assembly(H) 7.126" | 181mm
Height of outer ring(Ho) 5.472" | 138.99mm
Height of inner ring(Hi) 6.772" | 172.01mm
External diameter on outer ring(Dr) -
Internal diameter on outer ring(Di) 86.614" | 2200mm
External diameter on inner ring(do) 87.047" | 2210.99mm
Internal diameter on inner ring(dr) -
Approximate Weight (lbs) 4,400lbs | 1995.796KG
Mounting Holes
Bolt Circle in Outer Ring (Lo) 91.535" | 2324.99mm
Number Holes in Outer Ring (no) 40
Size of hole in outer ring(Bo) 1.535
Bolt circle in inner ring(Li) 79.921" | 2029.99mm
Number Holes in Inner Ring (ni) 40
Size of hole in inner ring(Bi) 1.535
Gear Data
Pressure Angle of Gear Teeth (α) 20 º
Tooth form FD
Pitch Diameter of Gear (D2) 96.378" | 2448mm
Gear module（M） 18
Number of Gear Teeth(z2) 136
("+" / "-" sign increases tooth thickness at D2(X2) 0
Face Width of Gear Teeth(b2) 5.472
gear External gear
