16367001 Kaydon Slewing Bearings
Dimensions: Bore (Inner) Diameter: 42.5"； Outer Diameter: 57.1"； Width (Thickness): 5";

16367001
Slewing Bearings of similar size
same inner diameter
same outer diameter
Product Attributes
Specifications
Part Number 16367001
Maximum Allowable Gear Tooth Load (Fz) 46,750lbs | 208.705KN
Moment Load Rating (Crm) 829,300ft-lbs | 3702.232KN
Bearing Types Slewing Ring Bearing

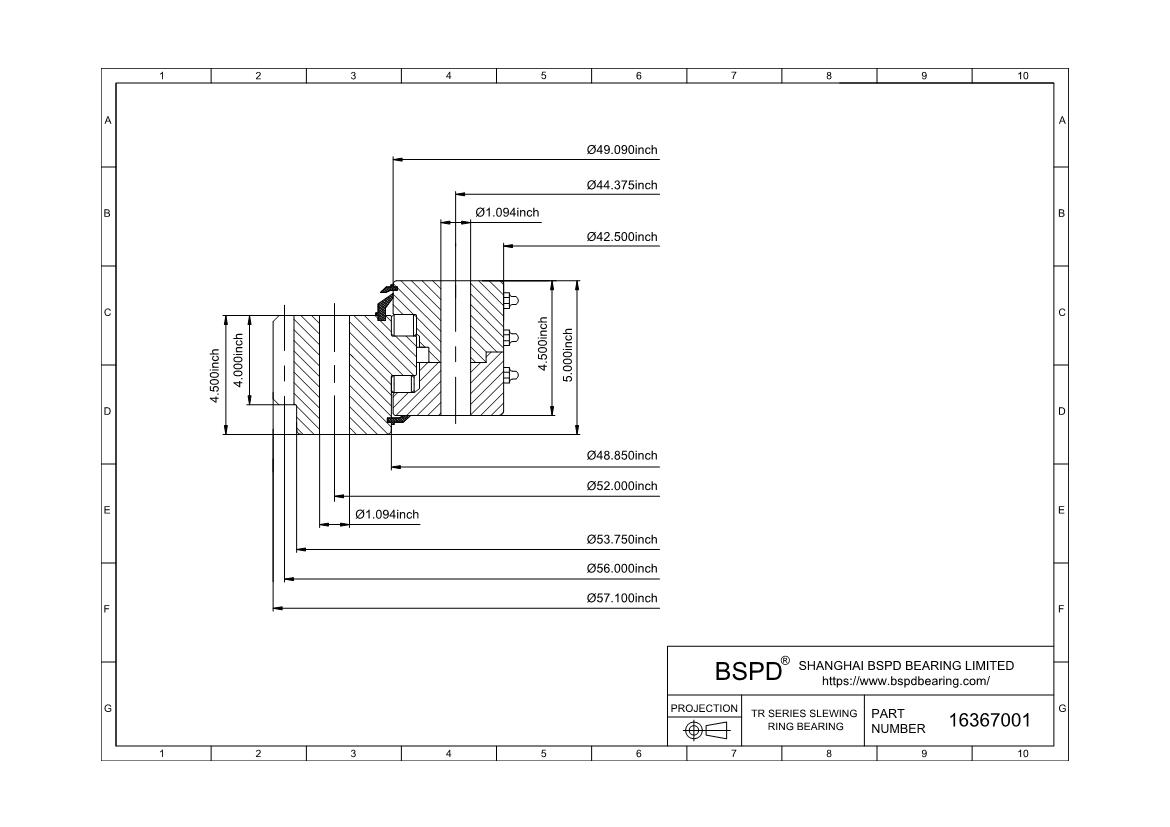

Outline Dimensions and Weight
Outside Diameter of Outer Ring (Do) 57.100" | 1450.34mm
Inside Diameter of Inner Ring (di) 42.500" | 1079.5mm
Height of overall bearing assembly(H) 5.000" | 127mm
Height of outer ring(Ho) 4.500" | 114.3mm
Height of inner ring(Hi) 4.500" | 114.3mm
External diameter on outer ring(Dr) 53.750" | 1365.25mm
Internal diameter on outer ring(Di) 48.850" | 1240.79mm
External diameter on inner ring(do) 49.090" | 1246.89mm
Internal diameter on inner ring(dr) 42.630" | 1082.8mm
Approximate Weight (lbs) 1,250lbs | 566.988KG
Mounting Holes
Bolt Circle in Outer Ring (Lo) 52.000" | 1320.8mm
Number Holes in Outer Ring (no) 40
Size of hole in outer ring(Bo) 1.094
Bolt circle in inner ring(Li) 44.375" | 1127.13mm
Number Holes in Inner Ring (ni) 40
Size of hole in inner ring(Bi) 1.094
Gear Data
Pressure Angle of Gear Teeth (α) 20 º
Tooth form FD
Pitch Diameter of Gear (D2) 56.000" | 1422.4mm
Diametral Pitch (Pd) 1.5
Number of Gear Teeth(z2) 84
("+" / "-" sign increases tooth thickness at D2(X2) -.18
Face Width of Gear Teeth(b2) 4.000
gear External gear
16367001
Print PDF
Request a 3D CAD Model if you need special bearings - design custom bearings
