16349001 Kaydon Slewing Bearings
Dimensions: Bore (Inner) Diameter: 33.0"； Outer Diameter: 48.56"； Width (Thickness): 7.3";

16349001
Slewing Bearings of similar size
same inner diameter
same outer diameter
Product Attributes
Specifications
Part Number 16349001
Maximum Allowable Gear Tooth Load (Fz) -
Moment Load Rating (Crm) 1,104,700ft-lbs | 4931.696KN
Bearing Types Slewing Ring Bearing

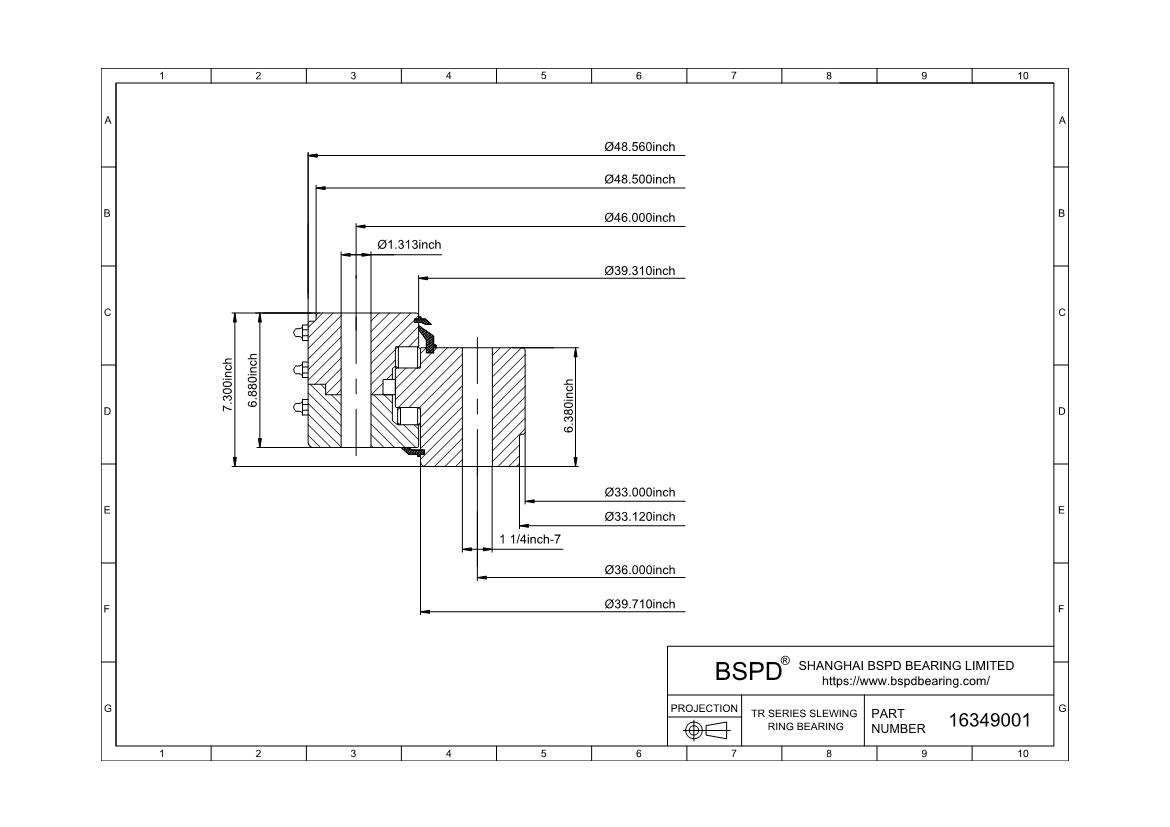

Outline Dimensions and Weight
Outside Diameter of Outer Ring (Do) 48.560" | 1233.42mm
Inside Diameter of Inner Ring (di) 33.000" | 838.2mm
Height of overall bearing assembly(H) 7.300" | 185.42mm
Height of outer ring(Ho) 6.880" | 174.75mm
Height of inner ring(Hi) 6.380" | 162.05mm
External diameter on outer ring(Dr) 48.500" | 1231.9mm
Internal diameter on outer ring(Di) 39.310" | 998.47mm
External diameter on inner ring(do) 39.710" | 1008.63mm
Internal diameter on inner ring(dr) 33.120" | 841.25mm
Approximate Weight (lbs) 1,700lbs | 771.103KG
Mounting Holes
Bolt Circle in Outer Ring (Lo) 46.000" | 1168.4mm
Number Holes in Outer Ring (no) 32
Size of hole in outer ring(Bo) 1.313
Bolt circle in inner ring(Li) 36.000" | 914.4mm
Number Holes in Inner Ring (ni) 32
Size of hole in inner ring(Bi) 1 1/4-7
Gear Data
Pressure Angle of Gear Teeth (α) 20 º
Tooth form -
Pitch Diameter of Gear (D2) -
Diametral Pitch (Pd) -
Number of Gear Teeth(z2) -
("+" / "-" sign increases tooth thickness at D2(X2) -
Face Width of Gear Teeth(b2) -
gear No gear
16349001
