16347001 Kaydon Slewing Bearings
Dimensions: Bore (Inner) Diameter: 84.0"； Outer Diameter: 100.67"； Width (Thickness): 6.5";

16347001
Slewing Bearings of similar size
same inner diameter
same outer diameter
Product Attributes
Specifications
Part Number 16347001
Moment(ft-lbs) 1557670lbs | 6953.884KN
Thrust(lbs) 422960lbs | 1888.214KN
Radial(lbs) 376230lbs | 1679.598KN
Maximum Allowable Gear Tooth Load (Fz) 32030lbs | 142.991KN
Bearing Types Slewing Ring Bearing

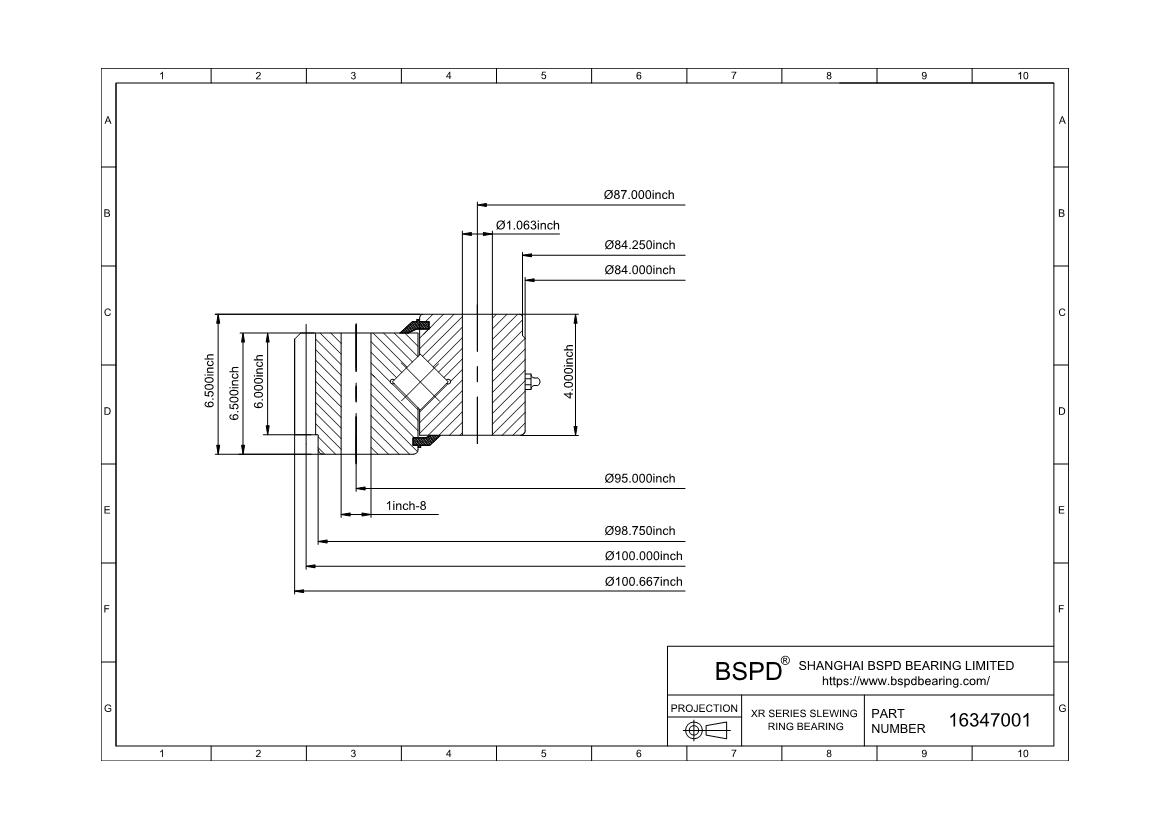

Outline Dimensions and Weight
Outside Diameter of Outer Ring (Do) 100.67" | 2557.02mm
Inside Diameter of Inner Ring (di) 84" | 2133.6mm
Height of overall bearing assembly(H) 6.5" | 165.1mm
Height of outer ring(Ho) 6.5" | 165.1mm
Height of inner ring(Hi) 4" | 101.6mm
External diameter on outer ring(Dr) 98.75" | 2508.25mm
Internal diameter on inner ring(dr) 84.25" | 2139.95mm
Approximate Weight (lbs) 3240lbs | 1469.632KG
Mounting Holes
Bolt Circle in Outer Ring (Lo) 95" | 2413mm
Number Holes in Outer Ring (no) 48
Size of hole in outer ring(Bo) 1/8
Bolt circle in inner ring(Li) 87" | 2209.8mm
Number Holes in Inner Ring (ni) 48
Size of hole in inner ring(Bi) 1.063
Gear Data
Pressure Angle of Gear Teeth (α) 20 º
Tooth form FD
Pitch Diameter of Gear (D2) 100" | 2540mm
Diametral Pitch (Pd) 3
Number of Gear Teeth(z2) 300
("+" / "-" sign increases tooth thickness at D2(X2) 0
Face Width of Gear Teeth(b2) 6
gear External
16347001
