16337001 Kaydon Slewing Bearings
Dimensions: Bore (Inner) Diameter: 9.19"； Outer Diameter: 16.0"； Width (Thickness): 2.17";

16337001
Slewing Bearings of similar size
same inner diameter
same outer diameter
Product Attributes
Specifications
Part Number 16337001
Moment(ft-lbs) 13190lbs | 58.884KN
Thrust(lbs) 27780lbs | 124.018KN
Radial(lbs) 24130lbs | 107.723KN
Maximum Allowable Gear Tooth Load (Fz) 4320lbs | 19.286KN
Bearing Types Slewing Ring Bearing

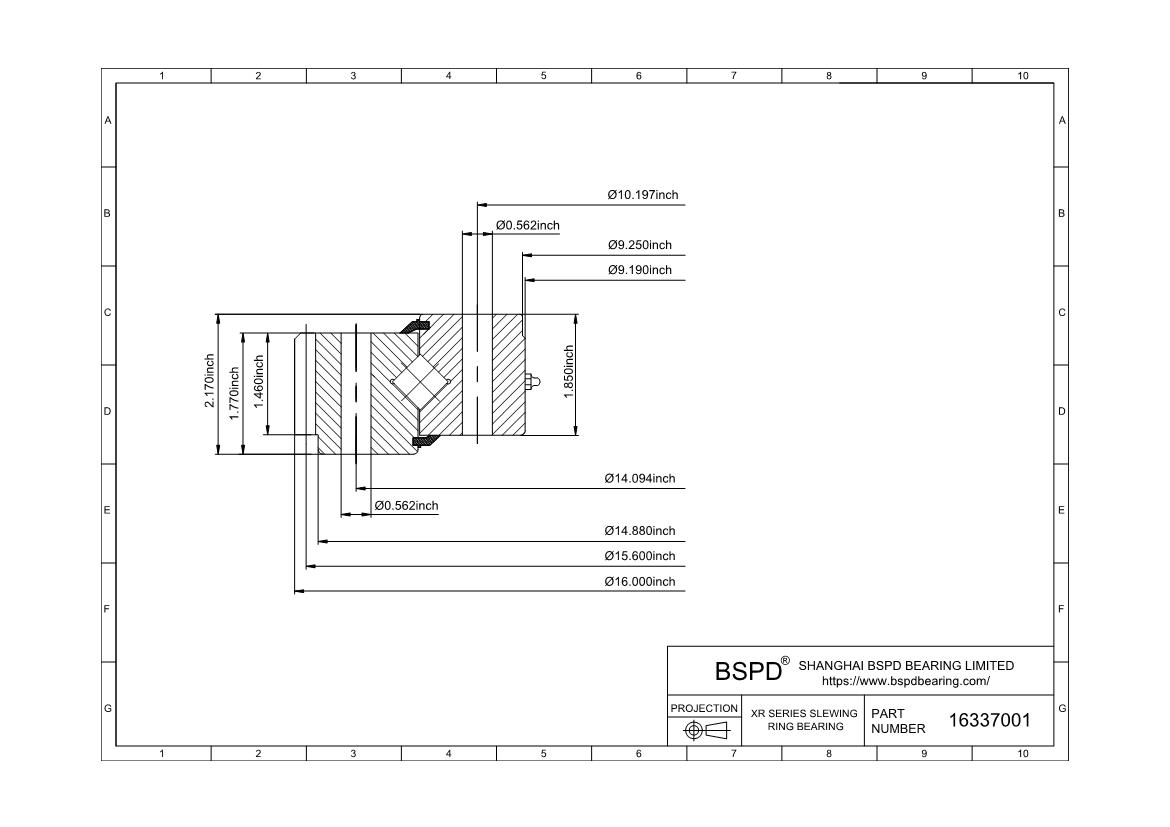

Outline Dimensions and Weight
Outside Diameter of Outer Ring (Do) 16" | 406.4mm
Inside Diameter of Inner Ring (di) 9.19" | 233.43mm
Height of overall bearing assembly(H) 2.17" | 55.12mm
Height of outer ring(Ho) 1.77" | 44.96mm
Height of inner ring(Hi) 1.85" | 46.99mm
External diameter on outer ring(Dr) 14.88" | 377.95mm
Internal diameter on inner ring(dr) 9.25" | 234.95mm
Approximate Weight (lbs) 55lbs | 24.947KG
Mounting Holes
Bolt Circle in Outer Ring (Lo) 14.094" | 357.99mm
Number Holes in Outer Ring (no) 24
Size of hole in outer ring(Bo) 0.562
Bolt circle in inner ring(Li) 10.197" | 259mm
Number Holes in Inner Ring (ni) 24
Size of hole in inner ring(Bi) 0.562
Gear Data
Pressure Angle of Gear Teeth (α) 20 º
Tooth form FD
Pitch Diameter of Gear (D2) 15.6" | 396.24mm
Diametral Pitch (Pd) 5
Number of Gear Teeth(z2) 78
("+" / "-" sign increases tooth thickness at D2(X2) 0
Face Width of Gear Teeth(b2) 1.46
gear External
16337001
