16335001 Kaydon Slewing Bearings
Dimensions: Bore (Inner) Diameter: 97.717"； Outer Diameter: 121.496"； Width (Thickness): 6.772";

16335001
Slewing Bearings of similar size
same inner diameter
same outer diameter
Product Attributes
Specifications
Part Number 16335001
Moment(ft-lbs) 3797780lbs | 16954.375KN
Thrust(lbs) 854030lbs | 3812.634KN
Radial(lbs) 755820lbs | 3374.196KN
Maximum Allowable Gear Tooth Load (Fz) 134270lbs | 599.42KN
Bearing Types Slewing Ring Bearing
Outline Dimensions and Weight
Outside Diameter of Outer Ring (Do) 121.496" | 3086mm
Inside Diameter of Inner Ring (di) 97.717" | 2482.01mm
Height of overall bearing assembly(H) 6.772" | 172.01mm
Height of outer ring(Ho) 6.299" | 159.99mm
Height of inner ring(Hi) 6.299" | 159.99mm
External diameter on outer ring(Dr) -
Internal diameter on inner ring(dr) -
Approximate Weight (lbs) 6080lbs | 2757.827KG
Mounting Holes
Bolt Circle in Outer Ring (Lo) 117.795" | 2991.99mm
Number Holes in Outer Ring (no) 72
Size of hole in outer ring(Bo) 1.535
Bolt circle in inner ring(Li) 105.512" | 2680mm
Number Holes in Inner Ring (ni) 72
Size of hole in inner ring(Bi) 1.535
Gear Data
Pressure Angle of Gear Teeth (α) 20 º
Tooth form FD
Pitch Diameter of Gear (D2) 98.268" | 2496.01mm
Gear module（M） 24
Number of Gear Teeth(z2) 104
("+" / "-" sign increases tooth thickness at D2(X2) -0.71
Face Width of Gear Teeth(b2) 6.299
gear Internal
16335001
Print PDF

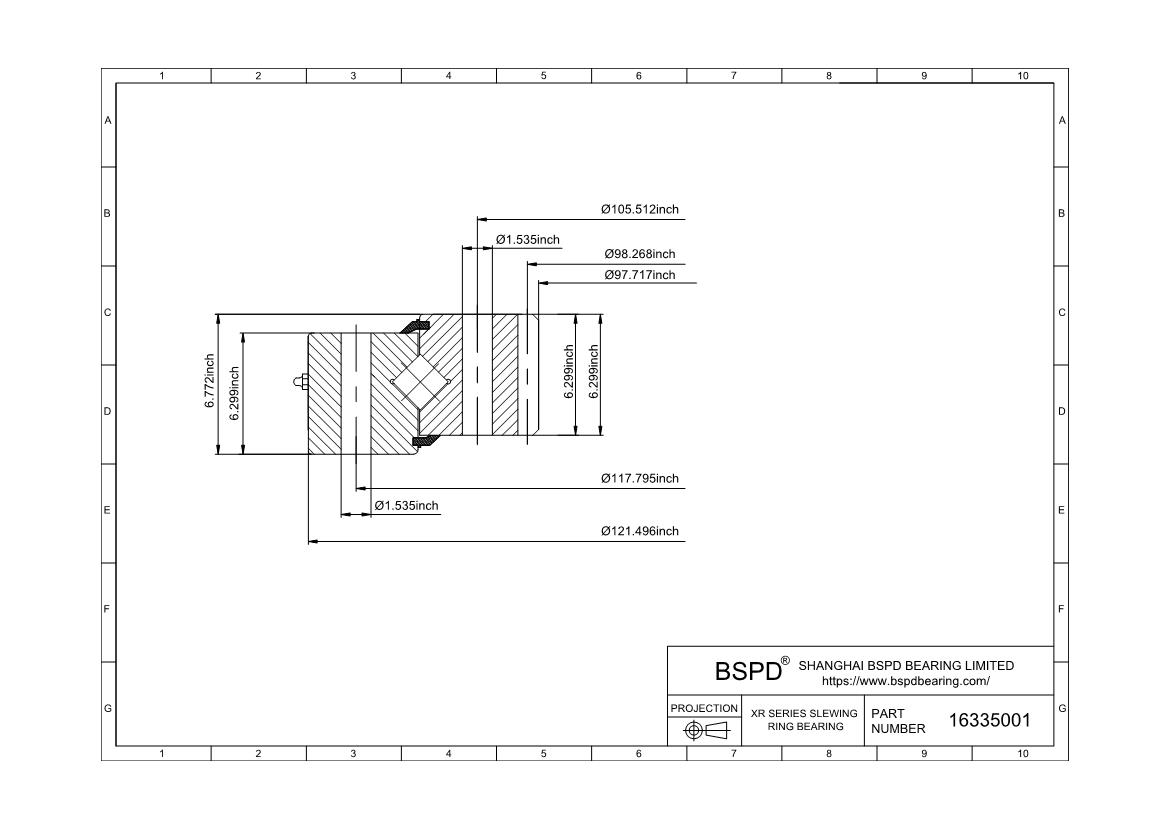

Request a 3D CAD Model if you need special bearings - design custom bearings
