16328001 Kaydon Slewing Bearings
Dimensions: Bore (Inner) Diameter: 18.667"； Outer Diameter: 26.7"； Width (Thickness): 2.5";

16328001
Slewing Bearings of similar size
same inner diameter
same outer diameter
Product Attributes
Specifications
Part Number 16328001
Moment(ft-lbs) 65430lbs | 292.098KN
Thrust(lbs) 73810lbs | 329.509KN
Radial(lbs) 64620lbs | 288.482KN
Maximum Allowable Gear Tooth Load (Fz) 6345lbs | 28.326KN
Bearing Types Slewing Ring Bearing

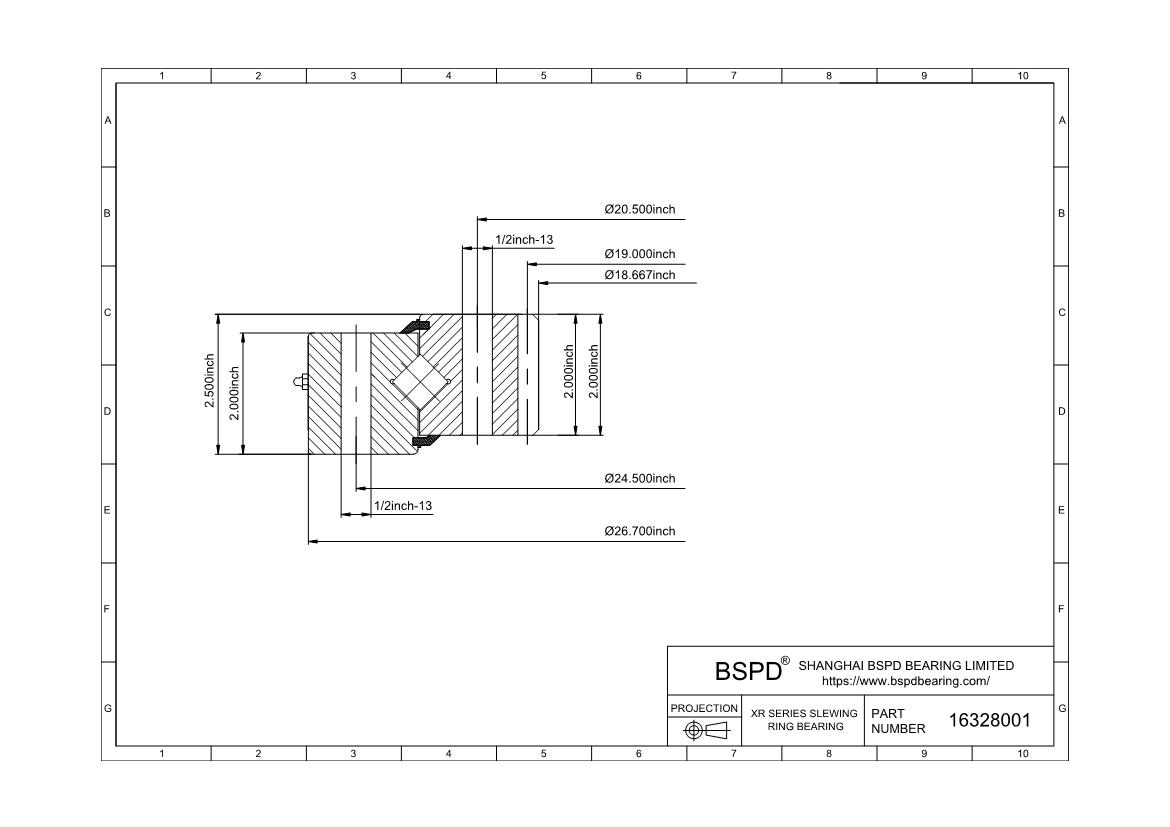

Outline Dimensions and Weight
Outside Diameter of Outer Ring (Do) 26.7" | 678.18mm
Inside Diameter of Inner Ring (di) 18.667" | 474.14mm
Height of overall bearing assembly(H) 2.5" | 63.5mm
Height of outer ring(Ho) 2" | 50.8mm
Height of inner ring(Hi) 2" | 50.8mm
External diameter on outer ring(Dr) -
Internal diameter on inner ring(dr) -
Approximate Weight (lbs) 130lbs | 58.967KG
Mounting Holes
Bolt Circle in Outer Ring (Lo) 24.5" | 622.3mm
Number Holes in Outer Ring (no) 18
Size of hole in outer ring(Bo) 1/2-13
Bolt circle in inner ring(Li) 20.5" | 520.7mm
Number Holes in Inner Ring (ni) 18
Size of hole in inner ring(Bi) 1/2-13
Gear Data
Pressure Angle of Gear Teeth (α) 20 º
Tooth form FD
Pitch Diameter of Gear (D2) 19" | 482.6mm
Diametral Pitch (Pd) 6
Number of Gear Teeth(z2) 114
("+" / "-" sign increases tooth thickness at D2(X2) 0
Face Width of Gear Teeth(b2) 2
gear Internal
