16325001 Kaydon Slewing Bearings
Dimensions: Bore (Inner) Diameter: 82.0"； Outer Diameter: 95.0"； Width (Thickness): 4";

16325001
Slewing Bearings of similar size
same inner diameter
same outer diameter
Product Attributes
Specifications
Part Number 16325001
Moment(ft-lbs) 1450300lbs | 6474.554KN
Thrust(lbs) 407250lbs | 1818.08KN
Radial(lbs) 362100lbs | 1616.518KN
Maximum Allowable Gear Tooth Load (Fz) -
Bearing Types Slewing Ring Bearing

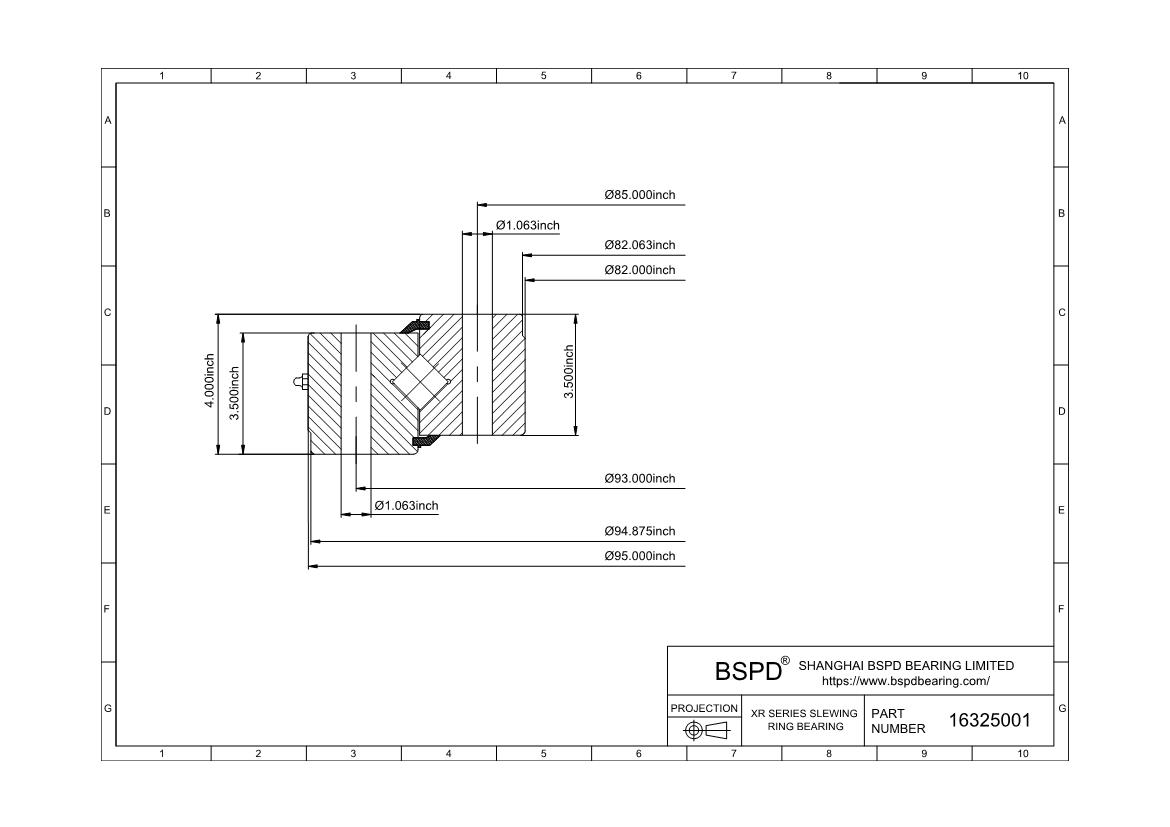

Outline Dimensions and Weight
Outside Diameter of Outer Ring (Do) 95" | 2413mm
Inside Diameter of Inner Ring (di) 82" | 2082.8mm
Height of overall bearing assembly(H) 4" | 101.6mm
Height of outer ring(Ho) 3.5" | 88.9mm
Height of inner ring(Hi) 3.5" | 88.9mm
External diameter on outer ring(Dr) 94.875" | 2409.83mm
Internal diameter on inner ring(dr) 82.063" | 2084.4mm
Approximate Weight (lbs) 1660lbs | 752.959KG
Mounting Holes
Bolt Circle in Outer Ring (Lo) 93" | 2362.2mm
Number Holes in Outer Ring (no) 48
Size of hole in outer ring(Bo) 1.063
Bolt circle in inner ring(Li) 85" | 2159mm
Number Holes in Inner Ring (ni) 48
Size of hole in inner ring(Bi) 1.063
Gear Data
Pressure Angle of Gear Teeth (α) 20 º
Tooth form -
Pitch Diameter of Gear (D2) -
Diametral Pitch (Pd) -
Number of Gear Teeth(z2) -
("+" / "-" sign increases tooth thickness at D2(X2) -
Face Width of Gear Teeth(b2) -
gear No
16325001
