16320001 Kaydon Slewing Bearings
Dimensions: Bore (Inner) Diameter: 18.779"； Outer Diameter: 27.362"； Width (Thickness): 3.031";

16320001
Slewing Bearings of similar size
same inner diameter
same outer diameter
Product Attributes
Specifications
Part Number 16320001
Moment(ft-lbs) 65660lbs | 293.125KN
Thrust(lbs) 73730lbs | 329.152KN
Radial(lbs) 64560lbs | 288.214KN
Maximum Allowable Gear Tooth Load (Fz) -
Bearing Types Slewing Ring Bearing

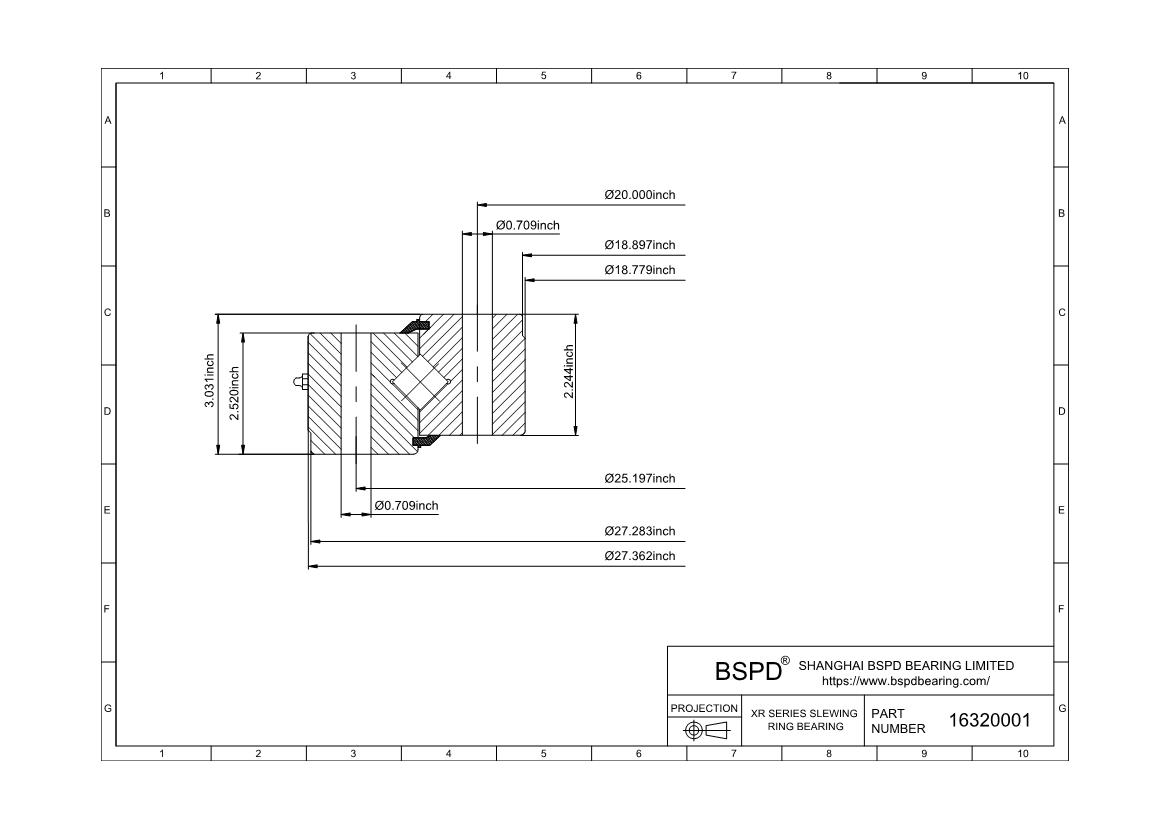

Outline Dimensions and Weight
Outside Diameter of Outer Ring (Do) 27.362" | 694.99mm
Inside Diameter of Inner Ring (di) 18.779" | 476.99mm
Height of overall bearing assembly(H) 3.031" | 76.99mm
Height of outer ring(Ho) 2.52" | 64.01mm
Height of inner ring(Hi) 2.244" | 57mm
External diameter on outer ring(Dr) 27.283" | 692.99mm
Internal diameter on inner ring(dr) 18.897" | 479.98mm
Approximate Weight (lbs) 185lbs | 83.914KG
Mounting Holes
Bolt Circle in Outer Ring (Lo) 25.197" | 640mm
Number Holes in Outer Ring (no) 28
Size of hole in outer ring(Bo) 0.709
Bolt circle in inner ring(Li) 20" | 508mm
Number Holes in Inner Ring (ni) 28
Size of hole in inner ring(Bi) 0.709
Gear Data
Pressure Angle of Gear Teeth (α) 20 º
Tooth form -
Pitch Diameter of Gear (D2) -
Diametral Pitch (Pd) -
Number of Gear Teeth(z2) -
("+" / "-" sign increases tooth thickness at D2(X2) -
Face Width of Gear Teeth(b2) -
gear No
16320001
