16318001 Kaydon Slewing Bearings
Dimensions: Bore (Inner) Diameter: 5.512"； Outer Diameter: 11.811"； Width (Thickness): 1.417";

16318001
Slewing Bearings of similar size
same inner diameter
same outer diameter
Product Attributes
Specifications
Part Number 16318001
Moment(ft-lbs) 7530lbs | 33.616KN
Thrust(lbs) 22340lbs | 99.732KN
Radial(lbs) 19150lbs | 85.491KN
Maximum Allowable Gear Tooth Load (Fz) -
Bearing Types Slewing Ring Bearing

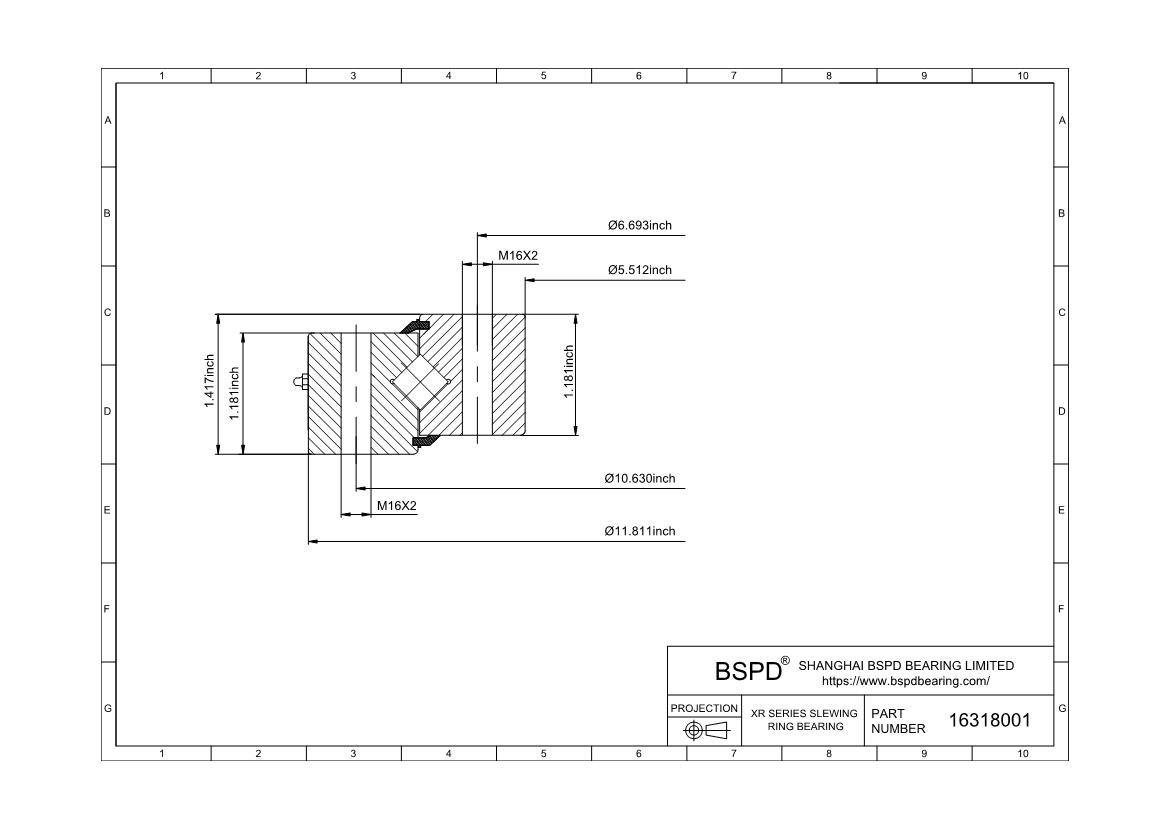

Outline Dimensions and Weight
Outside Diameter of Outer Ring (Do) 11.811" | 300mm
Inside Diameter of Inner Ring (di) 5.512" | 140mm
Height of overall bearing assembly(H) 1.417" | 35.99mm
Height of outer ring(Ho) 1.181" | 30mm
Height of inner ring(Hi) 1.181" | 30mm
External diameter on outer ring(Dr) -
Internal diameter on inner ring(dr) -
Approximate Weight (lbs) 30lbs | 13.608KG
Mounting Holes
Bolt Circle in Outer Ring (Lo) 10.63" | 270mm
Number Holes in Outer Ring (no) 6
Size of hole in outer ring(Bo) M16X2
Bolt circle in inner ring(Li) 6.693" | 170mm
Number Holes in Inner Ring (ni) 6
Size of hole in inner ring(Bi) M16X2
Gear Data
Pressure Angle of Gear Teeth (α) 20 º
Tooth form -
Pitch Diameter of Gear (D2) -
Diametral Pitch (Pd) -
Number of Gear Teeth(z2) -
("+" / "-" sign increases tooth thickness at D2(X2) -
Face Width of Gear Teeth(b2) -
gear No
16318001
Print PDF
Request a 3D CAD Model if you need special bearings - design custom bearings
