16317001 Kaydon Slewing Bearings
Dimensions: Bore (Inner) Diameter: 197.244"； Outer Diameter: 218.268"； Width (Thickness): 5.512";

16317001
Slewing Bearings of similar size
same inner diameter
same outer diameter
Product Attributes
Specifications
Part Number 16317001
Maximum Allowable Gear Tooth Load (Fz) 31,100
Moment Load Rating (Crm) 3,190,000ft-lbs | 14241.071KN
Bearing Types Slewing Ring Bearing

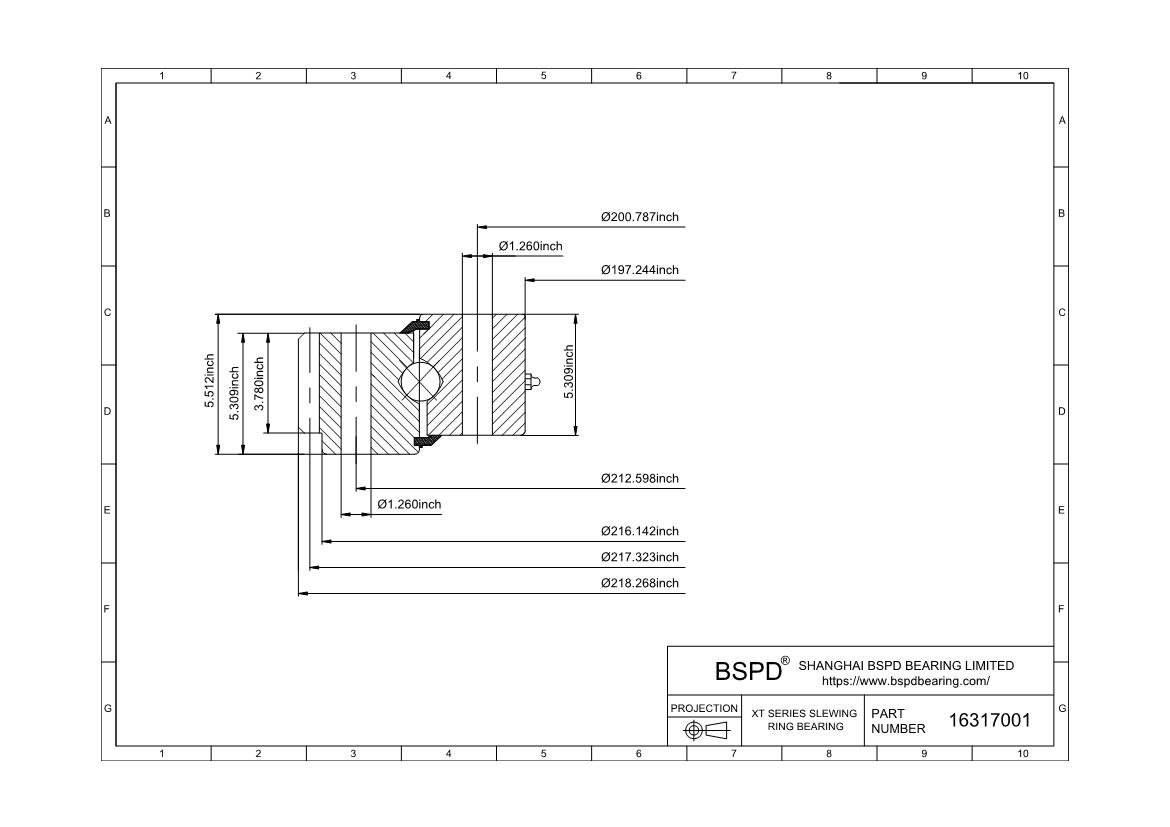

Outline Dimensions and Weight
Outside Diameter of Outer Ring (Do) 218.268" | 5544.01mm
Inside Diameter of Inner Ring (di) 197.244" | 5010mm
Height of overall bearing assembly(H) 5.512" | 140mm
Height of outer ring(Ho) 5.039" | 127.99mm
Height of inner ring(Hi) 5.039" | 127.99mm
External diameter on outer ring(Dr) 216.142" | 5490.01mm
Internal diameter on inner ring(dr) -
Approximate Weight (lbs) 8,700lbs | 3946.233KG
Mounting Holes
Bolt Circle in Outer Ring (Lo) 212.598" | 5399.99mm
Number Holes in Outer Ring (no) 90
Size of hole in outer ring(Bo) 1.260
Bolt circle in inner ring(Li) 200.787" | 5099.99mm
Number Holes in Inner Ring (ni) 90
Size of hole in inner ring(Bi) 1.260
Gear Data
Pressure Angle of Gear Teeth (α) 20 º
Tooth form FD
Pitch Diameter (D2) 217.323" | 5520mm
Pd or (m) 12
Number of Teeth (z2) 460
Addendum modification coefficient of gear teeth(x2) 0
Face width of gear teeth(b2) 3.780
gear External gear
