16316001 Kaydon Slewing Bearings
Dimensions: Bore (Inner) Diameter: 173.622"； Outer Diameter: 196.85"； Width (Thickness): 7";

16316001
Slewing Bearings of similar size
same inner diameter
same outer diameter
Product Attributes
Specifications
Part Number 16316001
Maximum Allowable Gear Tooth Load (Fz) 81,000
Moment Load Rating (Crm) 5,210,000ft-lbs | 23258.929KN
Bearing Types Slewing Ring Bearing

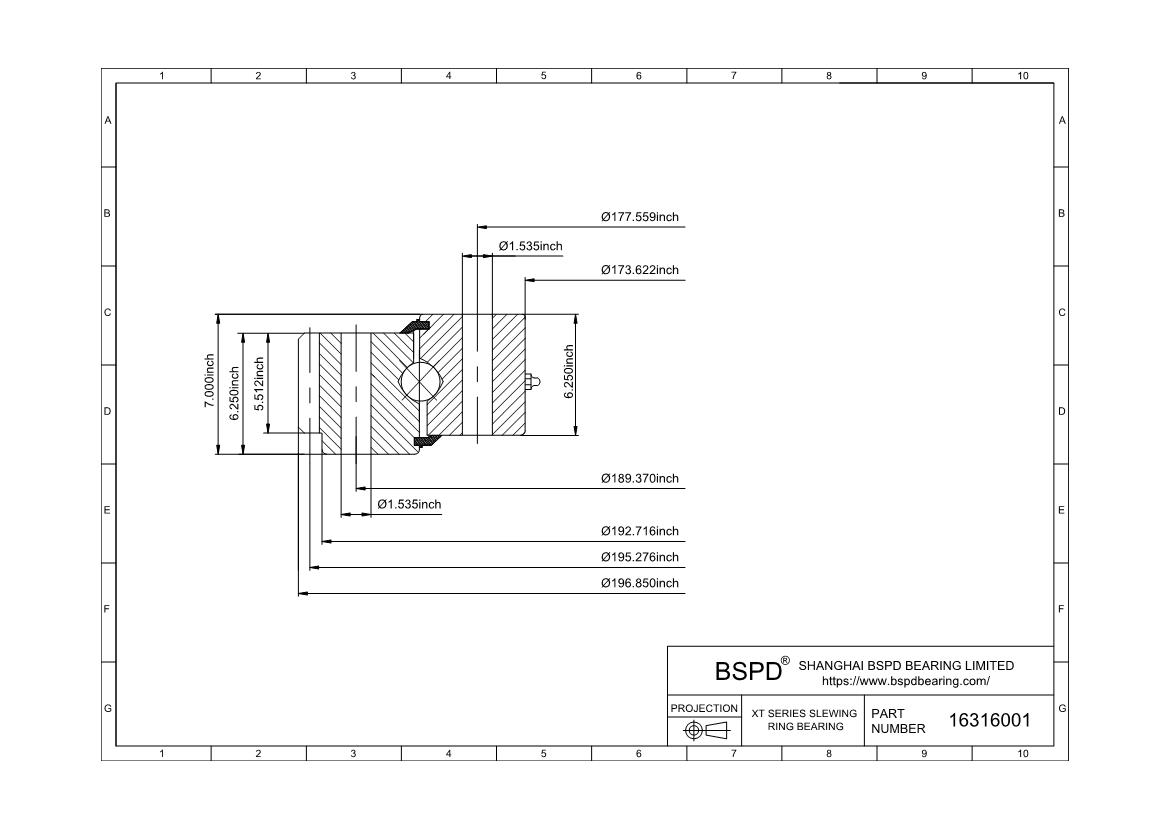

Outline Dimensions and Weight
Outside Diameter of Outer Ring (Do) 196.850" | 4999.99mm
Inside Diameter of Inner Ring (di) 173.622" | 4410mm
Height of overall bearing assembly(H) 7.000" | 177.8mm
Height of outer ring(Ho) 6.250" | 158.75mm
Height of inner ring(Hi) 6.250" | 158.75mm
External diameter on outer ring(Dr) 192.716" | 4894.99mm
Internal diameter on inner ring(dr) -
Approximate Weight (lbs) 10,100lbs | 4581.259KG
Mounting Holes
Bolt Circle in Outer Ring (Lo) 189.370" | 4810mm
Number Holes in Outer Ring (no) 80
Size of hole in outer ring(Bo) 1.535
Bolt circle in inner ring(Li) 177.559" | 4510mm
Number Holes in Inner Ring (ni) 80
Size of hole in inner ring(Bi) 1.535
Gear Data
Pressure Angle of Gear Teeth (α) 20 º
Tooth form FD
Pitch Diameter (D2) 195.276" | 4960.01mm
Pd or (m) 20
Number of Teeth (z2) 248
Addendum modification coefficient of gear teeth(x2) 0
Face width of gear teeth(b2) 5.512
gear External gear
16316001
