16314001 Kaydon Slewing Bearings
Dimensions: Bore (Inner) Diameter: 118.11"； Outer Diameter: 134.331"； Width (Thickness): 5.125";

16314001
Slewing Bearings of similar size
same inner diameter
same outer diameter
same width
Product Attributes
Specifications
Part Number 16314001
Maximum Allowable Gear Tooth Load (Fz) 61,800
Moment Load Rating (Crm) 2,070,000ft-lbs | 9241.071KN
Bearing Types Slewing Ring Bearing

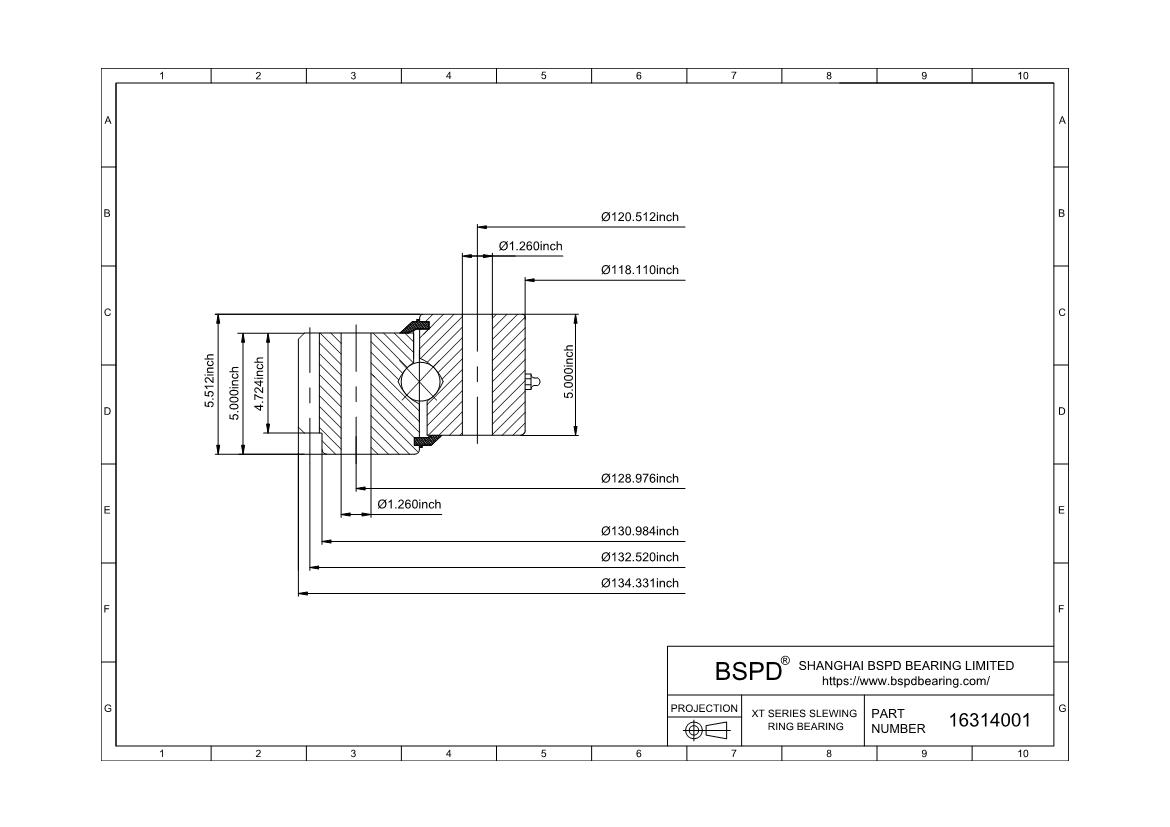

Outline Dimensions and Weight
Outside Diameter of Outer Ring (Do) 134.331" | 3412.01mm
Inside Diameter of Inner Ring (di) 118.110" | 2999.99mm
Height of overall bearing assembly(H) 5.512" | 140mm
Height of outer ring(Ho) 5.000" | 127mm
Height of inner ring(Hi) 5.000" | 127mm
External diameter on outer ring(Dr) 130.984" | 3326.99mm
Internal diameter on inner ring(dr) -
Approximate Weight (lbs) 3,600lbs | 1632.924KG
Mounting Holes
Bolt Circle in Outer Ring (Lo) 128.976" | 3275.99mm
Number Holes in Outer Ring (no) 72
Size of hole in outer ring(Bo) 1.260
Bolt circle in inner ring(Li) 120.512" | 3061mm
Number Holes in Inner Ring (ni) 72
Size of hole in inner ring(Bi) 1.260
Gear Data
Pressure Angle of Gear Teeth (α) 20 º
Tooth form FD
Pitch Diameter (D2) 132.520" | 3366.01mm
Pd or (m) 18
Number of Teeth (z2) 187
Addendum modification coefficient of gear teeth(x2) .28
Face width of gear teeth(b2) 4.724
gear External gear
