16313001 Kaydon Slewing Bearings
Dimensions: Bore (Inner) Diameter: 78.4"； Outer Diameter: 98.8"； Width (Thickness): 6.625";

16313001
Slewing Bearings of similar size
same inner diameter
same outer diameter
Product Attributes
Specifications
Part Number 16313001
Maximum Allowable Gear Tooth Load (Fz) 49,600
Moment Load Rating (Crm) 4,951,000ft-lbs | 22102.679KN
Bearing Types Slewing Ring Bearing

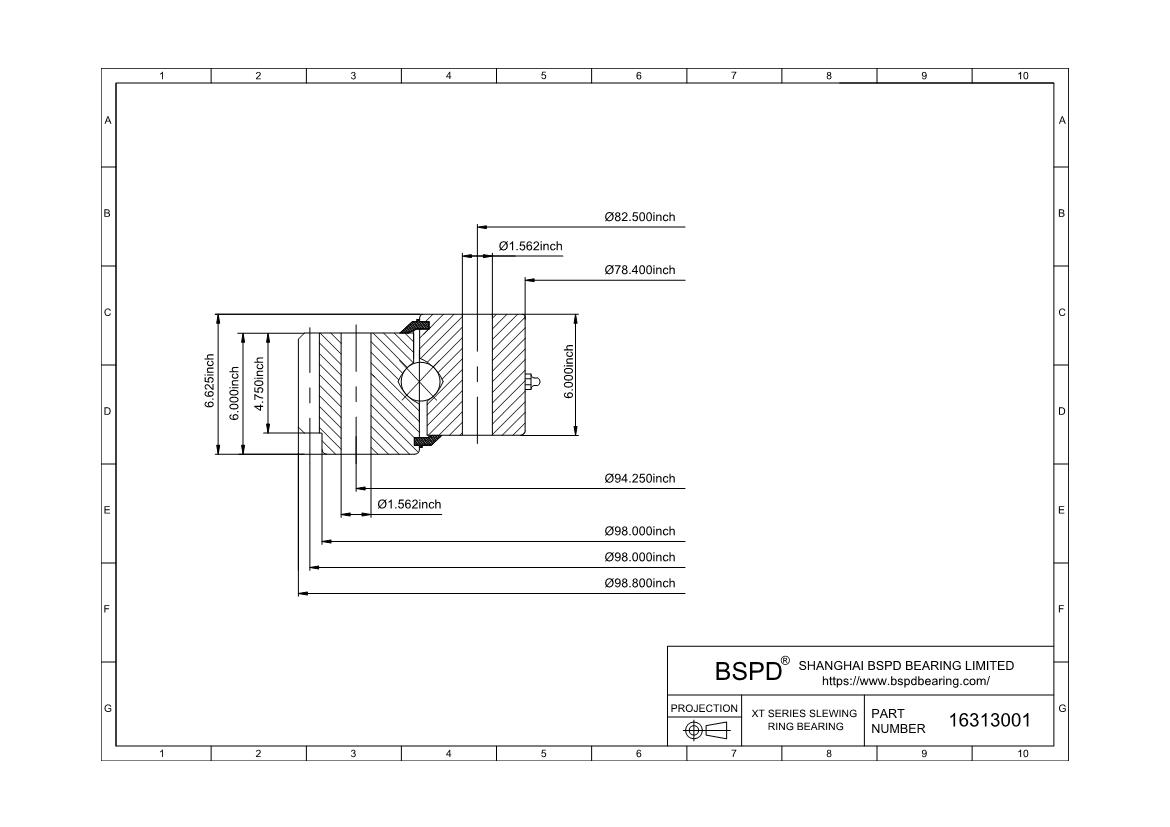

Outline Dimensions and Weight
Outside Diameter of Outer Ring (Do) 98.800" | 2509.52mm
Inside Diameter of Inner Ring (di) 78.400" | 1991.36mm
Height of overall bearing assembly(H) 6.625" | 168.28mm
Height of outer ring(Ho) 6.000" | 152.4mm
Height of inner ring(Hi) 6.000" | 152.4mm
External diameter on outer ring(Dr) 98.000" | 2489.2mm
Internal diameter on inner ring(dr) -
Approximate Weight (lbs) 4,000lbs | 1814.36KG
Mounting Holes
Bolt Circle in Outer Ring (Lo) 94.250" | 2393.95mm
Number Holes in Outer Ring (no) 72
Size of hole in outer ring(Bo) 1.562
Bolt circle in inner ring(Li) 82.500" | 2095.5mm
Number Holes in Inner Ring (ni) 60
Size of hole in inner ring(Bi) 1.812
Gear Data
Pressure Angle of Gear Teeth (α) 20 º
Tooth form SD
Pitch Diameter (D2) 98.000" | 2489.2mm
Pd or (m) 2
Number of Teeth (z2) 196
Addendum modification coefficient of gear teeth(x2) 0
Face width of gear teeth(b2) 4.750
gear External gear
16313001
