16311001 Kaydon Slewing Bearings
Dimensions: Bore (Inner) Diameter: 54.5"； Outer Diameter: 75.0"； Width (Thickness): 6.5";

16311001
Slewing Bearings of similar size
same inner diameter
same outer diameter
Product Attributes
Specifications
Part Number 16311001
Maximum Allowable Gear Tooth Load (Fz) 36,600
Moment Load Rating (Crm) 2,873,000ft-lbs | 12825.893KN
Bearing Types Slewing Ring Bearing

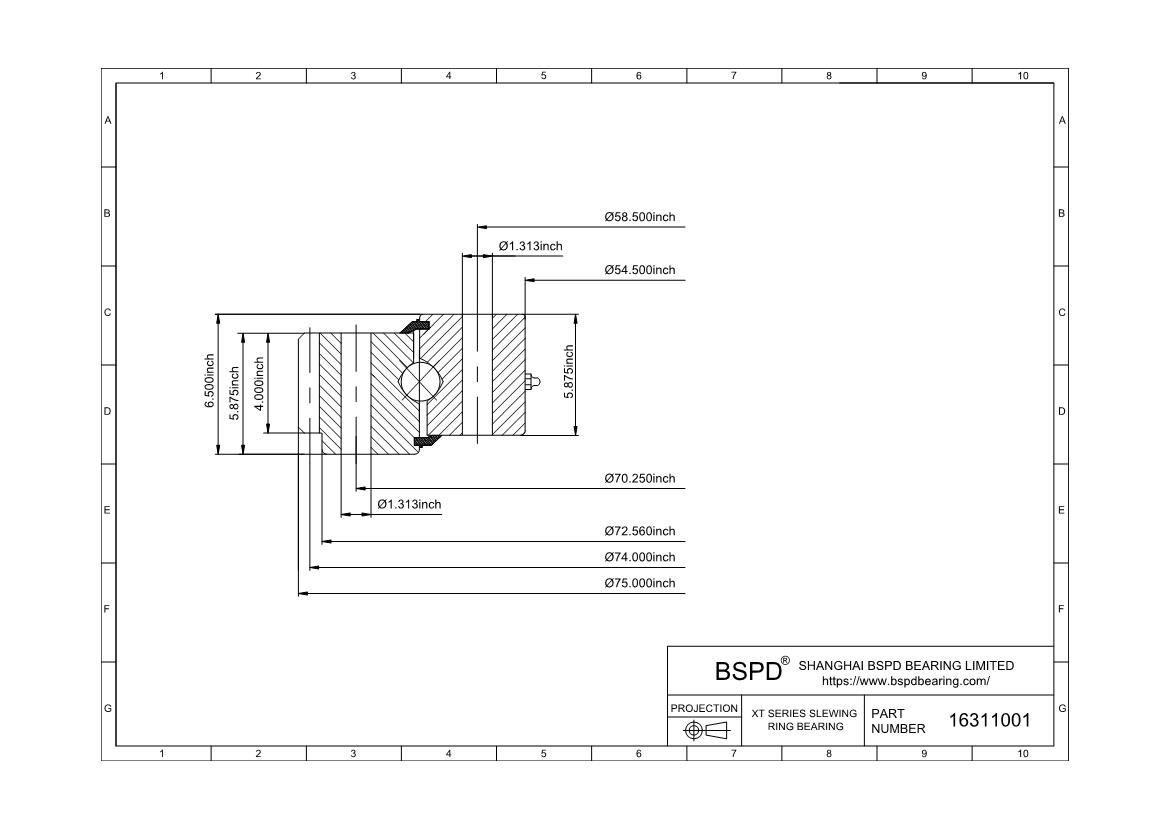

Outline Dimensions and Weight
Outside Diameter of Outer Ring (Do) 75.000" | 1905mm
Inside Diameter of Inner Ring (di) 54.500" | 1384.3mm
Height of overall bearing assembly(H) 6.500" | 165.1mm
Height of outer ring(Ho) 5.875" | 149.23mm
Height of inner ring(Hi) 5.875" | 149.23mm
External diameter on outer ring(Dr) 72.560" | 1843.02mm
Internal diameter on inner ring(dr) -
Approximate Weight (lbs) 2,865lbs | 1299.535KG
Mounting Holes
Bolt Circle in Outer Ring (Lo) 70.250" | 1784.35mm
Number Holes in Outer Ring (no) 10
Size of hole in outer ring(Bo) 1313
Bolt circle in inner ring(Li) 58.500" | 1485.9mm
Number Holes in Inner Ring (ni) 40
Size of hole in inner ring(Bi) 1.313
Gear Data
Pressure Angle of Gear Teeth (α) 20 º
Tooth form FD
Pitch Diameter (D2) 74.000" | 1879.6mm
Pd or (m) 2
Number of Teeth (z2) 148
Addendum modification coefficient of gear teeth(x2) 0
Face width of gear teeth(b2) 4.000
gear External gear
16311001
