16310001 Kaydon Slewing Bearings
Dimensions: Bore (Inner) Diameter: 47.125"； Outer Diameter: 61.3"； Width (Thickness): 5.875";

16310001
Slewing Bearings of similar size
same inner diameter
same outer diameter
Product Attributes
Specifications
Part Number 16310001
Maximum Allowable Gear Tooth Load (Fz) 40,850
Moment Load Rating (Crm) 1,522,000ft-lbs | 6794.643KN
Bearing Types Slewing Ring Bearing

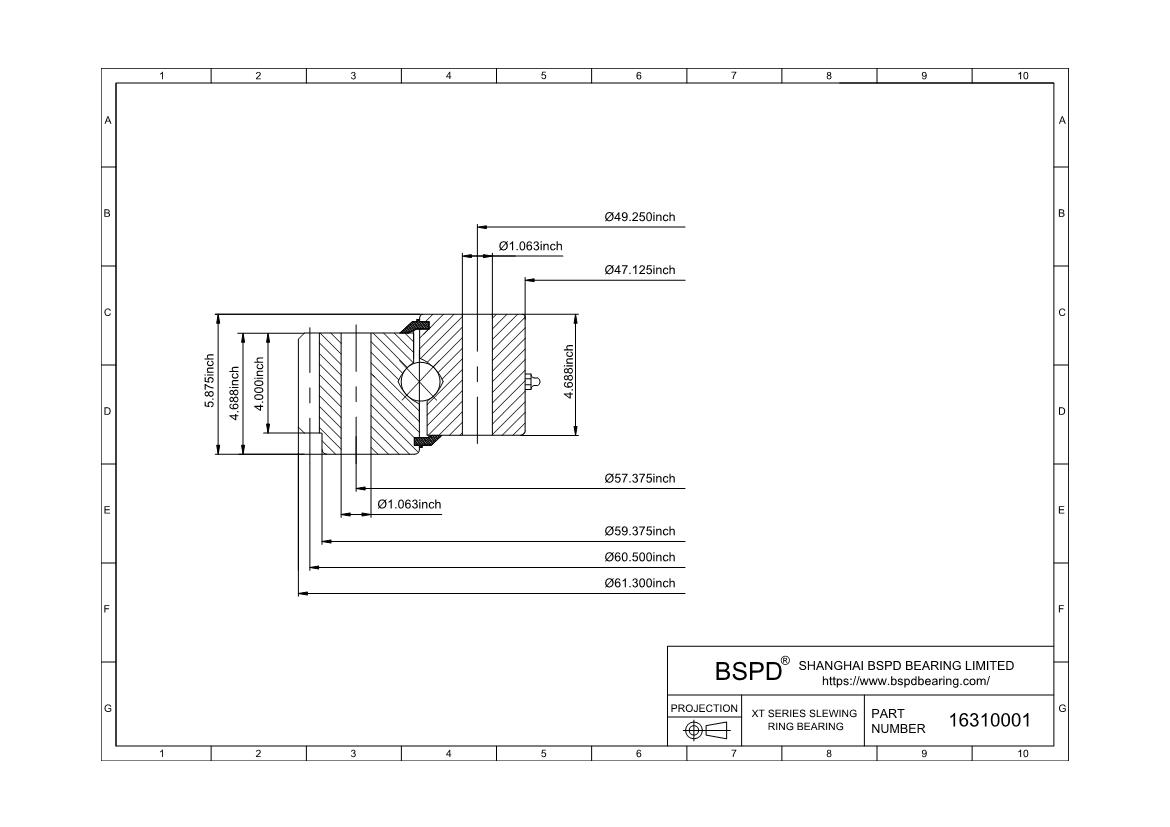

Outline Dimensions and Weight
Outside Diameter of Outer Ring (Do) 61.300" | 1557.02mm
Inside Diameter of Inner Ring (di) 47.125" | 1196.98mm
Height of overall bearing assembly(H) 5.875" | 149.23mm
Height of outer ring(Ho) 4.688" | 119.08mm
Height of inner ring(Hi) 4.688" | 119.08mm
External diameter on outer ring(Dr) 59.375" | 1508.13mm
Internal diameter on inner ring(dr) -
Approximate Weight (lbs) 1,420lbs | 644.098KG
Mounting Holes
Bolt Circle in Outer Ring (Lo) 57.375" | 1457.33mm
Number Holes in Outer Ring (no) 40
Size of hole in outer ring(Bo) 1.063
Bolt circle in inner ring(Li) 49.250" | 1250.95mm
Number Holes in Inner Ring (ni) 11
Size of hole in inner ring(Bi) 1.063
Gear Data
Pressure Angle of Gear Teeth (α) 20 º
Tooth form SD
Pitch Diameter (D2) 60.500" | 1536.7mm
Pd or (m) 2
Number of Teeth (z2) 121
Addendum modification coefficient of gear teeth(x2) 0
Face width of gear teeth(b2) 4.000
gear External gear
16310001
