16305001 Kaydon Slewing Bearings

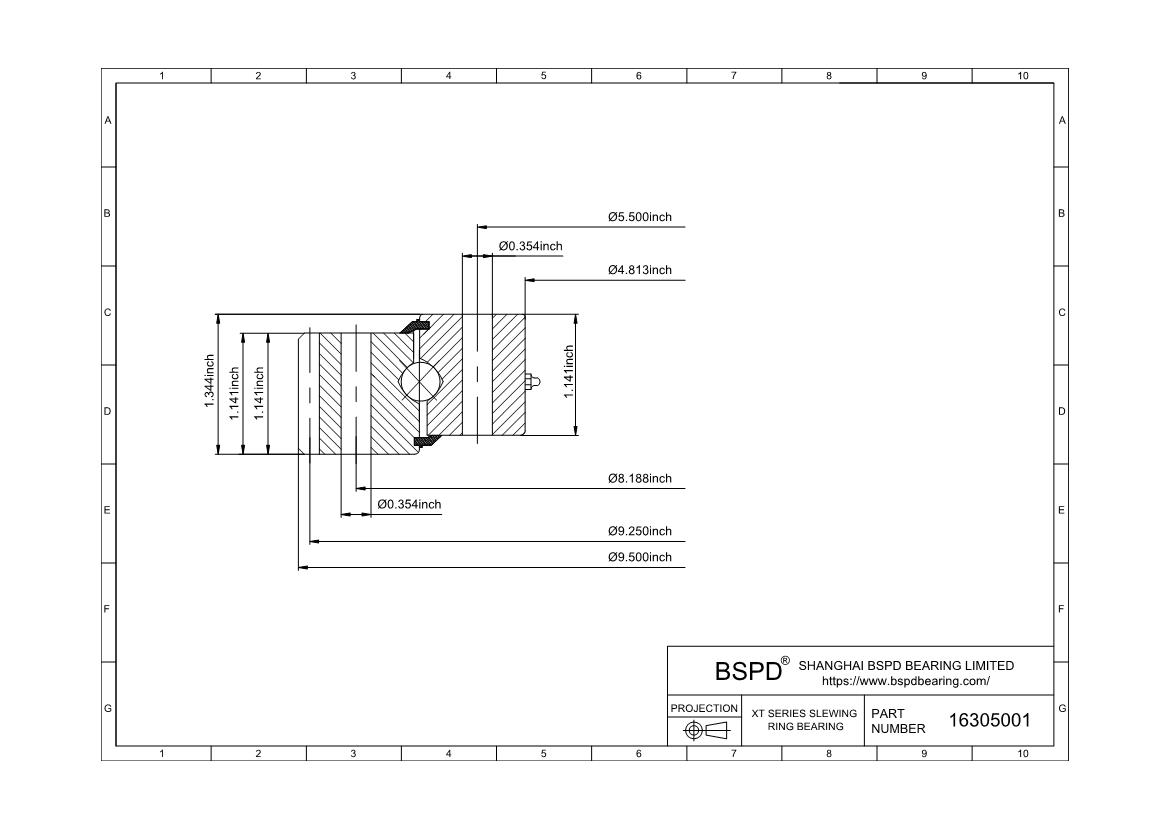

Dimensions: Bore (Inner) Diameter: 4.813"； Outer Diameter: 9.5"； Width (Thickness): 1.344";

16305001
Slewing Bearings of similar size
same inner diameter
same outer diameter
Product Attributes
Specifications
Part Number 16305001
Maximum Allowable Gear Tooth Load (Fz) 2,470
Moment Load Rating (Crm) 6,200ft-lbs | 27.679KN
Bearing Types Slewing Ring Bearing
Outline Dimensions and Weight
Outside Diameter of Outer Ring (Do) 9.500" | 241.3mm
Inside Diameter of Inner Ring (di) 4.813" | 122.25mm
Height of overall bearing assembly(H) 1.344" | 34.14mm
Height of outer ring(Ho) 1.141" | 28.98mm
Height of inner ring(Hi) 1.141" | 28.98mm
External diameter on outer ring(Dr) -
Internal diameter on inner ring(dr) -
Approximate Weight (lbs) 15lbs | 6.804KG
Mounting Holes
Bolt Circle in Outer Ring (Lo) 8.188" | 207.98mm
Number Holes in Outer Ring (no) 12
Size of hole in outer ring(Bo) 0.354
Bolt circle in inner ring(Li) 5.500" | 139.7mm
Number Holes in Inner Ring (ni) 12
Size of hole in inner ring(Bi) 0.354
Gear Data
Pressure Angle of Gear Teeth (α) 20 º
Tooth form FD
Pitch Diameter (D2) 9.250" | 234.95mm
Pd or (m) 8
Number of Teeth (z2) 74
Addendum modification coefficient of gear teeth(x2) 0
Face width of gear teeth(b2) 1.141
gear External gear
16305001
