16304001 Kaydon Slewing Bearings
Dimensions: Bore (Inner) Diameter: 151.7"； Outer Diameter: 168.0"； Width (Thickness): 6";

16304001
Slewing Bearings of similar size
same inner diameter
same outer diameter
Product Attributes
Specifications
Part Number 16304001
Maximum Allowable Gear Tooth Load (Fz) 45,400
Moment Load Rating (Crm) 3,003,000ft-lbs | 13406.25KN
Bearing Types Slewing Ring Bearing

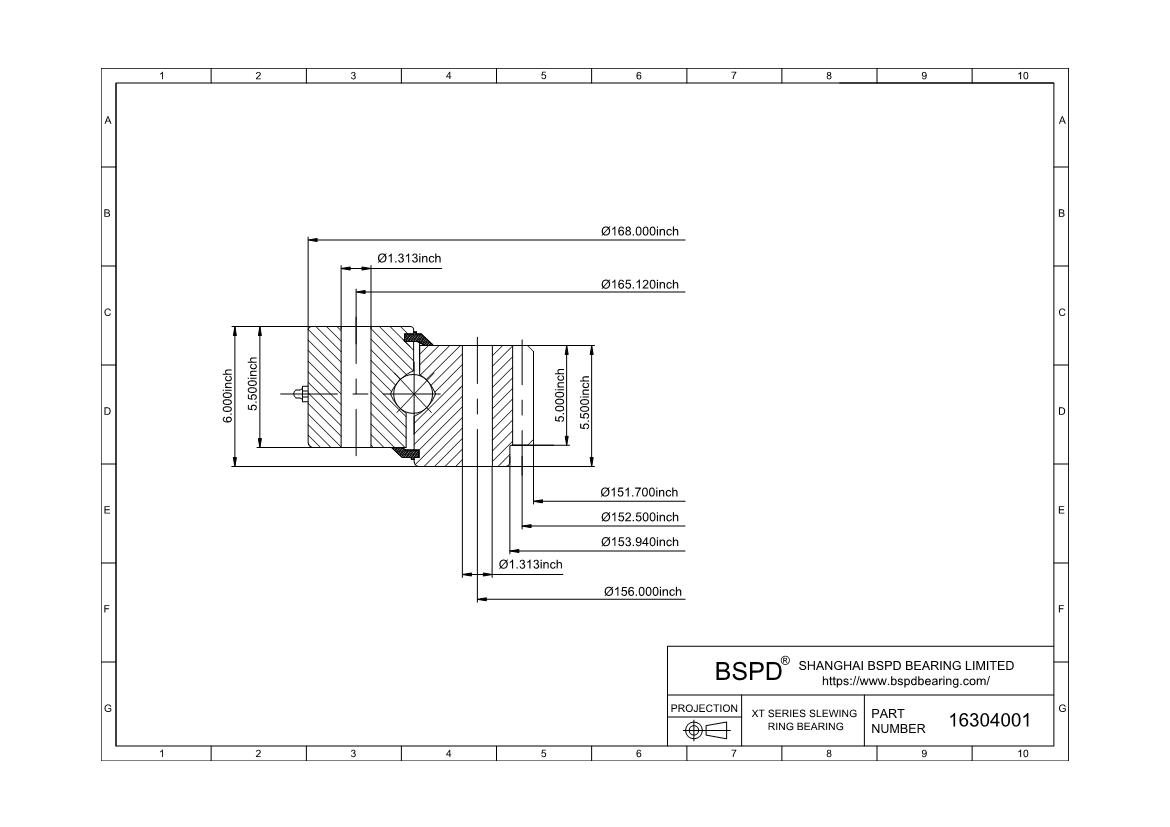

Outline Dimensions and Weight
Outside Diameter of Outer Ring (Do) 168.000" | 4267.2mm
Inside Diameter of Inner Ring (di) 151.700" | 3853.18mm
Height of overall bearing assembly(H) 6.000" | 152.4mm
Height of outer ring(Ho) 5.500" | 139.7mm
Height of inner ring(Hi) 5.500" | 139.7mm
External diameter on outer ring(Dr) -
Internal diameter on inner ring(dr) 153.940" | 3910.08mm
Approximate Weight (lbs) 5,500lbs | 2494.745KG
Mounting Holes
Bolt Circle in Outer Ring (Lo) 165.120" | 4194.05mm
Number Holes in Outer Ring (no) 90
Size of hole in outer ring(Bo) 1.313
Bolt circle in inner ring(Li) 156.000" | 3962.4mm
Number Holes in Inner Ring (ni) 90
Size of hole in inner ring(Bi) 1.313
Gear Data
Pressure Angle of Gear Teeth (α) 20 º
Tooth form SD
Pitch Diameter (D2) 152.500" | 3873.5mm
Pd or (m) 2
Number of Teeth (z2) 305
Addendum modification coefficient of gear teeth(x2) 0
Face width of gear teeth(b2) 5.000
gear Internal gear
