16302001 Kaydon Slewing Bearings
Dimensions: Bore (Inner) Diameter: 93.6"； Outer Diameter: 117.0"； Width (Thickness): 7.125";

16302001
Slewing Bearings of similar size
same inner diameter
same outer diameter
Product Attributes
Specifications
Part Number 16302001
Maximum Allowable Gear Tooth Load (Fz) 69,900
Moment Load Rating (Crm) 6,125,000ft-lbs | 27343.75KN
Bearing Types Slewing Ring Bearing

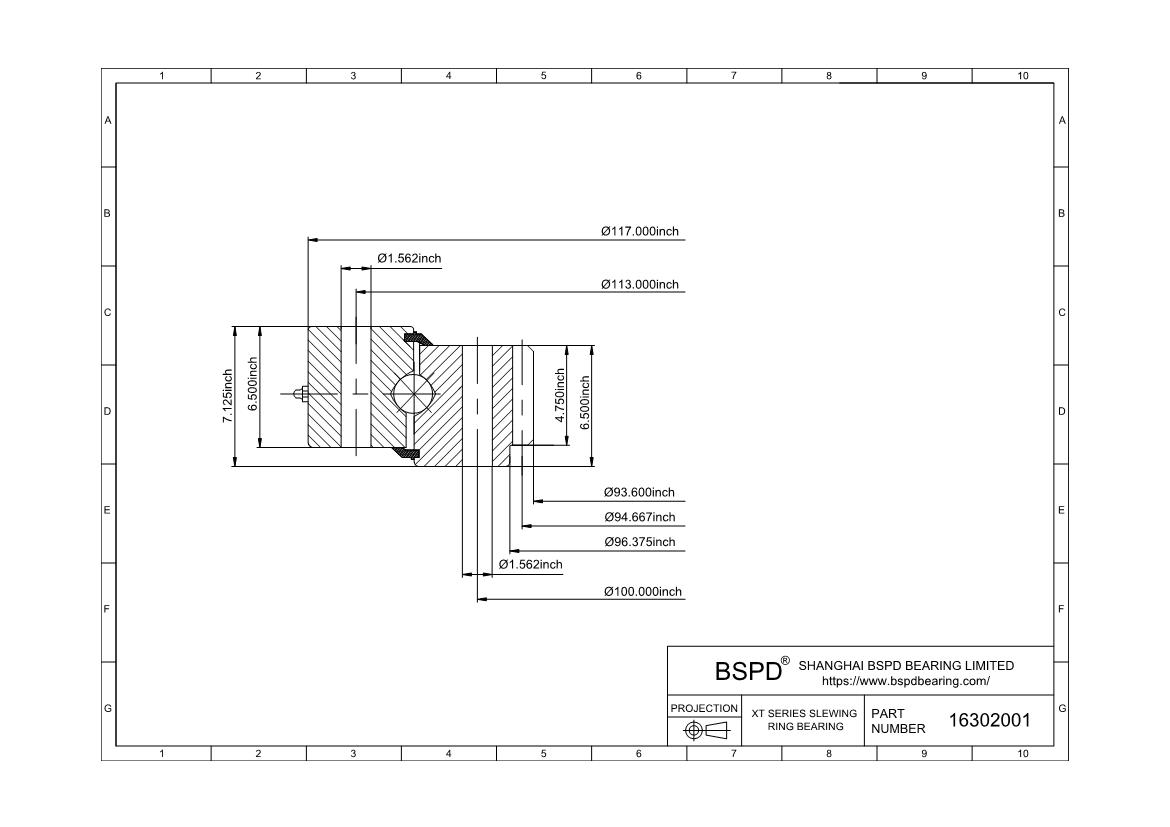

Outline Dimensions and Weight
Outside Diameter of Outer Ring (Do) 117.000" | 2971.8mm
Inside Diameter of Inner Ring (di) 93.600" | 2377.44mm
Height of overall bearing assembly(H) 7.125" | 180.98mm
Height of outer ring(Ho) 6.500" | 165.1mm
Height of inner ring(Hi) 6.500" | 165.1mm
External diameter on outer ring(Dr) -
Internal diameter on inner ring(dr) 96.375" | 2447.93mm
Approximate Weight (lbs) 6,200lbs | 2812.258KG
Mounting Holes
Bolt Circle in Outer Ring (Lo) 113.000" | 2870.2mm
Number Holes in Outer Ring (no) 52
Size of hole in outer ring(Bo) 1.562
Bolt circle in inner ring(Li) 100.000" | 2540mm
Number Holes in Inner Ring (ni) 52
Size of hole in inner ring(Bi) 1.562
Gear Data
Pressure Angle of Gear Teeth (α) 20 º
Tooth form SD
Pitch Diameter (D2) 94.667" | 2404.54mm
Pd or (m) 1.5
Number of Teeth (z2) 142
Addendum modification coefficient of gear teeth(x2) 0
Face width of gear teeth(b2) 4.750
gear Internal gear
16302001
