16296001 Kaydon Slewing Bearings

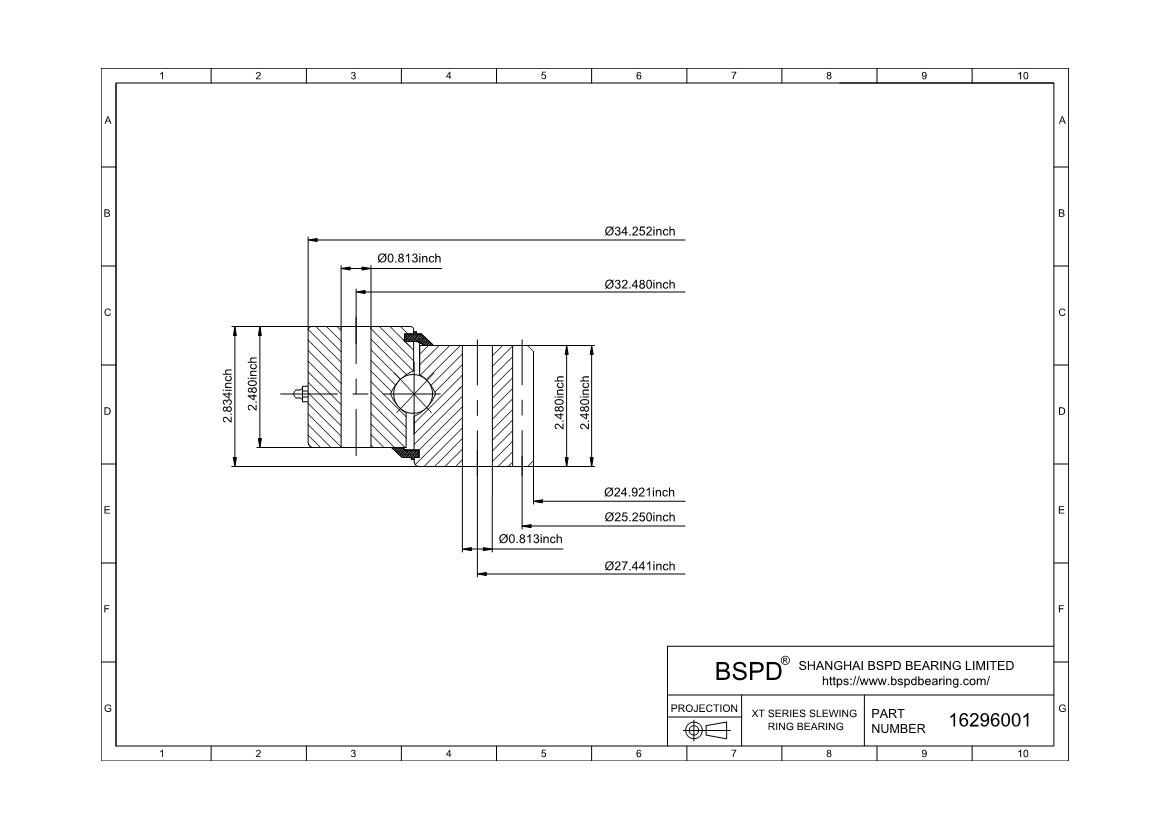

Dimensions: Bore (Inner) Diameter: 24.921"； Outer Diameter: 34.252"； Width (Thickness): 2.834";

16296001
Slewing Bearings of similar size
same inner diameter
same outer diameter
Product Attributes
Specifications
Part Number 16296001
Maximum Allowable Gear Tooth Load (Fz) 12,900
Moment Load Rating (Crm) 343,000ft-lbs | 1531.25KN
Bearing Types Slewing Ring Bearing
Outline Dimensions and Weight
Outside Diameter of Outer Ring (Do) 34.252" | 870mm
Inside Diameter of Inner Ring (di) 24.921" | 632.99mm
Height of overall bearing assembly(H) 2.834" | 71.98mm
Height of outer ring(Ho) 2.480" | 62.99mm
Height of inner ring(Hi) 2.480" | 62.99mm
External diameter on outer ring(Dr) -
Internal diameter on inner ring(dr) -
Approximate Weight (lbs) 270lbs | 122.469KG
Mounting Holes
Bolt Circle in Outer Ring (Lo) 32.480" | 824.99mm
Number Holes in Outer Ring (no) 30
Size of hole in outer ring(Bo) 0.813"
Bolt circle in inner ring(Li) 27.441" | 697mm
Number Holes in Inner Ring (ni) 36
Size of hole in inner ring(Bi) 0.813"
Gear Data
Pressure Angle of Gear Teeth (α) 20 º
Tooth form SD
Pitch Diameter (D2) 25.250" | 641.35mm
Diametral Pitch (Pd) 4
Number of Teeth (z2) 101
Addendum modification coefficient of gear teeth(x2) -.15
Face width of gear teeth(b2) 2.480
gear Internal gear
