16294001 Kaydon Slewing Bearings
Dimensions: Bore (Inner) Diameter: 16.85"； Outer Diameter: 25.75"； Width (Thickness): 2.75";

16294001
Slewing Bearings of similar size
same inner diameter
same outer diameter
Product Attributes
Specifications
Part Number 16294001
Maximum Allowable Gear Tooth Load (Fz) 12,750
Moment Load Rating (Crm) 143,000ft-lbs | 638.393KN
Bearing Types Slewing Ring Bearing

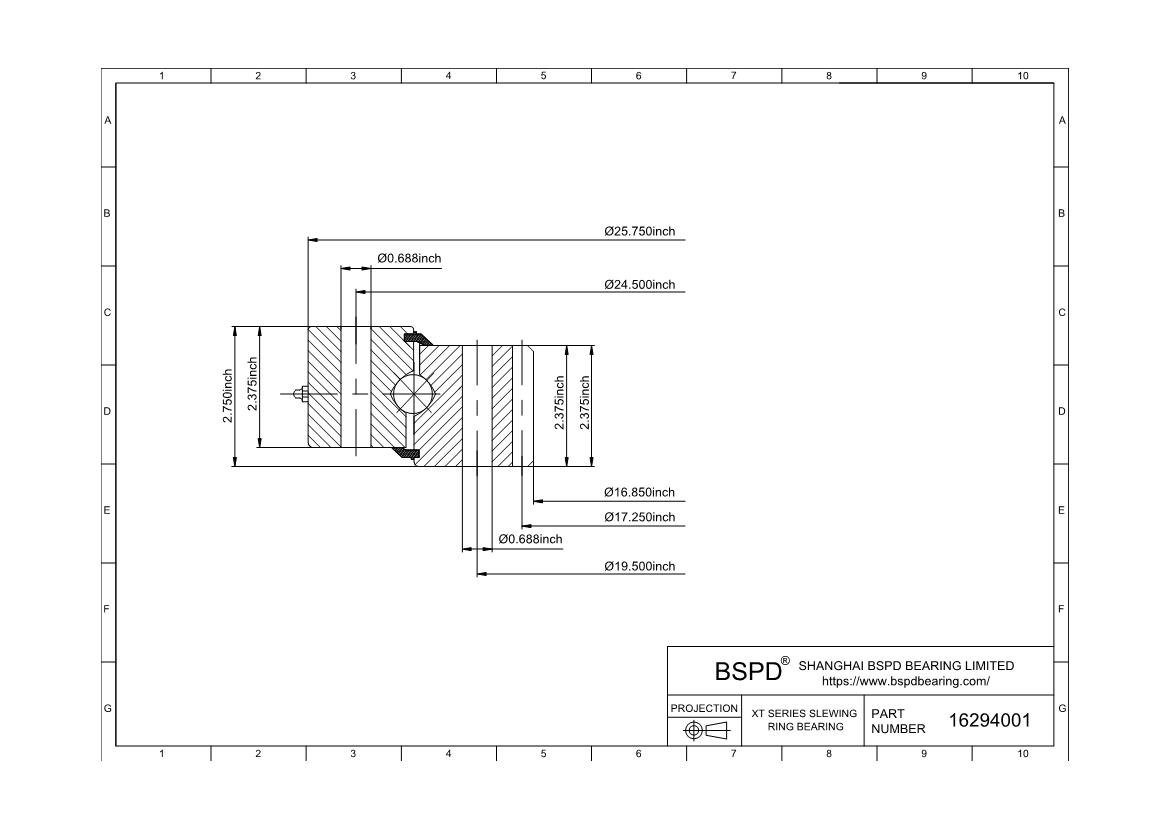

Outline Dimensions and Weight
Outside Diameter of Outer Ring (Do) 25.750" | 654.05mm
Inside Diameter of Inner Ring (di) 16.850" | 427.99mm
Height of overall bearing assembly(H) 2.750" | 69.85mm
Height of outer ring(Ho) 2.375" | 60.33mm
Height of inner ring(Hi) 2.375" | 60.33mm
External diameter on outer ring(Dr) -
Internal diameter on inner ring(dr) -
Approximate Weight (lbs) 180lbs | 81.646KG
Mounting Holes
Bolt Circle in Outer Ring (Lo) 24.500" | 622.3mm
Number Holes in Outer Ring (no) 18
Size of hole in outer ring(Bo) 0.688"
Bolt circle in inner ring(Li) 19.500" | 495.3mm
Number Holes in Inner Ring (ni) 24
Size of hole in inner ring(Bi) 0.688"
Gear Data
Pressure Angle of Gear Teeth (α) 20 º
Tooth form SD
Pitch Diameter (D2) 17.250" | 438.15mm
Diametral Pitch (Pd) 4
Number of Teeth (z2) 69
Addendum modification coefficient of gear teeth(x2) 0
Face width of gear teeth(b2) 2.375
gear Internal gear
