16289001 Kaydon Slewing Bearings
Dimensions: Bore (Inner) Diameter: 52.325"； Outer Diameter: 61.25"； Width (Thickness): 3.54";

16289001
Slewing Bearings of similar size
same inner diameter
same outer diameter
Product Attributes
Specifications
Part Number 16289001
Maximum Allowable Gear Tooth Load (Fz) -
Moment Load Rating (Crm) 348,000ft-lbs | 1553.571KN
Bearing Types Slewing Ring Bearing

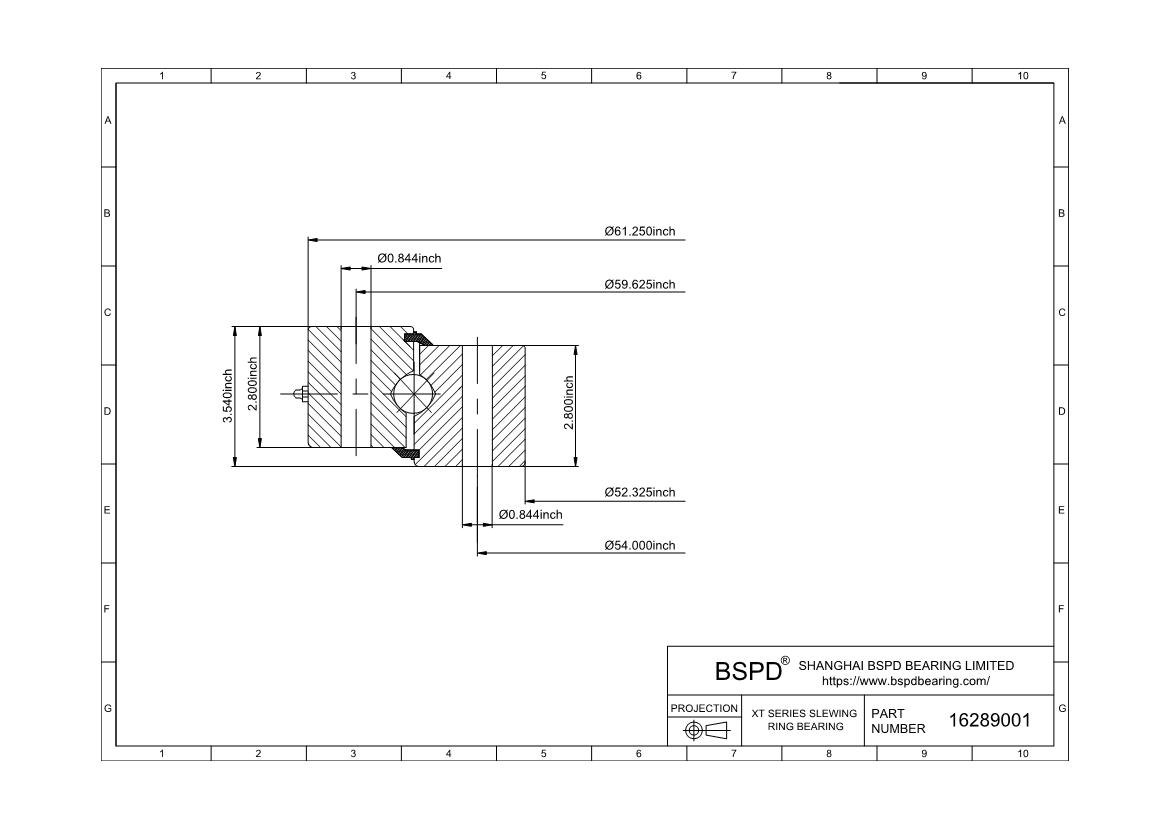

Outline Dimensions and Weight
Outside Diameter of Outer Ring (Do) 61.250" | 1555.75mm
Inside Diameter of Inner Ring (di) 52.325" | 1329.06mm
Height of overall bearing assembly(H) 3.540" | 89.92mm
Height of outer ring(Ho) 2.800" | 71.12mm
Height of inner ring(Hi) 2.800" | 71.12mm
External diameter on outer ring(Dr) -
Internal diameter on inner ring(dr) -
Approximate Weight (lbs) 585lbs | 265.35KG
Mounting Holes
Bolt Circle in Outer Ring (Lo) 59.625" | 1514.48mm
Number Holes in Outer Ring (no) 30
Size of hole in outer ring(Bo) 0.844
Bolt circle in inner ring(Li) 54.000" | 1371.6mm
Number Holes in Inner Ring (ni) .0
Size of hole in inner ring(Bi) 0.844
Gear Data
Pressure Angle of Gear Teeth (α) 20 º
Tooth form -
Pitch Diameter (D2) -
Pd or (m) -
Number of Teeth (z2) -
Addendum modification coefficient of gear teeth(x2) -
Face width of gear teeth(b2) -
gear No gear
16289001
Print PDF
Request a 3D CAD Model if you need special bearings - design custom bearings
