16286001 Kaydon Slewing Bearings
Dimensions: Bore (Inner) Diameter: 114.0"； Outer Diameter: 131.0"； Width (Thickness): 8";

16286001
Slewing Bearings of similar size
same inner diameter
same outer diameter
Product Attributes
Specifications
Part Number 16286001
Maximum Allowable Gear Tooth Load (Fz) -
Moment Load Rating (Crm) 5,666,800ft-lbs | 25298.214KN
Bearing Types Slewing Ring Bearing

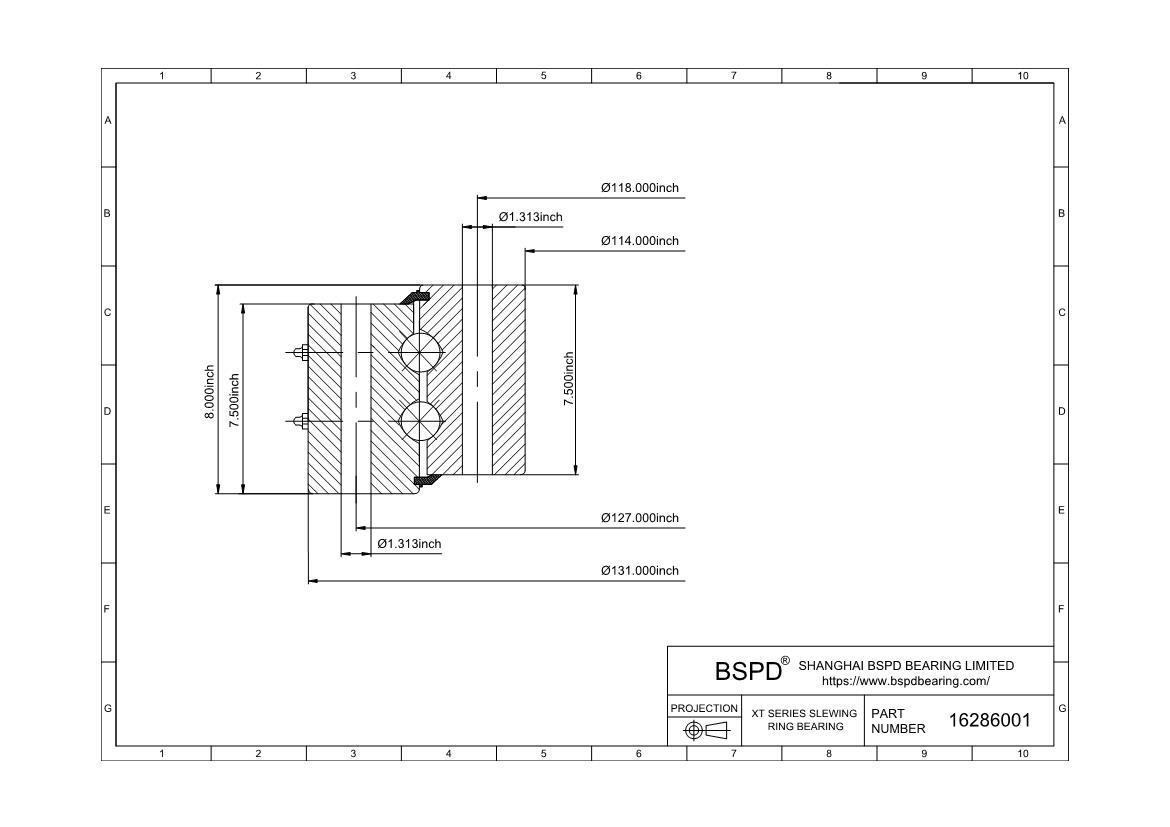

Outline Dimensions and Weight
Outside Diameter of Outer Ring (Do) 131.000" | 3327.4mm
Inside Diameter of Inner Ring (di) 114.000" | 2895.6mm
Height of overall bearing assembly(H) 8.000" | 203.2mm
Height of outer ring(Ho) 7.500" | 190.5mm
Height of inner ring(Hi) 7.500" | 190.5mm
External diameter on outer ring(Dr) -
Internal diameter on inner ring(dr) -
Approximate Weight (lbs) 6,950lbs | 3152.451KG
Mounting Holes
Bolt Circle in Outer Ring (Lo) 127.00" | 3225.8mm
Number Holes in Outer Ring (no) 64.00
Size of hole in outer ring(Bo) 1.313
Bolt circle in inner ring(Li) 118.00" | 2997.2mm
Number Holes in Inner Ring (ni) 64
Size of hole in inner ring(Bi) 1.313
Gear Data
Pressure Angle of Gear Teeth (α) 20 º
Tooth form -
Pitch Diameter of Gear (D2) -
Diametral Pitch (Pd) -
Number of Gear Teeth(z2) -
("+" / "-" sign increases tooth thickness at D2(X2) -
Face Width of Gear Teeth(b2) -
gear No
16286001
