16285001 Kaydon Slewing Bearings
Dimensions: Bore (Inner) Diameter: 59.75"； Outer Diameter: 75.75"； Width (Thickness): 8.75";

16285001
Slewing Bearings of similar size
same inner diameter
same outer diameter
Product Attributes
Specifications
Part Number 16285001
Maximum Allowable Gear Tooth Load (Fz) -
Moment Load Rating (Crm) 2,934,900ft-lbs | 13102.232KN
Bearing Types Slewing Ring Bearing

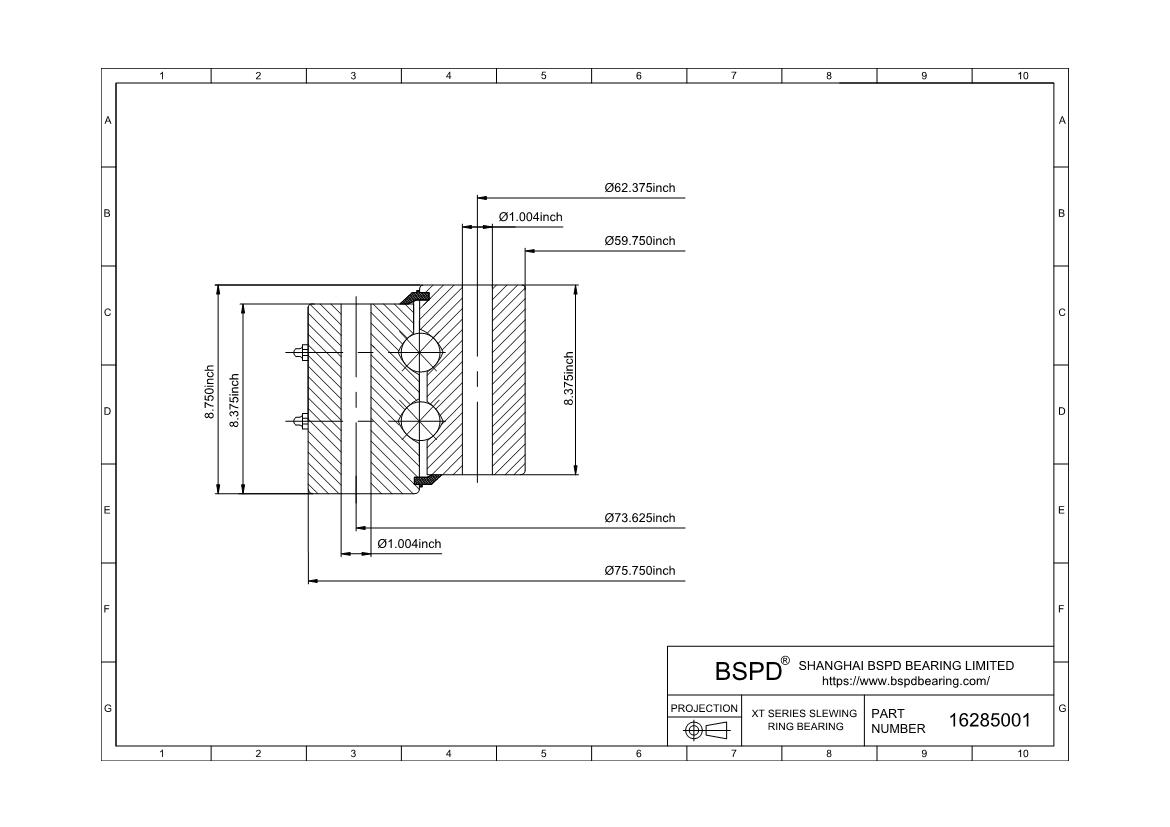

Outline Dimensions and Weight
Outside Diameter of Outer Ring (Do) 75.750" | 1924.05mm
Inside Diameter of Inner Ring (di) 59.750" | 1517.65mm
Height of overall bearing assembly(H) 8.750" | 222.25mm
Height of outer ring(Ho) 8.375" | 212.73mm
Height of inner ring(Hi) 8.375" | 212.73mm
External diameter on outer ring(Dr) -
Internal diameter on inner ring(dr) -
Approximate Weight (lbs) 3,540lbs | 1605.709KG
Mounting Holes
Bolt Circle in Outer Ring (Lo) 73.625" | 1870.08mm
Number Holes in Outer Ring (no) 48
Size of hole in outer ring(Bo) 1.004
Bolt circle in inner ring(Li) 62.375" | 1584.33mm
Number Holes in Inner Ring (ni) 36
Size of hole in inner ring(Bi) 1.250
Gear Data
Pressure Angle of Gear Teeth (α) 20 º
Tooth form -
Pitch Diameter of Gear (D2) -
Diametral Pitch (Pd) -
Number of Gear Teeth(z2) -
("+" / "-" sign increases tooth thickness at D2(X2) -
Face Width of Gear Teeth(b2) -
gear No
16285001
