16281001 Kaydon Slewing Bearings
Dimensions: Bore (Inner) Diameter: 114.941"； Outer Diameter: 141.0"； Width (Thickness): 11.18";

16281001
Slewing Bearings of similar size
same inner diameter
same outer diameter
Product Attributes
Specifications
Part Number 16281001
Maximum Allowable Gear Tooth Load (Fz) 155340lbs | 693.482KN
Moment Load Rating (Crm) 12625000ft-lbs | 56361.607KN
Bearing Types Slewing Ring Bearing

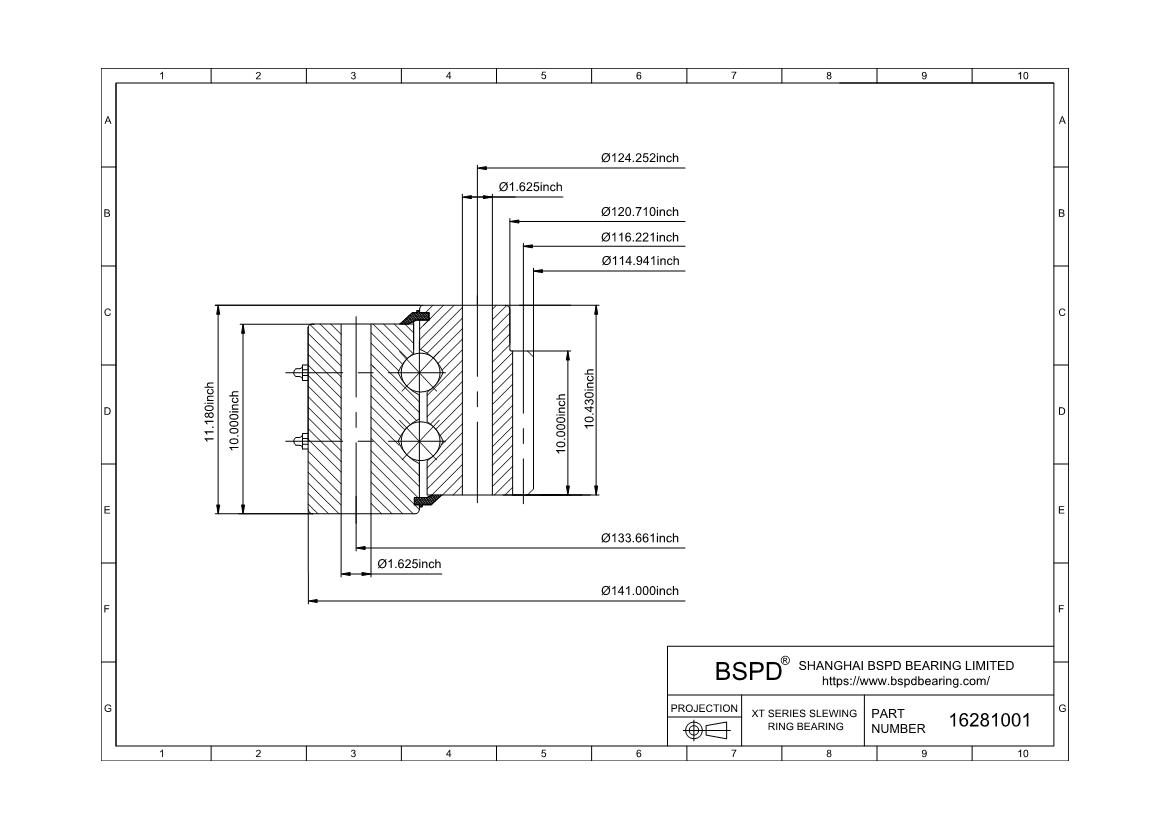

Outline Dimensions and Weight
Outside Diameter of Outer Ring (Do) 141" | 3581.4mm
Inside Diameter of Inner Ring (di) 114.941" | 2919.5mm
Height of overall bearing assembly(H) 11.18" | 283.97mm
Height of outer ring(Ho) 10" | 254mm
Height of inner ring(Hi) 10.43" | 264.92mm
External diameter on outer ring(Dr) -
Internal diameter on inner ring(dr) 120.71" | 3066.03mm
Approximate Weight (lbs) 14850lbs | 6735.812KG
Mounting Holes
Bolt Circle in Outer Ring (Lo) 133.661" | 3394.99mm
Number Holes in Outer Ring (no) 90
Size of hole in outer ring(Bo) 1.625"
Bolt circle in inner ring(Li) 124.252" | 3156mm
Number Holes in Inner Ring (ni) 90
Size of hole in inner ring(Bi) 1.625"
Gear Data
Pressure Angle of Gear Teeth (α) 20 º
Tooth form FD
Pitch Diameter of Gear (D2) 116.221" | 2952.01mm
Gear module（M） 18
Number of Gear Teeth(z2) 165
("+" / "-" sign increases tooth thickness at D2(X2) -0.5
Face Width of Gear Teeth(b2) 10
gear Internal
16281001
