16278001 Kaydon Slewing Bearings
Dimensions: Bore (Inner) Diameter: 77.008"； Outer Diameter: 94.173"； Width (Thickness): 7.126";

16278001
Slewing Bearings of similar size
same inner diameter
same outer diameter
Product Attributes
Specifications
Part Number 16278001
Maximum Allowable Gear Tooth Load (Fz) 40,770lbs | 182.009KN
Moment Load Rating (Crm) 3,896,200ft-lbs | 17393.75KN
Bearing Types Slewing Ring Bearing

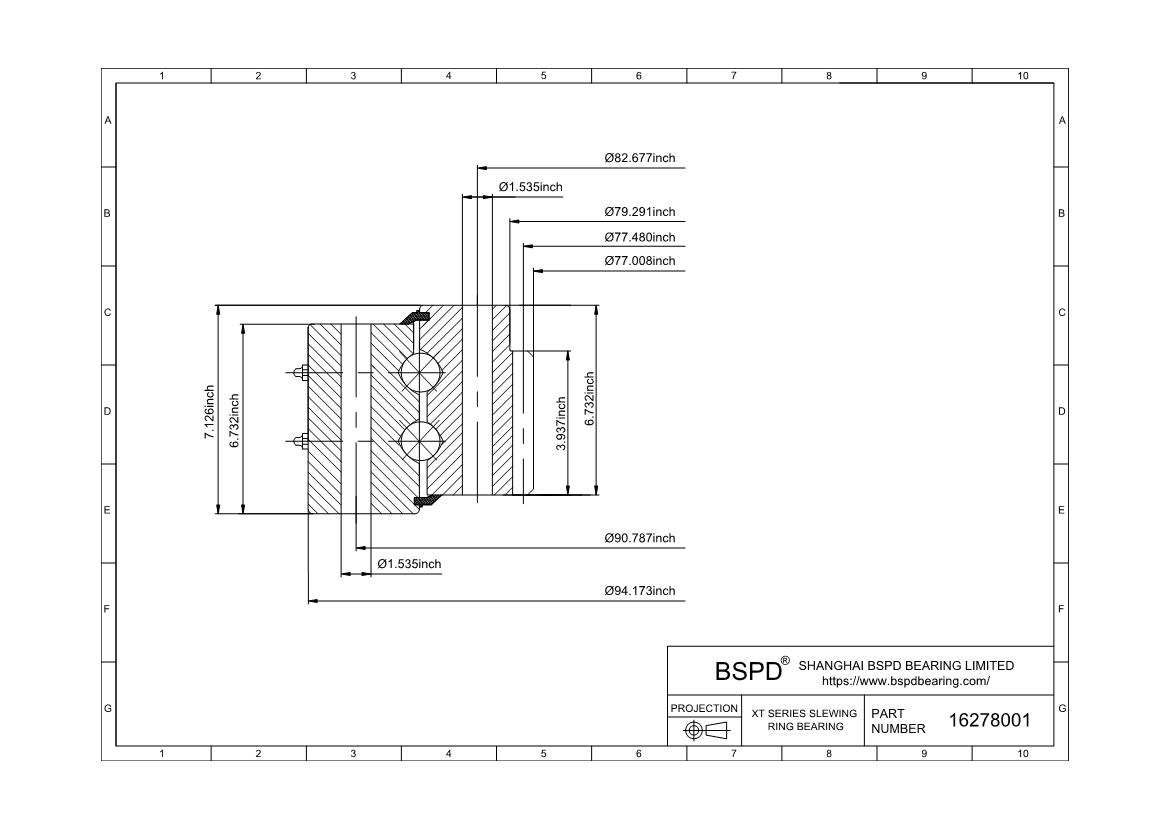

Outline Dimensions and Weight
Outside Diameter of Outer Ring (Do) 94.173" | 2391.99mm
Inside Diameter of Inner Ring (di) 77.008" | 1956mm
Height of overall bearing assembly(H) 7.126" | 181mm
Height of outer ring(Ho) 6.732" | 170.99mm
Height of inner ring(Hi) 6.732" | 170.99mm
External diameter on outer ring(Dr) -
Internal diameter on inner ring(dr) 79.291" | 2013.99mm
Approximate Weight (lbs) 3410lbs | 1546.742KG
Mounting Holes
Bolt Circle in Outer Ring (Lo) 90.787" | 2305.99mm
Number Holes in Outer Ring (no) 60
Size of hole in outer ring(Bo) 1.535"
Bolt circle in inner ring(Li) 82.677" | 2100mm
Number Holes in Inner Ring (ni) 60
Size of hole in inner ring(Bi) 1.535"
Gear Data
Pressure Angle of Gear Teeth (α) 20 º
Tooth form FD
Pitch Diameter of Gear (D2) 77.48" | 1967.99mm
Gear module（M） 12
Number of Gear Teeth(z2) 164
("+" / "-" sign increases tooth thickness at D2(X2) -0.5
Face Width of Gear Teeth(b2) 3.937
gear Internal
16278001
Print PDF
Request a 3D CAD Model if you need special bearings - design custom bearings
