16274001 Kaydon Slewing Bearings
Dimensions: Bore (Inner) Diameter: 43.661"； Outer Diameter: 56.693"； Width (Thickness): 5.472";

16274001
Slewing Bearings of similar size
same inner diameter
same outer diameter
Product Attributes
Specifications
Part Number 16274001
Maximum Allowable Gear Tooth Load (Fz) 48,640lbs | 217.143KN
Moment Load Rating (Crm) 1,225,400ft-lbs | 5470.536KN
Bearing Types Slewing Ring Bearing

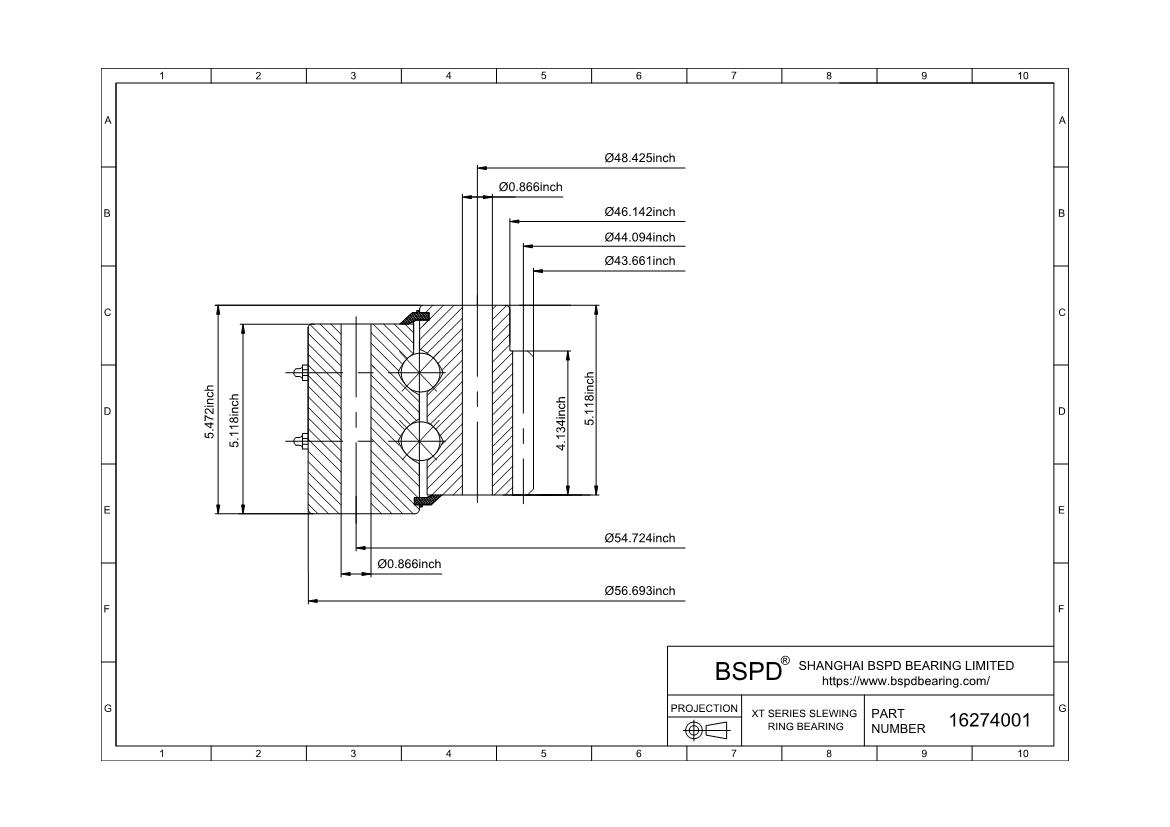

Outline Dimensions and Weight
Outside Diameter of Outer Ring (Do) 56.693" | 1440mm
Inside Diameter of Inner Ring (di) 43.661" | 1108.99mm
Height of overall bearing assembly(H) 5.472" | 138.99mm
Height of outer ring(Ho) 5.118" | 130mm
Height of inner ring(Hi) 5.118" | 130mm
External diameter on outer ring(Dr) -
Internal diameter on inner ring(dr) 46.142" | 1172.01mm
Approximate Weight (lbs) 1,200lbs | 544.308KG
Mounting Holes
Bolt Circle in Outer Ring (Lo) 54.724" | 1389.99mm
Number Holes in Outer Ring (no) 48
Size of hole in outer ring(Bo) 0.866"
Bolt circle in inner ring(Li) 48.425" | 1230mm
Number Holes in Inner Ring (ni) 48
Size of hole in inner ring(Bi) 0.866"
Gear Data
Pressure Angle of Gear Teeth (α) 20 º
Tooth form FD
Pitch Diameter of Gear (D2) 44.094" | 1119.99mm
Gear module（M） 14
Number of Gear Teeth(z2) 80
("+" / "-" sign increases tooth thickness at D2(X2) -.5
Face Width of Gear Teeth(b2) 4.134
gear Internal
16274001
