16272001 Kaydon Slewing Bearings
Dimensions: Bore (Inner) Diameter: 114.0"； Outer Diameter: 143.8"； Width (Thickness): 11.062";

16272001
Slewing Bearings of similar size
same inner diameter
same outer diameter
Product Attributes
Specifications
Part Number 16272001
Maximum Allowable Gear Tooth Load (Fz) 85120lbs | 380KN
Moment Load Rating (Crm) 18293300ft-lbs | 81666.518KN
Bearing Types Slewing Ring Bearing

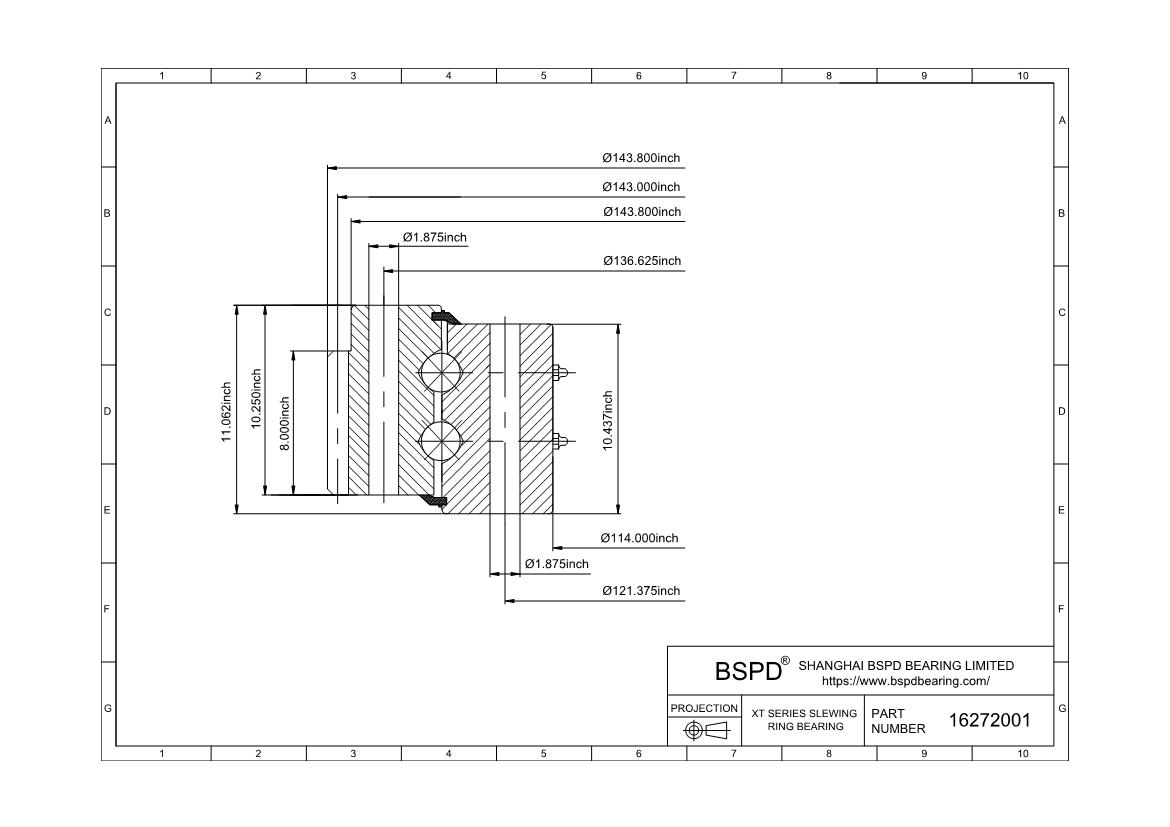

Outline Dimensions and Weight
Outside Diameter of Outer Ring (Do) 143.8" | 3652.52mm
Inside Diameter of Inner Ring (di) 114" | 2895.6mm
Height of overall bearing assembly(H) 11.062" | 280.97mm
Height of outer ring(Ho) 10.25" | 260.35mm
Height of inner ring(Hi) 10.437" | 265.1mm
External diameter on outer ring(Dr) 143.8" | 3652.52mm
Internal diameter on inner ring(dr) -
Approximate Weight (lbs) 14980lbs | 6794.778KG
Mounting Holes
Bolt Circle in Outer Ring (Lo) 136.625" | 3470.28mm
Number Holes in Outer Ring (no) 72
Size of hole in outer ring(Bo) 2.156"
Bolt circle in inner ring(Li) 121.375" | 3082.93mm
Number Holes in Inner Ring (ni) 72
Size of hole in inner ring(Bi) 2.156"
Gear Data
Pressure Angle of Gear Teeth (α) 20 º
Tooth form SD
Pitch Diameter of Gear (D2) 143" | 3632.2mm
Diametral Pitch (Pd) 2
Number of Gear Teeth(z2) 286
("+" / "-" sign increases tooth thickness at D2(X2) 0
Face Width of Gear Teeth(b2) 8
gear External
