16271001 Kaydon Slewing Bearings
Dimensions: Bore (Inner) Diameter: 98.375"； Outer Diameter: 124.8"； Width (Thickness): 11.25";

16271001
Slewing Bearings of similar size
same inner diameter
same outer diameter
Product Attributes
Specifications
Part Number 16271001
Maximum Allowable Gear Tooth Load (Fz) 86780lbs | 387.411KN
Moment Load Rating (Crm) 14639200ft-lbs | 65353.571KN
Bearing Types Slewing Ring Bearing

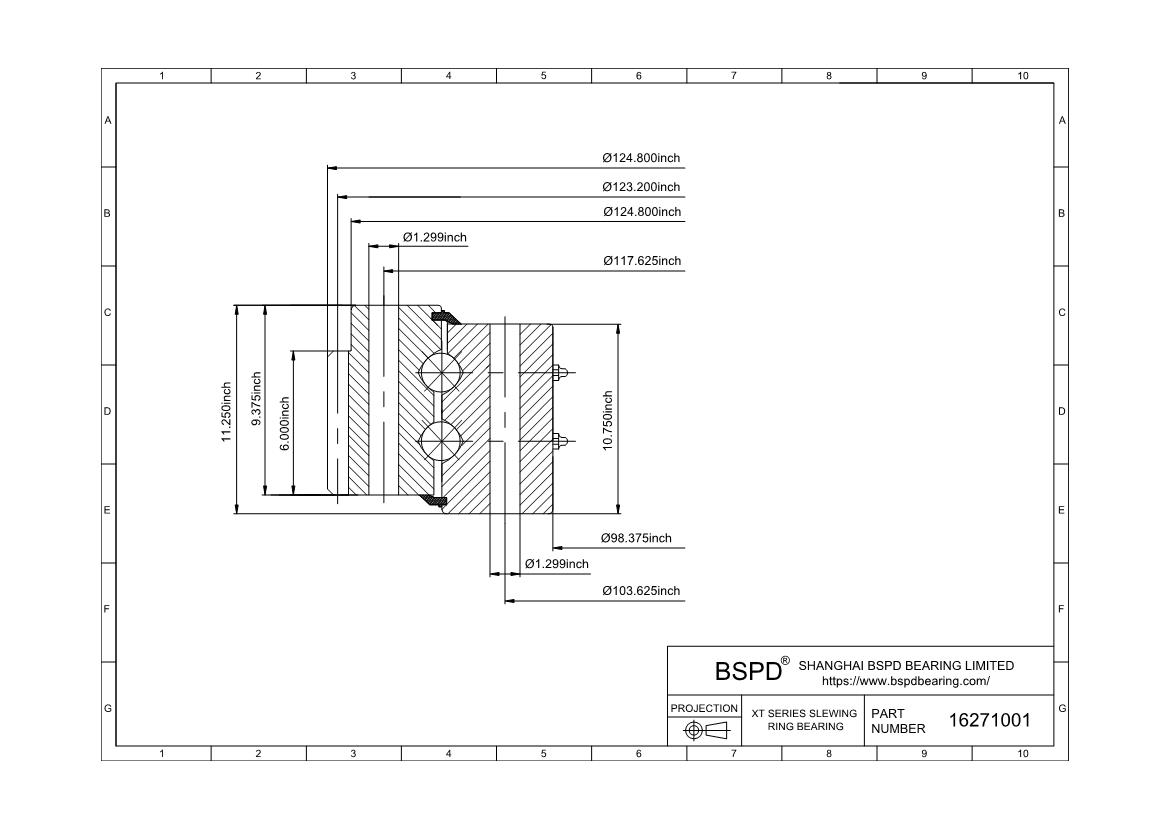

Outline Dimensions and Weight
Outside Diameter of Outer Ring (Do) 124.8" | 3169.92mm
Inside Diameter of Inner Ring (di) 98.375" | 2498.73mm
Height of overall bearing assembly(H) 11.25" | 285.75mm
Height of outer ring(Ho) 9.375" | 238.13mm
Height of inner ring(Hi) 10.75" | 273.05mm
External diameter on outer ring(Dr) 124.8" | 3169.92mm
Internal diameter on inner ring(dr) -
Approximate Weight (lbs) 10500lbs | 4762.695KG
Mounting Holes
Bolt Circle in Outer Ring (Lo) 117.625" | 2987.68mm
Number Holes in Outer Ring (no) 72
Size of hole in outer ring(Bo) 1.875"
Bolt circle in inner ring(Li) 103.625" | 2632.08mm
Number Holes in Inner Ring (ni) 72
Size of hole in inner ring(Bi) 1.875"
Gear Data
Pressure Angle of Gear Teeth (α) 20 º
Tooth form FD
Pitch Diameter of Gear (D2) 123.2" | 3129.28mm
Diametral Pitch (Pd) 1.25
Number of Gear Teeth(z2) 154
("+" / "-" sign increases tooth thickness at D2(X2) 0
Face Width of Gear Teeth(b2) 6
gear External
16271001
