16268001 Kaydon Slewing Bearings
Dimensions: Bore (Inner) Diameter: 71.4"； Outer Diameter: 89.181"； Width (Thickness): 7.09";

16268001
Slewing Bearings of similar size
same inner diameter
same outer diameter
Product Attributes
Specifications
Part Number 16268001
Maximum Allowable Gear Tooth Load (Fz) 53760lbs | 240KN
Moment Load Rating (Crm) 4793200ft-lbs | 21398.214KN
Bearing Types Slewing Ring Bearing

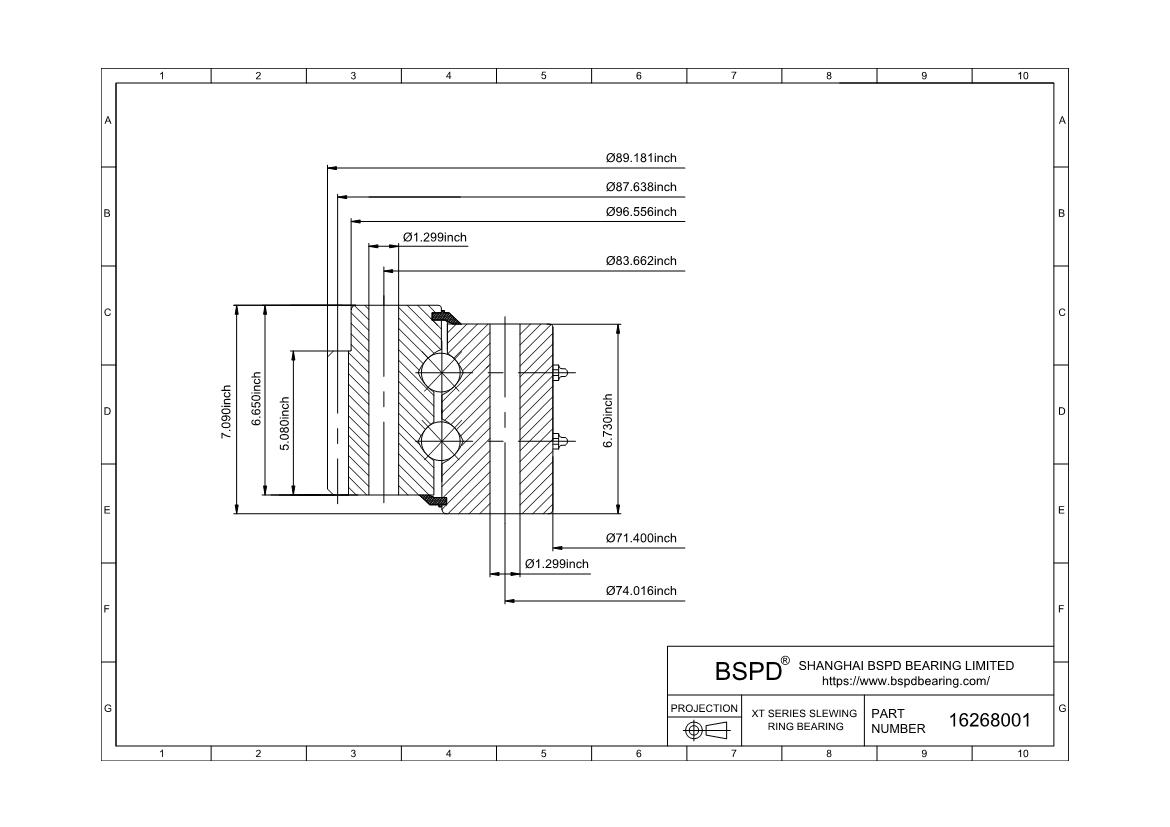

Outline Dimensions and Weight
Outside Diameter of Outer Ring (Do) 89.181" | 2265.2mm
Inside Diameter of Inner Ring (di) 71.4" | 1813.56mm
Height of overall bearing assembly(H) 7.09" | 180.09mm
Height of outer ring(Ho) 6.65" | 168.91mm
Height of inner ring(Hi) 6.73" | 170.94mm
External diameter on outer ring(Dr) 96.566" | 2452.78mm
Internal diameter on inner ring(dr) -
Approximate Weight (lbs) 3360lbs | 1524.062KG
Mounting Holes
Bolt Circle in Outer Ring (Lo) 83.622" | 2124mm
Number Holes in Outer Ring (no) 60
Size of hole in outer ring(Bo) 1.299"
Bolt circle in inner ring(Li) 74.016" | 1880.01mm
Number Holes in Inner Ring (ni) 60
Size of hole in inner ring(Bi) 1.299"
Gear Data
Pressure Angle of Gear Teeth (α) 20 º
Tooth form FD
Pitch Diameter of Gear (D2) 87.638" | 2226.01mm
Gear module（M） 14
Number of Gear Teeth(z2) 159
("+" / "-" sign increases tooth thickness at D2(X2) 0.5
Face Width of Gear Teeth(b2) 5.08
gear External
16268001
Print PDF
Request a 3D CAD Model if you need special bearings - design custom bearings
