16265001 Kaydon Slewing Bearings
Dimensions: Bore (Inner) Diameter: 41.37"； Outer Diameter: 56.24"； Width (Thickness): 7.125";

16265001
Slewing Bearings of similar size
same inner diameter
same outer diameter
Product Attributes
Specifications
Part Number 16265001
Maximum Allowable Gear Tooth Load (Fz) 30480lbs | 136.071KN
Moment Load Rating (Crm) 2132100ft-lbs | 9518.304KN
Bearing Types Slewing Ring Bearing

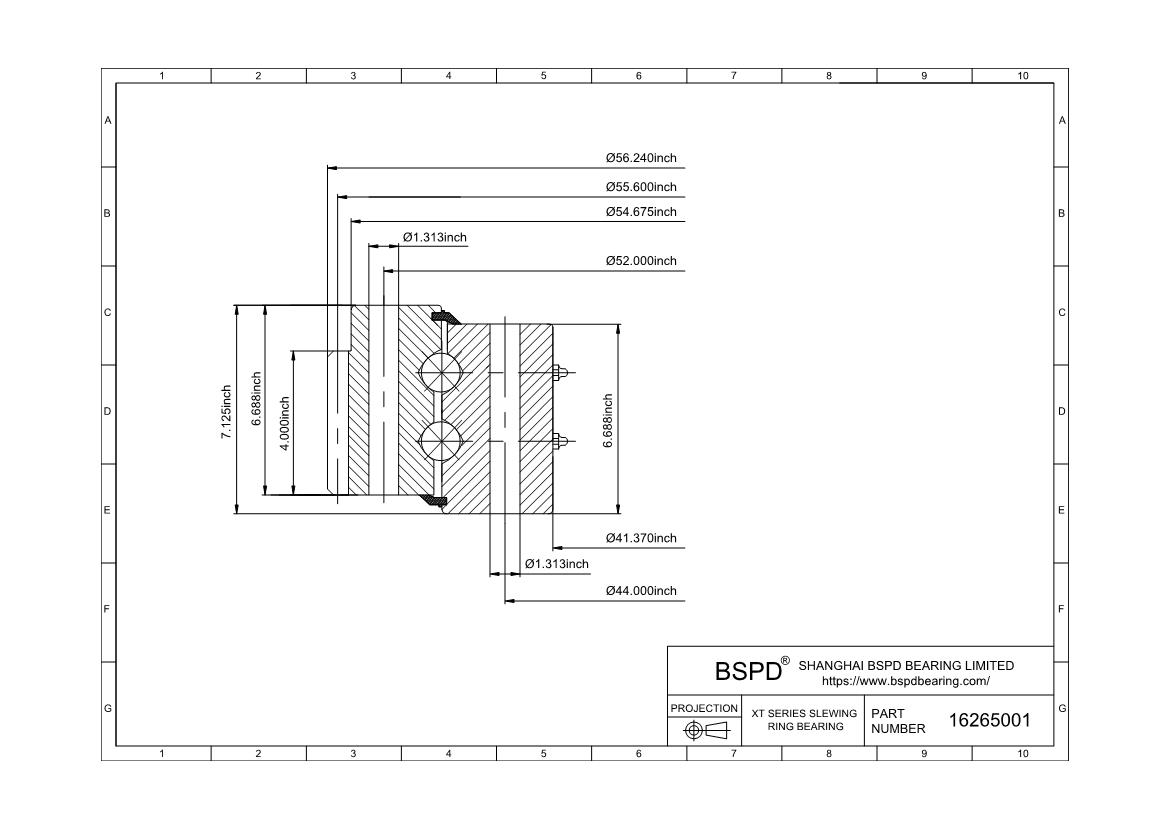

Outline Dimensions and Weight
Outside Diameter of Outer Ring (Do) 56.24" | 1428.5mm
Inside Diameter of Inner Ring (di) 41.37" | 1050.8mm
Height of overall bearing assembly(H) 7.125" | 180.98mm
Height of outer ring(Ho) 6.688" | 169.88mm
Height of inner ring(Hi) 6.688" | 169.88mm
External diameter on outer ring(Dr) 54.675" | 1388.75mm
Internal diameter on inner ring(dr) -
Approximate Weight (lbs) 1730lbs | 784.711KG
Mounting Holes
Bolt Circle in Outer Ring (Lo) 52" | 1320.8mm
Number Holes in Outer Ring (no) 30
Size of hole in outer ring(Bo) 1.313"
Bolt circle in inner ring(Li) 44" | 1117.6mm
Number Holes in Inner Ring (ni) 30
Size of hole in inner ring(Bi) 1.313"
Gear Data
Pressure Angle of Gear Teeth (α) 20 º
Tooth form SD
Pitch Diameter of Gear (D2) 55.6" | 1412.24mm
Diametral Pitch (Pd) 2.5
Number of Gear Teeth(z2) 139
("+" / "-" sign increases tooth thickness at D2(X2) 0
Face Width of Gear Teeth(b2) 4
gear External
16265001
Print PDF
Request a 3D CAD Model if you need special bearings - design custom bearings
